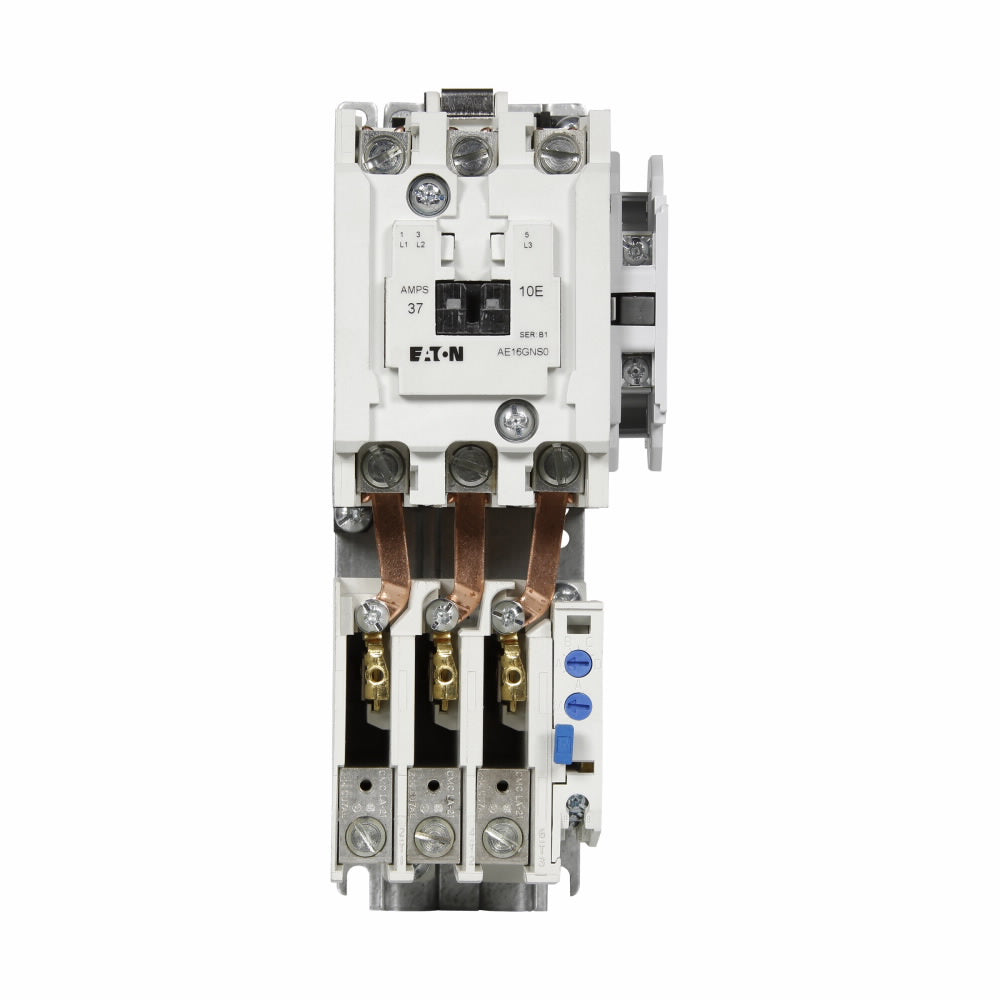

Eaton AE16GNS0AB Motor Starter 120V

Product Description

The EATON AE16GNS0AB belongs to the Freedom Series and is a type AE16 motor control device. This 3-phase device is suitable for both 1 and 3-phase applications, with a 37A rating at 600V. The motor control device supports various motor ratings across different voltages. It is categorized under the IEC size G and is suitable for use with Freedom Series motor control systems.

• 3-phase device suitable for 1 and 3-phase applications
• Features a maximum UL AC-3 ampere rating of 37A
• Equipped with an N/O side-mounted auxiliary contact

Product Highlights

The EATON AE16GNS0AB is a Freedom Series motor control device with a 37A rating at 600V, suitable for various motor ratings and equipped with an N/O side-mounted auxiliary contact.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16GNS0AB
• Country of Origin: Dominican Republic

Technical Specifications

• Part Number: AE16GNS0AB
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Pole: 3
• Amp: 37
• Volt: 120
• Phase: 3
• Category: Starters
• Type: AE16
• Frequency Rating: 50/60 Hz
• Action: Non-Reversing
• Enclosure Type: NEMA 2
• Amperage Rating: 37 A
• Overload Relay: C306 Bimetal
• Voltage Rating: 600 VAC
• Number Of Poles: 3
• Series: Freedom
• Coil Voltage: 120 VAC
• Construction Standard: I.E.C. 600V AC
• Size: IEC Size G
• UL Cont. Amps: 37A
• Hp 1-Phase 115V: 3 Hp
• Hp 1-Phase 230V: 5 Hp
• Hp 3-Phase 200V: 7.5 Hp
• Hp 3-Phase 230V: 10 Hp
• Hp 3-Phase 460V: 25 Hp
• Hp 3-Phase 575V: 30 Hp
• Motor FLA: Refer to Heater
• Auxiliary Contacts: (1) NO Side Mounted
• Brand: Eaton - Cutler Hammer
