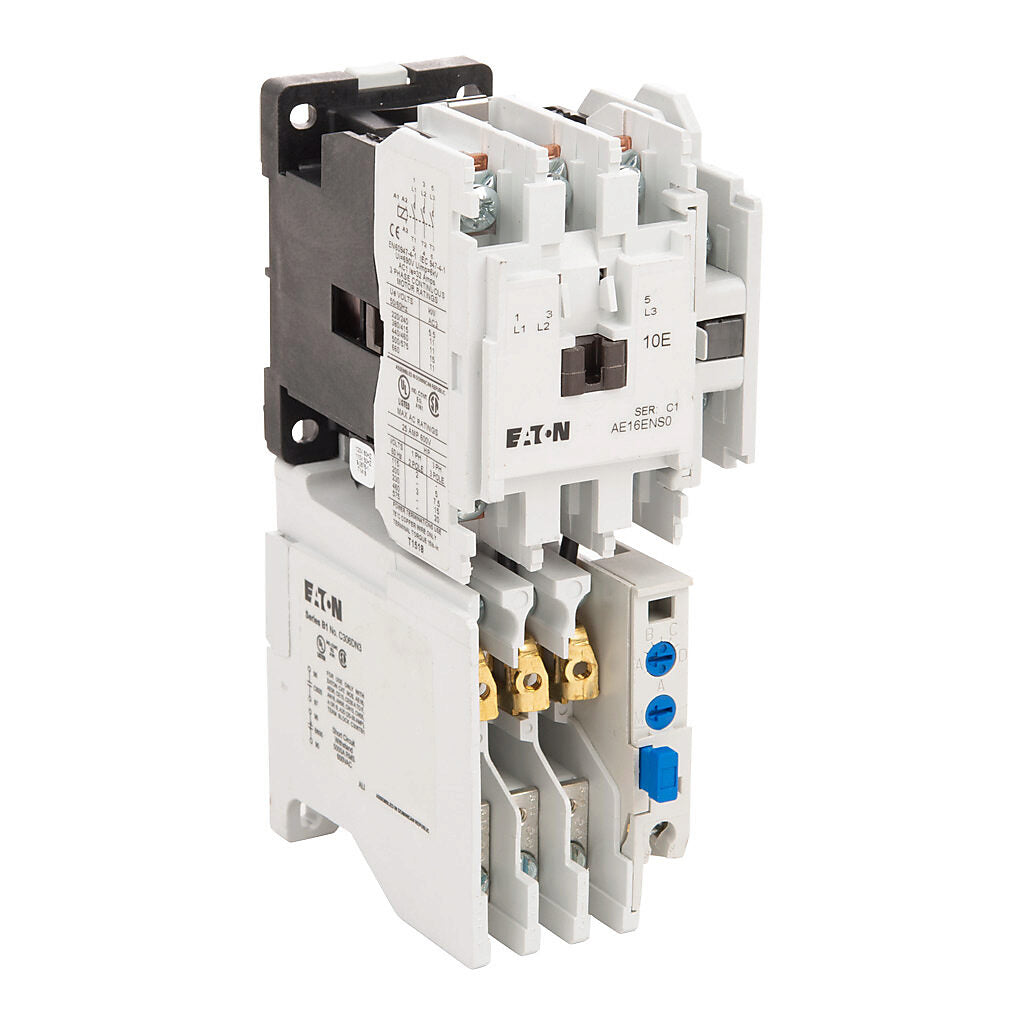

Eaton AE16ENS0AC Motor Starter 25A

Product Description

The EATON AE16ENS0AC is a 3-pole, 25A motor starter from the Cutler Hammer Freedom Series, designed for motor control systems. It supports a maximum voltage of 600V and features an AC coil operating at 110/120V at 50/60Hz. It is a non-reversing, open-type starter, IEC size A, with an interchangeable heater overload relay and a N/O side-mounted auxiliary contact.

Product Highlights

The EATON AE16ENS0AC motor starter is ideal for various motor control applications. It ensures reliable performance and protection for your motor systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AE16ENS0AC
• Country of Origin: Dominican Republic

Technical Specifications

• Part Number: AE16ENS0AC
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Pole: 3
• Amp: 25
• Volt: 600
• Coil Voltage Min: 110
• Coil Voltage Max: 120
• Phase: 3
• Category: Motor Starter / 3-Pole
• Type: AE16
• Construction Standard: I.E.C. 600V AC
• Size: IEC Size E
• UL Cont. Amps: 25A
• Coil Voltage: 120/110V 60/50Hz
• Hp 1-Phase 115V: 2 Hp
• Hp 1-Phase 230V: 3 Hp
• Hp 3-Phase 200V: 5 Hp
• Hp 3-Phase 230V: 7.5 Hp
• Hp 3-Phase 460V: 15 Hp
• Hp 3-Phase 575V: 20 Hp
• Enclosure Type: Open
• Overload Relay: Interchangeable Heater
• Motor FLA: Refer to Heater
• Auxiliary Contacts: (1) NO Side Mounted
• Brand: Eaton
• Series: Freedom
• Mounting Type: Surface
• Approval: UL, CSA, IEC
• Nema Rating: 1
• For Use With: Freedom Series Motor Control Systems
• Nema Size: 1
• Action: Non-Reversing
• Contact Configuration: 1NO
• Coil Volts: 110/120VAC at 50/60Hz
