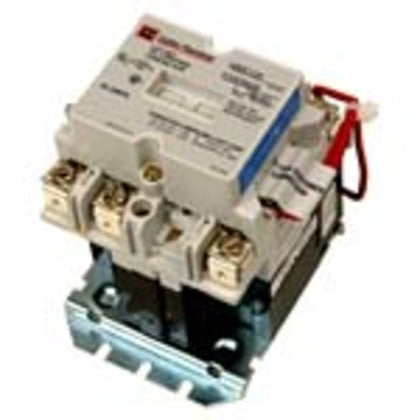

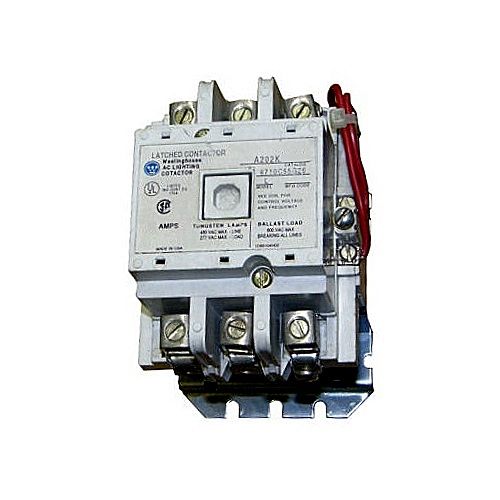

Eaton A202K1CAM magnetically held lighting contactor 30 A

Product Description

The Eaton A202K1CAM is a magnetically held lighting contactor. Rated at 30 A, this 3-pole contactor is magnetically latched and part of the A202 Series. It is designed for lighting contactor applications and operates at 120 V at 60 Hz. It is suitable for A202 magnetically latched motor control systems.

• 30 Amp
• 3 Pole
• 600 V

Product Highlights

The Eaton A202K1CAM contactor is ideal for local or remote switching of tungsten, fluorescent, or mercury arc lamp loads.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: A202K1CAM
• Country of Origin: USA

Technical Specifications

• Catalog Number: A202K1CAM
• UPC: 786678233734
• Product Length/Depth: 3.31 in
• Product Height: 4.38 in
• Product Width: 3.31 in
• Product Type: Magnetically held lighting contactor
• Type: Magnetically held lighting contactor
• Part Number: A202K1CAM
• Manufacturer: Eaton Cutler-Hammer
• Family: A202
• Pole: 3
• Amp: 30
• Volt: 600
• Phase: 3
• Category: Contactors
• Amperage: 30
• Voltage: 600VAC
• Voltage Type: AC
• Poles: 3
• Frame Type: A202
• Brand: Eaton
• Number of Poles: 3
• Voltage Rating: 120 V
• Series: A202
• Mounting Type: Panel
• Approval: UL, CSA
• Protection: Magnetic
• Terminal Connection: Box Lug
• For Use With: A202 Magnetically Latched Motor Control Systems
• Nema Size: 1
• Coil Volts: 110VAC at 50Hz, 120VAC at 60Hz
• Mpn: A202K1CAM
• Upc: 786678233734
• Volts AC Control: 120
• Mounting: Surface
• Amps: 30
• Volts AC: 600
