Product Description

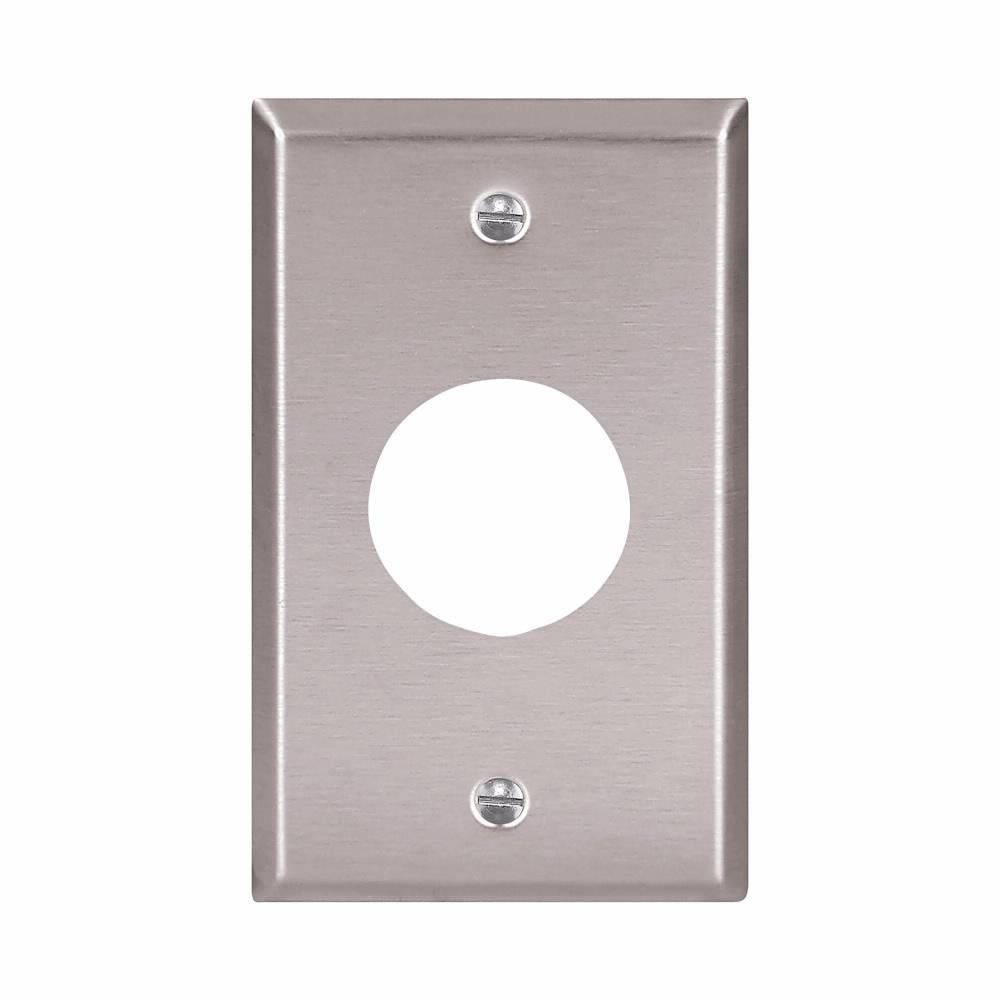

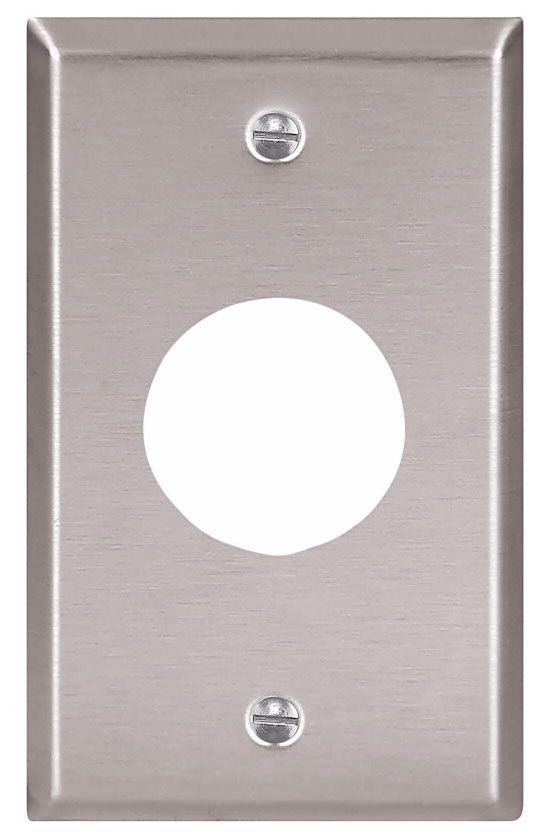

The Eaton Wiring 93091-BOX is a 1.4" 1 Gang SS Receptacle Wall Plate. Constructed from 302/304 stainless steel with a brushed satin finish, this standard-sized wallplate offers non-corrosive and non-magnetic properties. It is suitable for single receptacle, industrial, institutional, and commercial applications.
- Constructed from 302/304 stainless steel for durability.
- Features a brushed satin finish that resists fingerprints.
- Designed for single receptacle configurations.
Product Highlights
This Eaton wall plate is ideal for environments needing protection from corrosive elements. It includes matching stainless steel mounting screws and is suitable for a range of applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 93091-BOX
-
Country of Origin: United States
Technical Specifications
-
Finish: Brushed Satin
-
Material: Stainless Steel
-
Finish Type: Brushed Satin
-
Installation Type: Screw-In
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Wall Plate
-
Construction: Stamped/Superior Non-Magnetic Corrosion-Resistant
-
Cutout: (1) 1.406 in Dia Single Receptacle
-
Mounting: Threaded
-
Number of Ports: 1
-
Series: 93000
-
Thickness: 0.032 in
-
Type: Standard
-
Number of Gangs: 1
-
Size: 2-3/4 in W x 4-1/2 in H
-
Diameter: 1.41 in
-
Length: 4-1/2 in
-
Width: 2-3/4 in
-
Temperature Range: -40 to 70 deg c
-
Application: For single receptacle, industrial, institutional, and commercial applications
-
Gangs: 1
-
MPN: 93091-BOX
-
Product Length/Depth: 0.032 in
-
Product Height: 4.5 in
-
Product Width: 2.75 in
-
Product Weight: 0.1 lb
-
Compliances: RoHS Compliant, NAFTA
-
Certifications: UL Listed, CSA Certified
-
Special features: 1.406" hole
