Eaton 7701K3 General Purpose AC Rated Toggle Switch 0.75/1 Hp (0.469 in Bushing) Replacement MPN N/A

EATON
Brand: EATON
SKU: 7701K3
Availability: In Stock

Ships same day if ordered by 12 pm
$23.40
$23.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

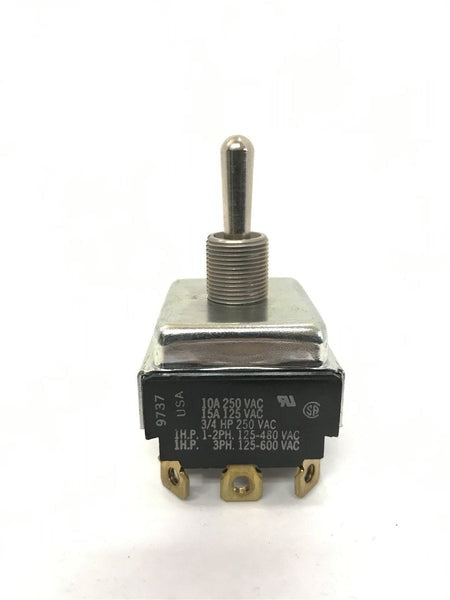

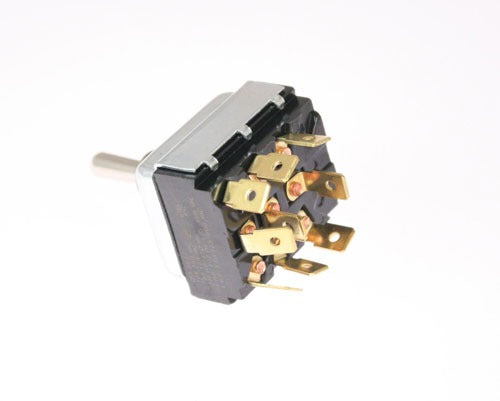

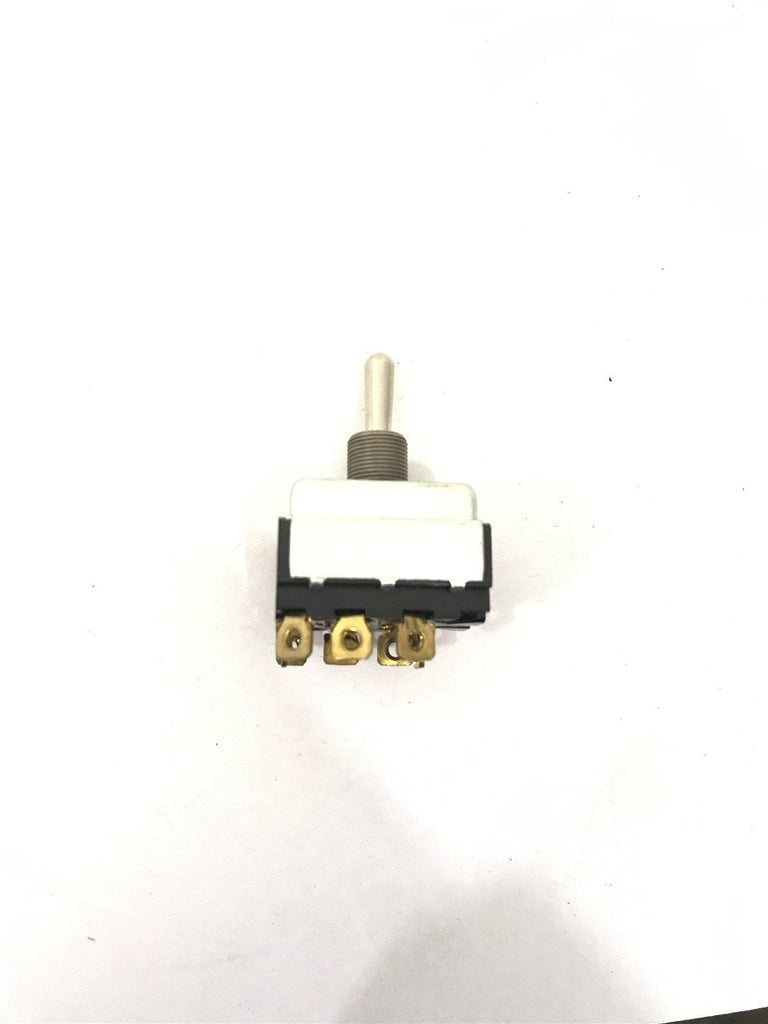

The Eaton 7701K3 is a general purpose AC-rated toggle switch featuring a three-pole, double-throw ON-OFF-ON configuration with a 0.469 in bushing and 0.688 in lever. It is rated 15 A at 125 VAC and 10 A at 250 VAC, with motor ratings of 0.75 hp at 250 V and 1 hp at 125–600 V. Termination is via 0.250 in spade terminals and the switch is CSA certified and UL recognized.

  • Three-pole, double-throw (3PDT) ON-OFF-ON action; circuit number F
  • Electrical ratings: 15 A @ 125 VAC; 10 A @ 250 VAC; motor ratings 0.75 hp @ 250 V and 1 hp @ 125–600 V

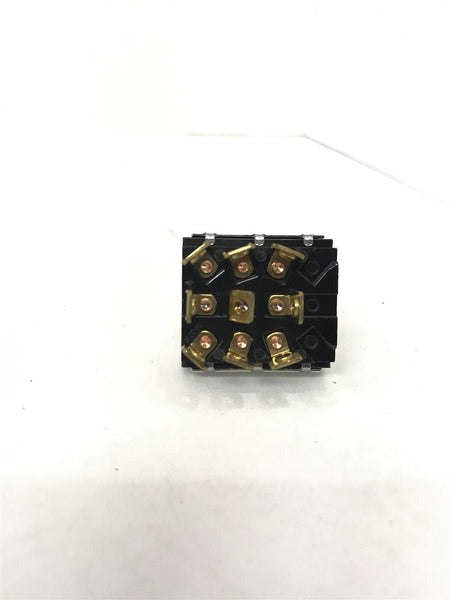

  • 0.469 in bushing, 0.688 in lever; 0.250 in spade terminals; threaded mounting; thermoset construction; dimensions 1.312 x 0.75 x 1.2 in

Product Highlights

3PDT ON-OFF-ON toggle; 15A/10A ratings; CSA and UL recognized

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 7701K3
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Eaton
MPN
7701K3
Brand
Eaton
Product Name
General purpose AC rated toggle switch
Catalog Number
7701K3
Series
7700
Circuit Number
F
Circuit Position
On-Off-On (Center Off)
Number of Poles
3
Contact Configuration
3PDT (three pole double throw)
Throw Type
Double-throw
Actuator
Toggle bat lever
Bushing Diameter
0.469 in
Lever Length
0.688 in
Terminal Type
0.250 in spade
Mounting Type
Threaded
Material
Thermoset
Voltage Rating
125 VAC, 250 VAC
Current Rating
15 A at 125 VAC; 10 A at 250 VAC
Power Rating
0.75 hp at 250 V; 1 hp at 125-600 V
Dimensions
1.312 in L x 0.75 in W x 1.2 in H
Operating Temperature
0 to 150 °F
Certifications
CSA Certified, UL Recognized
Country of Origin
Mexico
UPC
786685677422
GTIN
00786685677422
