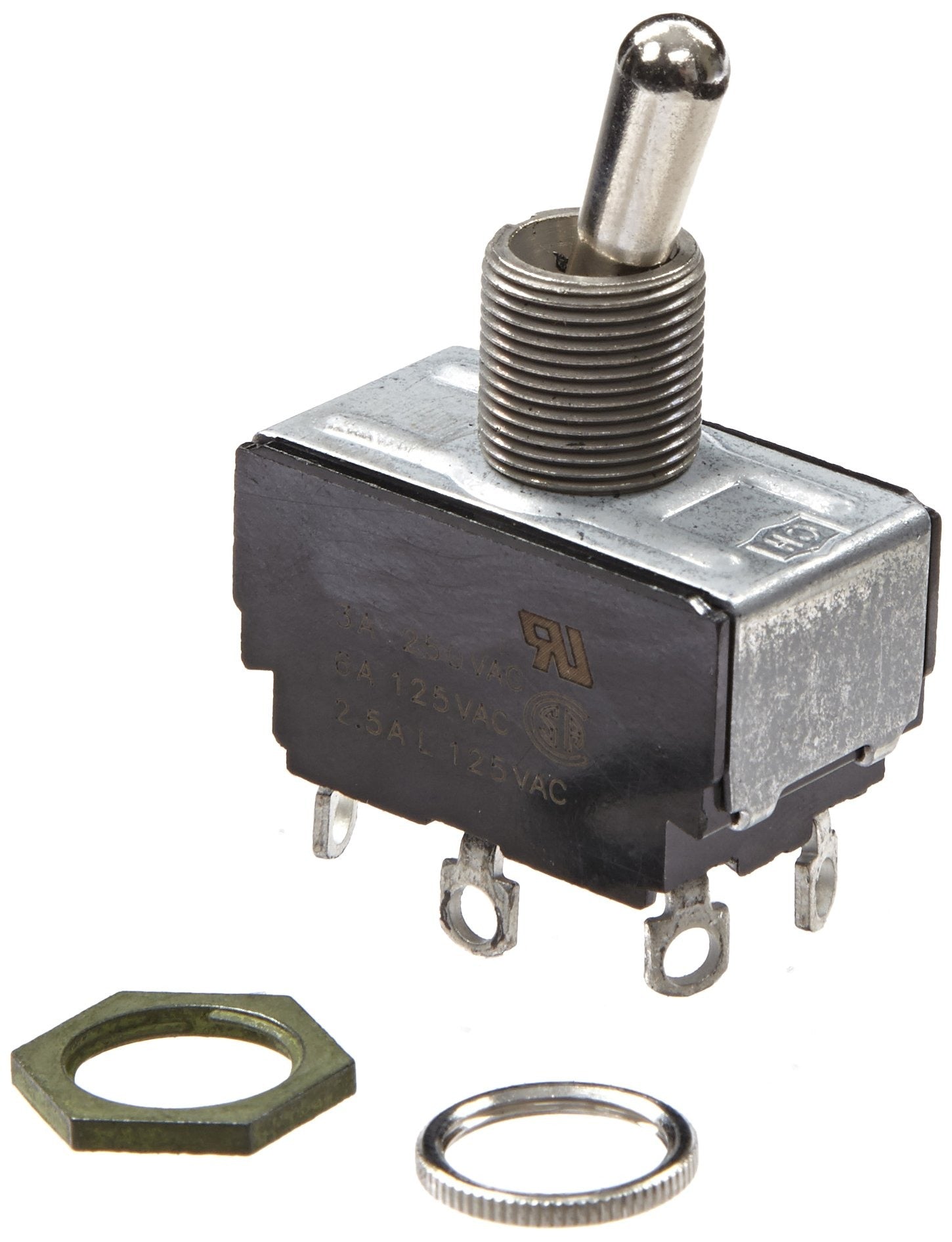

Eaton 7592K6 Dpdt Toggle Switch On-none-on Solder

Product Description

The EATON 7592K6 is a general purpose AC-rated toggle switch built for reliable circuit control in electrical panels, equipment enclosures, and industrial applications. It features a Double Pole Double Throw (DPDT) contact configuration with an On-None-On switching action, meaning both poles switch independently between two live positions with no center-off connection. Termination is via solder lugs, which provides a secure, low-resistance connection to PCB or hardwired assemblies. Rated at 6 amps at 125 volts AC and 3 amps at 250 volts AC, the 7592K6 handles a range of standard AC load requirements. The switch housing is metal construction.

This toggle switch is suited for residential, commercial, and light industrial electrical applications where a durable, manually actuated DPDT switch is required. Typical install scenarios include control panels, test equipment, HVAC accessory wiring, and machinery where two separate circuits must be switched simultaneously between active states. It is installed by licensed electricians and qualified electrical technicians.

Key Features

• DPDT contact configuration allows simultaneous switching of two independent circuits
• On-None-On action provides two active switching positions with no center-off state
• Solder termination for secure, low-resistance PCB or hardwired connections
• AC rated at 6 amps at 125 volts AC and 3 amps at 250 volts AC
• Metal housing for durability in panel and enclosure installations

Compatibility

Designed as an OEM-style general purpose toggle switch replacement for AC-rated electrical control and equipment applications requiring a DPDT On-None-On solder-termination switch.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit completely before servicing or replacing the switch. Solder termination connections should be made with appropriate flux-core solder and inspected for cold joints before returning the circuit to service. Do not exceed the rated voltage or amperage for the intended circuit.
