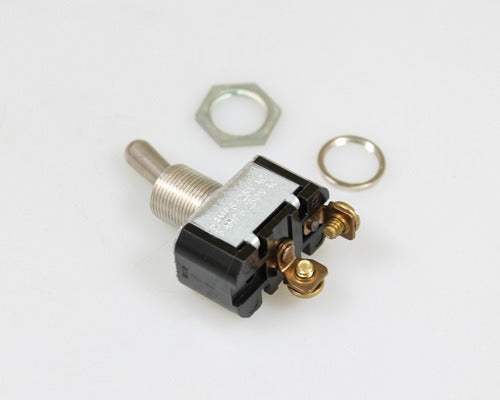

Eaton 7580K4 Toggle Switch SPST 6A/3A 125/250 VAC (Pack 1)

Product Description

Eaton 7580K4 is a general-purpose AC rated toggle switch in the Series 7500 family. It is a single-pole, single-throw (SPST) ON/OFF switch rated 6 A at 125 VAC and 3 A at 250 VAC with screw terminal connections and a toggle bat lever actuator. The threaded bushing and thermoset construction support panel mounting; operating temperature is 0 to 150 °F and dimensions are 1.312 x 0.75 x 1.2 in.

• Electrical: SPST configuration; 6 A at 125 VAC and 3 A at 250 VAC; circuit positions ON-NONE-OFF.
• Mechanical: Toggle bat lever actuator, 0.469 in bushing, 0.563 in lever, threaded mounting, screw terminals; thermoset body; dimensions 1.312 x 0.75 x 1.2 in.
• Compliance and origin: RoHS compliant; UL recognized and CSA certified; country of origin Mexico.

Product Highlights

Single-pole single-throw toggle switch, 6 A/125 VAC and 3 A/250 VAC, threaded bushing, screw terminals.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7580K4
• Country of Origin: Mexico
