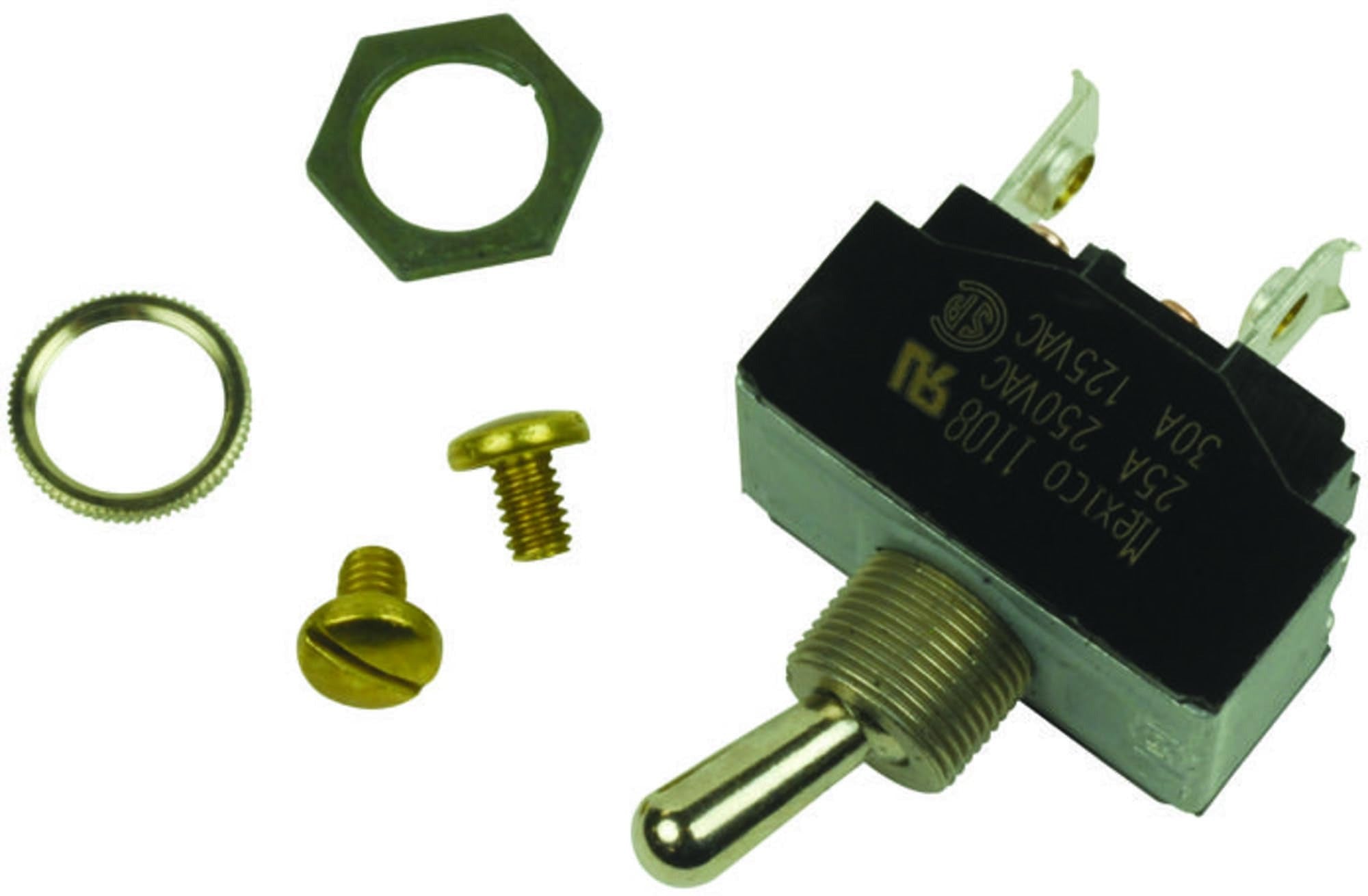

Eaton 7576K2 Spst Toggle Switch 30A 250V

Product Description

The EATON 7576K2 is a single-pole single-throw (SPST) general-purpose AC toggle switch rated for 30 amps at 250 volts. It features an ON-NONE-OFF switching function with a slow-make/slow-break butt contact design, making it well suited for controlling AC loads across a broad range of industrial and commercial applications. The switch is built on a thermoset molding base with a bright nickel-plated toggle lever and bushing finish. Terminal connections are made via brass screw terminals. Bushing length is 8.74 mm, and the keyway rotates 180 degrees to accommodate flexible mounting orientations. Minimum dielectric withstand is 1000 Vrms.

This toggle switch is used in consumer electronics assemblies, sensing and instrumentation equipment, communications and networking hardware, medical devices, and general commercial electrical panels or control enclosures. Its compact form factor and flexible keyway design make it adaptable to a variety of panel cutout configurations. Installation is typically performed by electricians or qualified instrumentation technicians working on low-to-medium voltage control circuits.

Key Features

• SPST (single-pole single-throw) configuration with ON-NONE-OFF function
• Slow-make/slow-break butt contact for reliable switching performance
• Bright nickel-plated toggle lever and bushing for corrosion resistance
• Thermoset molding base for durability under thermal and mechanical stress
• Brass screw terminals for secure, low-resistance wire connections
• 1000 Vrms minimum dielectric withstand rating
• Keyway rotates 180 degrees for flexible panel mounting

Compatibility

Designed as a general-purpose SPST AC toggle switch suitable for consumer electronics, sensing instrumentation, communications and networking equipment, medical devices, and commercial electrical control applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician. De-energize the circuit and verify absence of voltage before handling or wiring the switch. Connections are made to brass screw terminals - ensure wire gauge is appropriate for the 30A rating and that termination torque follows the applicable NEC requirements for screw-terminal devices. Do not exceed the rated voltage or current for the switch.
