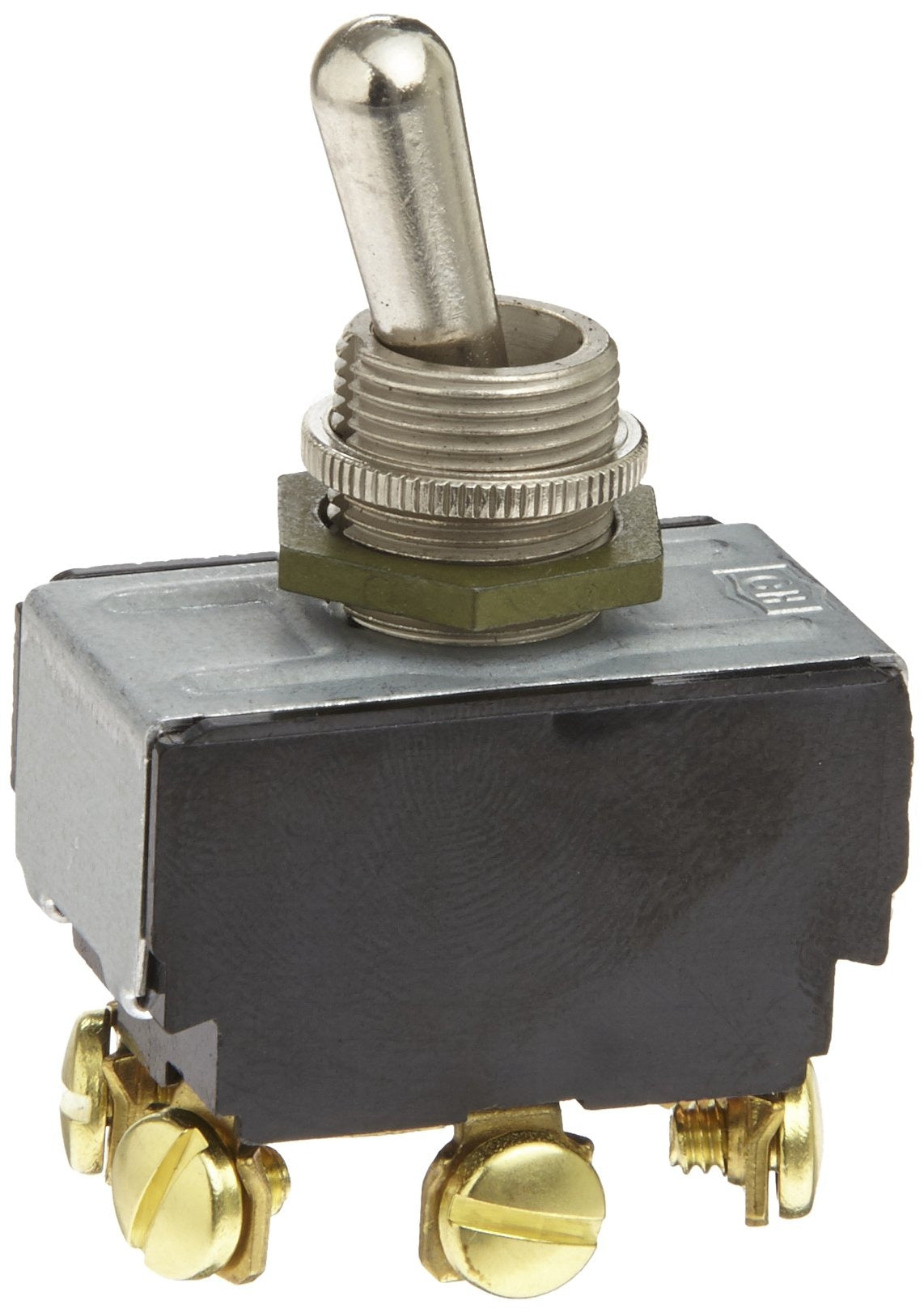

Eaton 7564K6 Toggle Switch Dpdt On-none-on

Product Description

The EATON 7564K6 is a general purpose AC-rated toggle switch built for demanding electrical applications. It features a Double Pole Double Throw (DPDT) contact configuration with an On-None-On action, allowing the switch to route power independently to two separate circuits or fully open both poles in the center position. The metal construction supports ratings of 15 amps at 125 volts AC, 10 amps at 250 volts AC, and 3/4 HP at 125-250 volts AC. Screw terminations allow for secure, tool-assisted wire connections. Licensed electricians and experienced trades professionals install this switch in control panels, equipment enclosures, and general-purpose wiring applications.

This switch is suited for residential and light commercial electrical work where a reliable two-circuit switching solution is needed. The On-None-On action makes it appropriate for applications requiring a true center-off state between two live positions, such as motor direction control, circuit selection panels, or switching between two load circuits. Its compact metal body fits standard panel cutouts and enclosures common in industrial and commercial installations.

Key Features

• DPDT contact configuration supports independent switching of two separate circuits
• On-None-On action provides a center-off position between two active switching states
• AC-rated at 15A at 125V AC and 10A at 250V AC
• Motor-rated at 3/4 HP for 125-250V AC applications
• Screw termination for secure, tool-tightened wire connections
• Metal construction for durability in panel and enclosure environments

Compatibility

Designed as a general-purpose AC toggle switch suitable for use in standard electrical control panels, equipment enclosures, and switching assemblies where a DPDT On-None-On configuration is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify absence of voltage before beginning any wiring work. Use appropriately rated wire gauge for the intended load and torque screw terminals with a suitable screwdriver to ensure solid connections. Do not exceed the rated voltage or amperage specifications for the switch.
