Eaton 7561K6 Toggle Switch 3/4 hp (4 Connections)

EATON
Brand: EATON
SKU: 7561K6
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

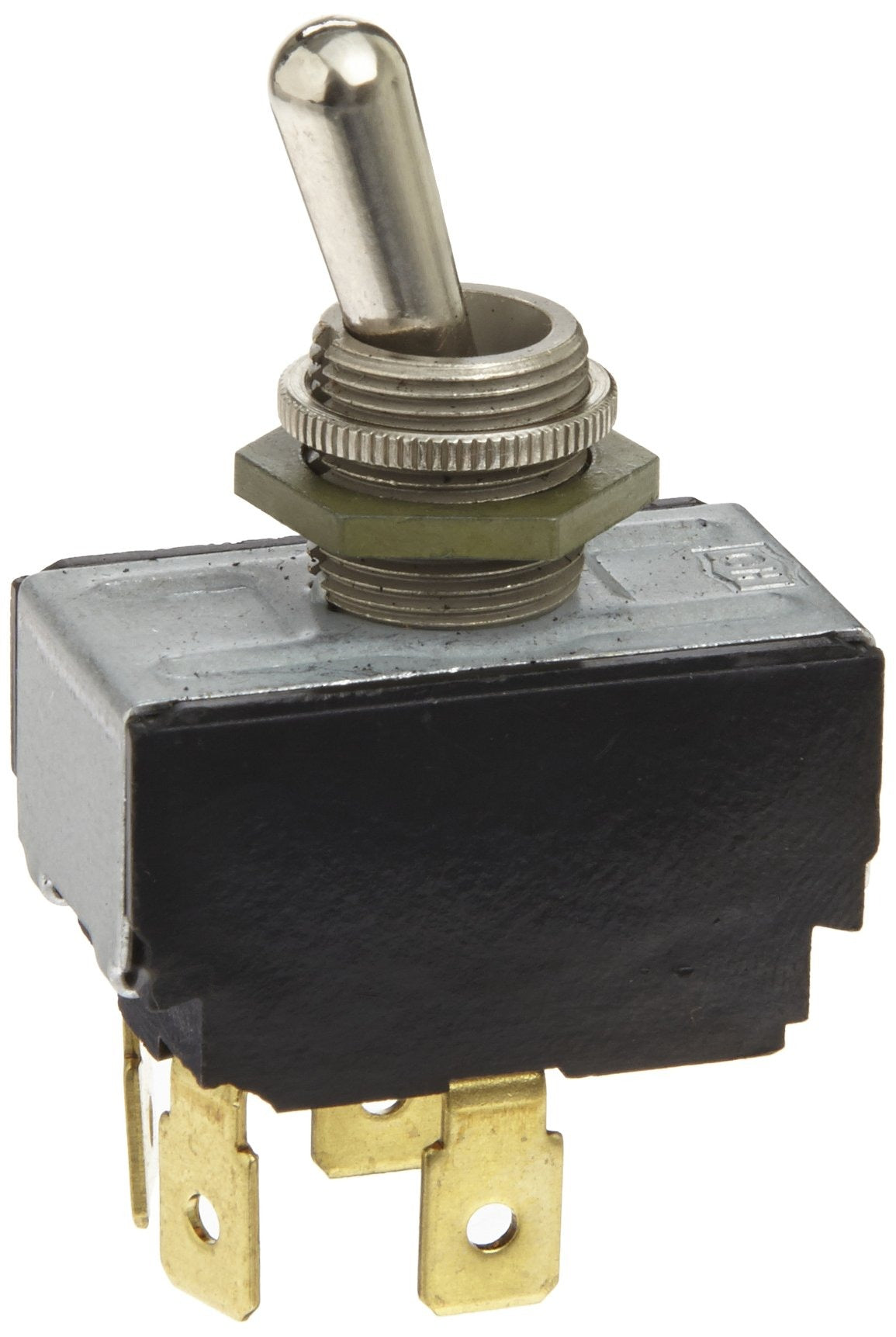

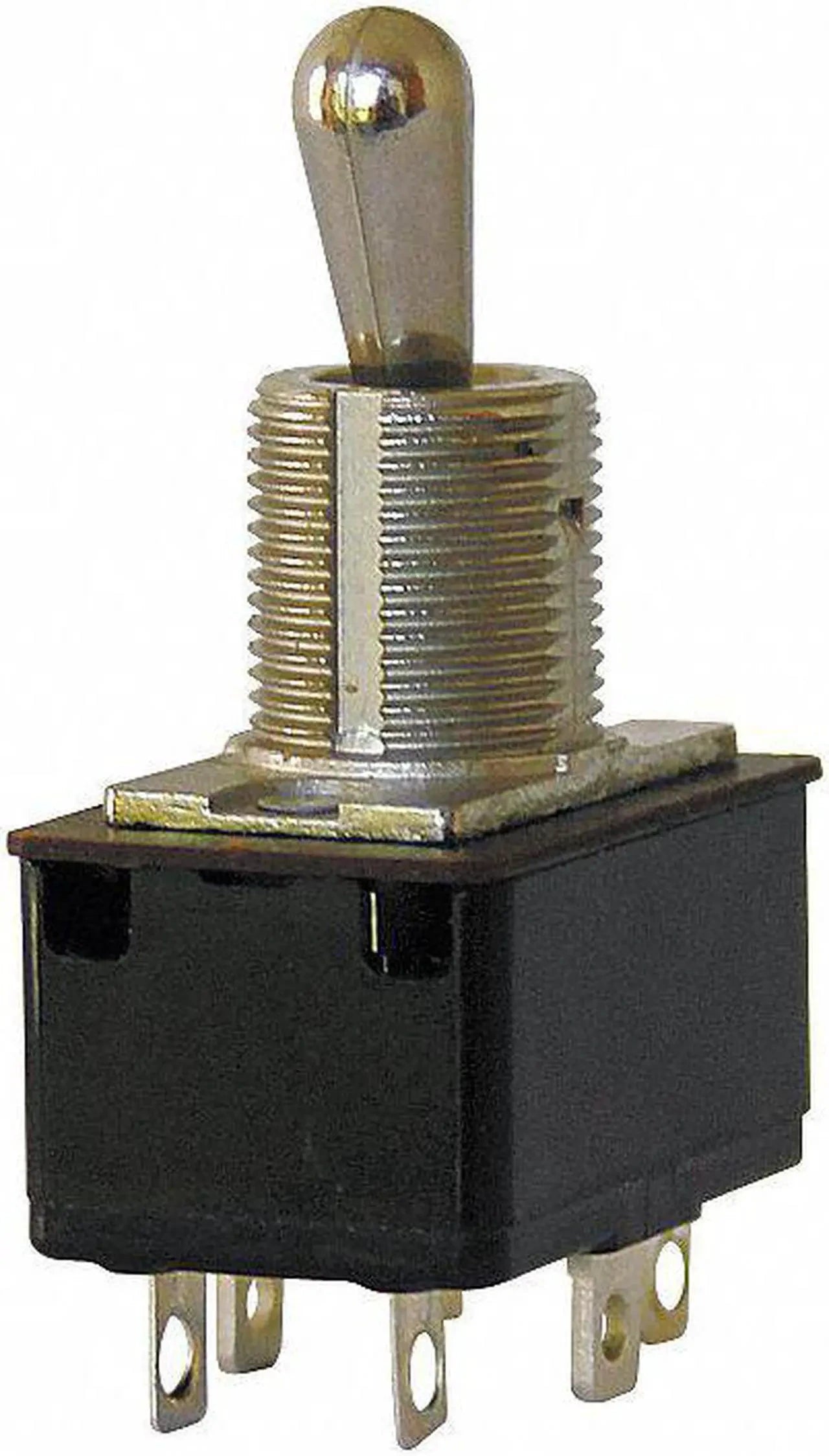

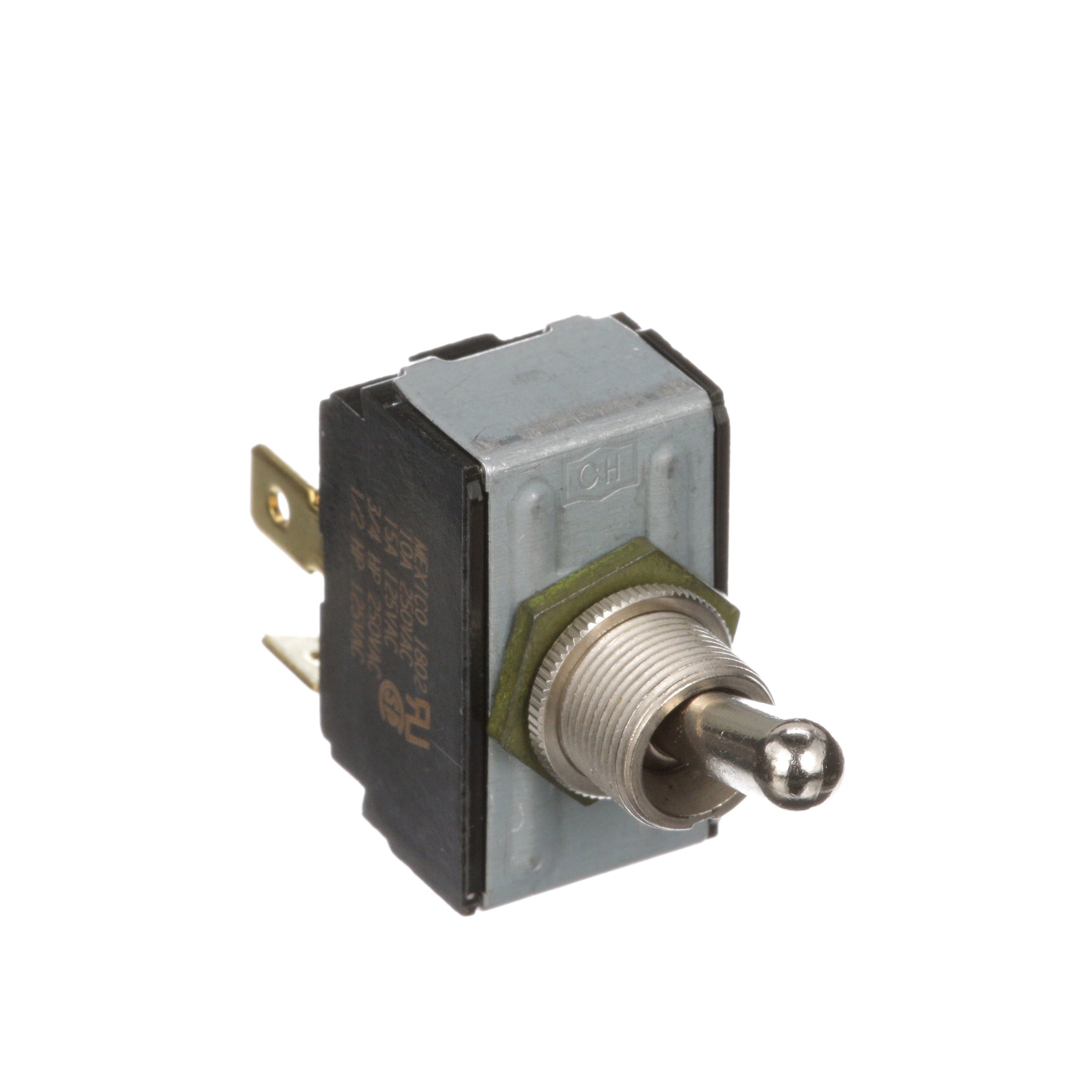

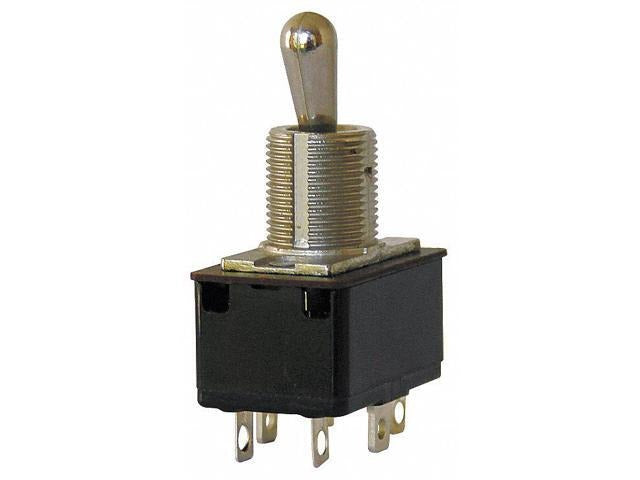

The Eaton 7561K6 is a DPST AC-rated toggle switch designed for general-purpose panel or threaded mounting. It provides two-pole switching with four spade/quick-connect terminals and is rated 15 A at 125 VAC and 10 A at 250 VAC, with horsepower ratings of 1/2 hp at 125 VAC and 3/4 hp at 250 VAC. The switch uses a thermoset body, toggle bat lever actuator, and operates between 0 and 150 degrees Fahrenheit.

  • DPST (double pole, single throw) with two poles and four spade/quick-connect terminals for switching two circuits.
  • AC contact ratings: 15 A @ 125 VAC and 10 A @ 250 VAC; horsepower: 1/2 hp @ 125 VAC, 3/4 hp @ 250 VAC.
  • Threaded panel mount (0.50 in mounting hole); thermoset construction; actuator length 0.56 in; operating temperature 0 to 150 °F.

Product Highlights

DPST toggle switch, 15 A/10 A AC ratings, 1/2–3/4 hp, threaded panel mount with 0.250 in spade terminals.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 7561K6
  • Country of Origin: Mexico
Technical Specifications
Brand
Eaton
Manufacturer Part Number
7561K6
Series
7500
Product Type
Toggle switch
Contact Form
DPST (double pole, single throw)
Number of Poles
2
Number of Connections
4
Switch Function
On / None / Off
Actuator Type
Toggle bat lever
Actuator Length
0.56 in
Stem Length
0.47 in
Stem Diameter and Thread Size
0.500 in (thread spec reported as 15/32-32) - see notes
Mounting Type
Threaded panel mount
Mounting Hole Diameter
0.50 in
Terminal Type
Spade / Quick connect (0.250 in)
AC Contact Rating
15 A @ 125 V; 10 A @ 250 V
Voltage Rating
125/250 VAC
Amperage Rating
15 A / 10 A
Horsepower Rating
1/2 hp @ 125 VAC; 3/4 hp @ 250 VAC
Material
Thermoset molding
Dimensions
1.312 in L x 0.75 in W x 1.2 in H
Operating Temperature
0 to 150 °F (0 °F = -17.8 °C; 150 °F = 65.6 °C)
Dielectric Strength
1000 V
Certifications
UL Recognized; CSA Certified; RoHS Compliant
Includes
Panel mounting hardware
Number of Positions
3
Circuit Positions
Up = On; Center = None; Down = Off
Country of Origin
Mexico
