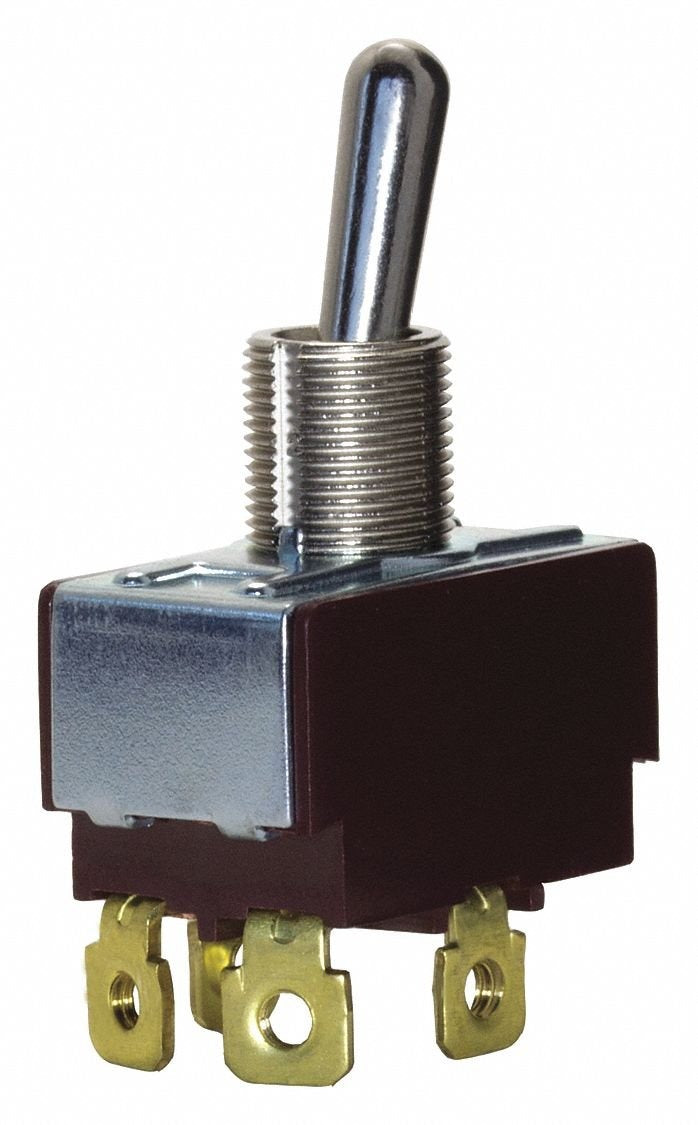

Eaton 7560K5 Dpst Toggle Switch On-none-off Ac Rated

Product Description

The EATON 7560K5 is a general purpose AC-rated toggle switch with double-pole single-throw (DPST) contacts and an On-None-Off switching action. It uses screw termination for a secure, tool-based wire connection and is housed in a metal construction for durability in demanding service environments. Rated at 15 amps at 125 volts AC and 10 amps at 250 volts AC, this switch handles a broad range of single-phase AC loads. Motor ratings extend to 1/2 HP at 125 volts AC and 3/4 HP at 250 volts AC. Licensed electricians and maintenance technicians install this switch in control panels, equipment enclosures, and general electrical circuits where a reliable maintained-contact toggle is required.

The 7560K5 is suited for residential and light commercial electrical applications where a two-pole toggle switch with a positive off position is needed. It is commonly installed in control panels, HVAC equipment enclosures, machine control circuits, and general-purpose power switching applications. The On-None-Off action provides a true open-circuit off state with no center-on position, making it appropriate for circuits that require a definite disconnected state between the on and off positions.

Key Features

• DPST contacts with On-None-Off action for a true open-circuit off state
• Rated 15A at 125 volts AC and 10A at 250 volts AC for versatile load compatibility
• Motor load rated at 1/2 HP at 125 volts AC and 3/4 HP at 250 volts AC
• Screw termination for secure, tool-installed wiring connections
• Metal construction for durability in industrial and equipment enclosure use

Compatibility

Designed as an OEM-style replacement or direct-install general purpose toggle switch for AC-rated single-phase electrical control and power switching circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before removing or installing the switch. Confirm that the load current and voltage do not exceed the rated values for the switch before wiring. Screw terminals should be tightened to secure conductors without over-torquing the terminal screws.
