Product Description

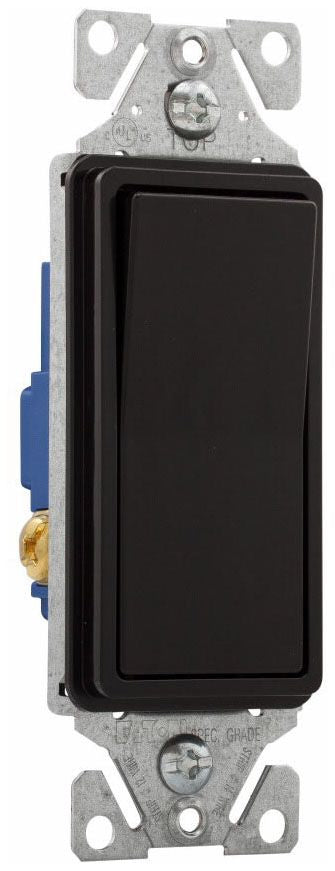

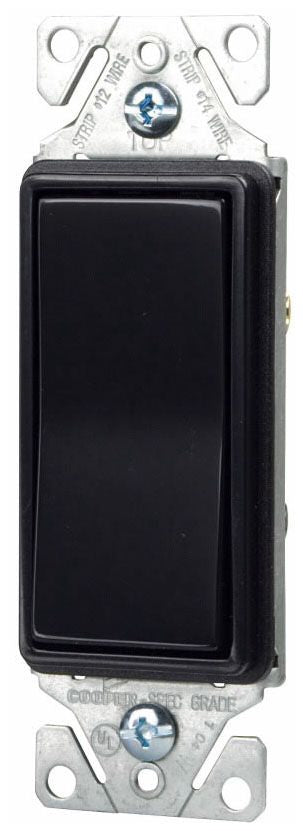

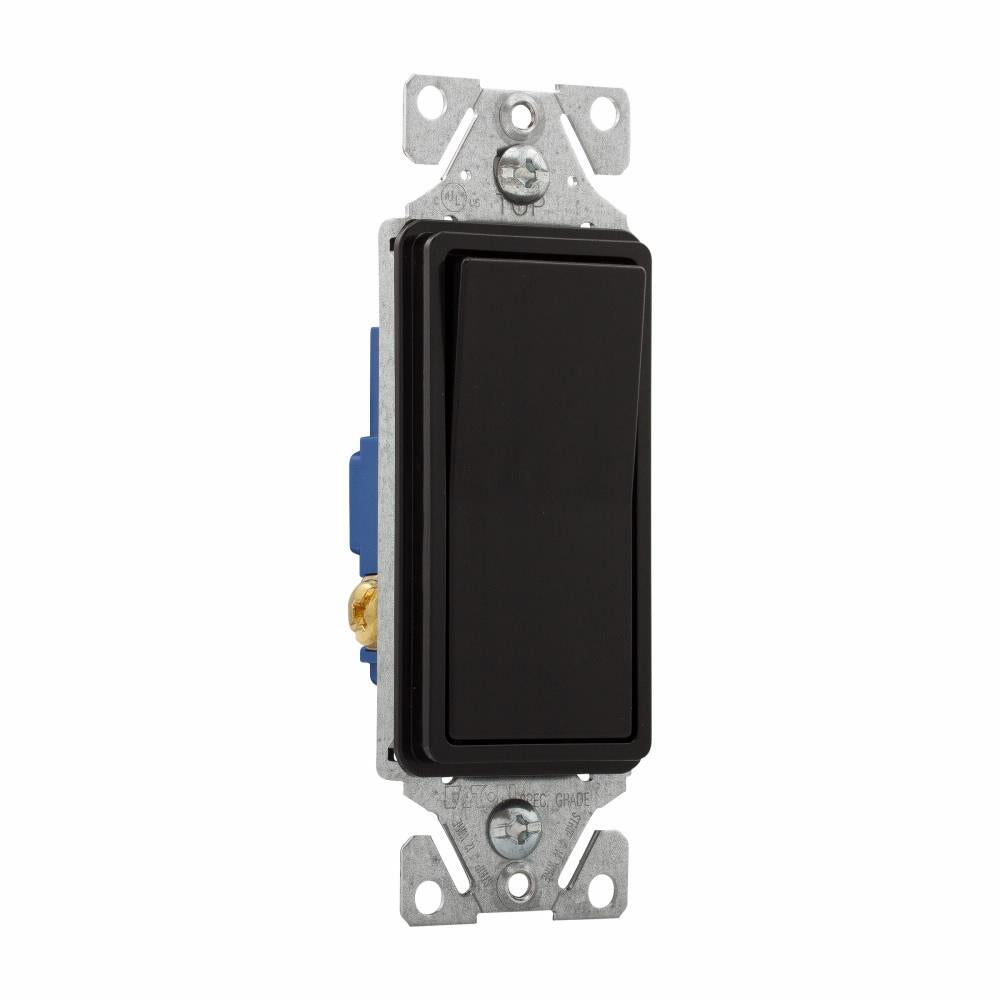

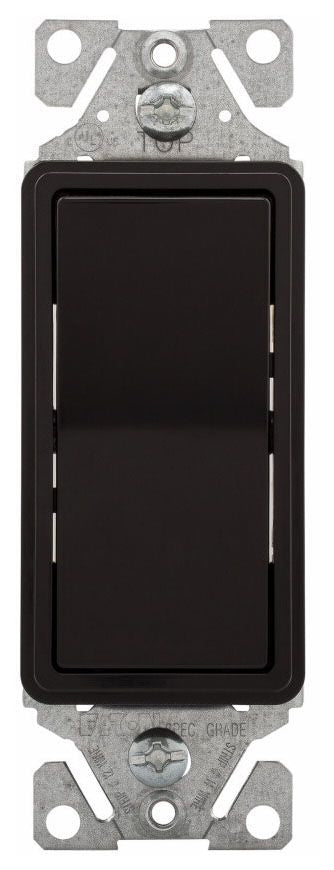

The EATON 7503BK-BOX decorator switch features ultrasonic welding and integrated construction for superior integrity. The redesigned paddle allows for easier actuation and quiet operation. It has a 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications.
- Ultrasonic welding and integrated construction of the strap and body provide superior integrity
- Lighted switches glow in OFF position

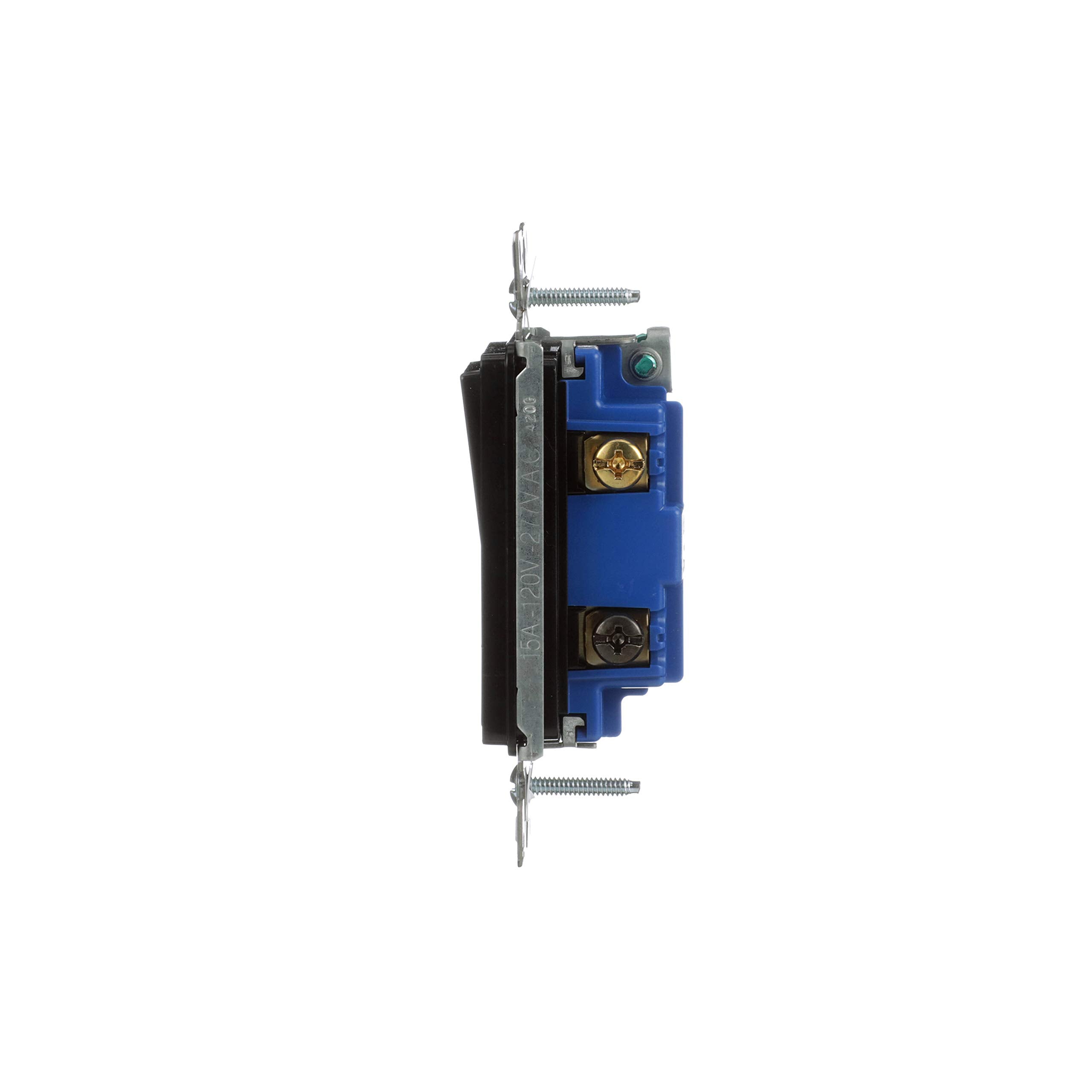

- Backwire clamps on the side terminals provide for easy installation of #12 and #14 wire
Product Highlights
This 3-way standard grade decorator switch has a thermoplastic rocker and is suitable for residential and light commercial applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 7503BK-BOX
-
Country of Origin: United States
Technical Specifications
-
Actuator: Paddle
-
Color: Black
-
Material: Thermoplastic
-
Mounting: Wall
-
Number of Poles: 1
-
Terminal Type: Back/Side Wire/Push-In/Screw
-
Type: 3-Way Standard Grade
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Series: 7500
-
Terminal: Push-in
-
Overall Length: 4.19 in
-
Overall Width: 1.44 in
-
Overall Depth: 0.97 in
-
Includes: (1) metal strap
-
Listing: cUL/UL listed
-
Application: Residential, light commercial
-
Wiring Method: Back and push
-
Switch Type: Three-way
-
Mounting Method: Flush
-
Load Type: LED, Motor Control, Fan, HAL, FLR, ELV, INC, CFL, MLV
-
Phase: Single-phase
-
Allowable wire size: #14-12 AWG
-
Special features: Box
-
Certifications: cULus Listed
-
Product Type: Standard grade decorator switch
-
Wire Size: 14 to 12 AWG
-
Packaging Type: Box
-
Volts AC Range: 120 - 277
