Description

Product Description

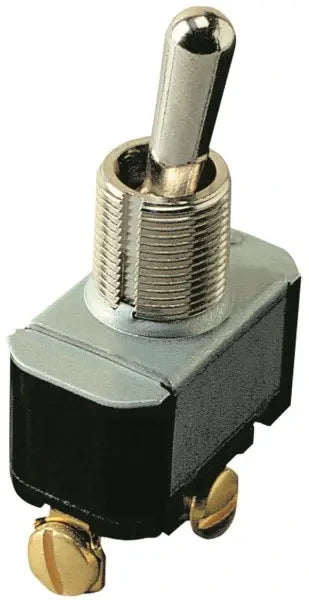

Eaton 7502K13 is a general-purpose AC-rated single-pole double-throw (SPDT) toggle switch with ON-NONE-ON positions. It provides screw-terminal connections and a threaded panel-mount bushing (0.469 in) with a 0.563 in lever. Electrical ratings are 15 A at 125 VAC and 10 A at 250 VAC, with motor ratings of 0.5 hp at 125 V and 0.75 hp at 250 V. The thermoset body meets CSA and UL recognition.

  • Electrical rating: 15 A at 125 VAC; 10 A at 250 VAC; motor ratings 0.5 hp @125 V, 0.75 hp @250 V
  • Mechanical: single-pole double-throw (SPDT), ON-NONE-ON function, 0.469 in bushing, 0.563 in lever, threaded panel-mount
  • Terminals and materials: brass screw terminals, thermoset construction; certified CSA and UL recognized; RoHS compliant

Product Highlights

SPDT ON-NONE-ON toggle, 15 A/125 VAC and 10 A/250 VAC ratings, 0.469 in bushing, screw terminals, CSA/UL recognized

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 7502K13
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Eaton
Brand
Eaton
Manufacturer Part Number
7502K13
Product Type
Toggle switch
Product Range / Series
7500 Series
Contact Configuration
Single-pole double-throw (SPDT)
Number of Poles
1
Switch Function / Circuit Position
ON-NONE-ON (center off)
Voltage Rating
125 VAC; 250 VAC
Amperage Rating
15 A at 125 VAC; 10 A at 250 VAC
Horsepower Rating
0.5 hp at 125 V; 0.75 hp at 250 V
Terminal Type
Screw terminals (brass screw termination)
Number of Connections
3
Actuator Style
Toggle bat lever
Bushing Length / Diameter
0.469 in (11.91 mm)
Lever Length
0.563 in
Mounting
Threaded panel mount (15/32-32)
Material
Thermoset body
Finish
Bright nickel-plated toggle lever and bushing
Dielectric Withstand
1000 Vrms minimum
Operating Temperature
0 to 150 °F (-17.8 to 65.6 °C)
Dimensions
1.312 in L x 0.75 in W x 1.2 in H
Certifications
CSA Certified; UL Recognized; RoHS compliant
Country of Origin
Mexico
