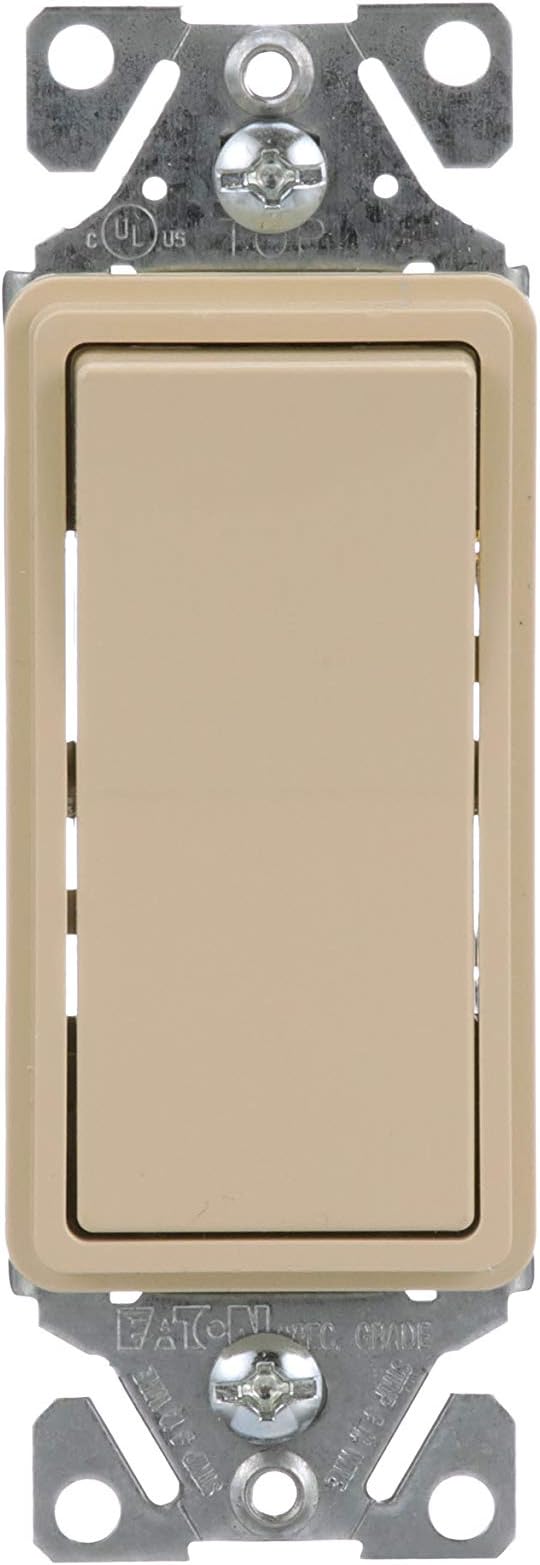

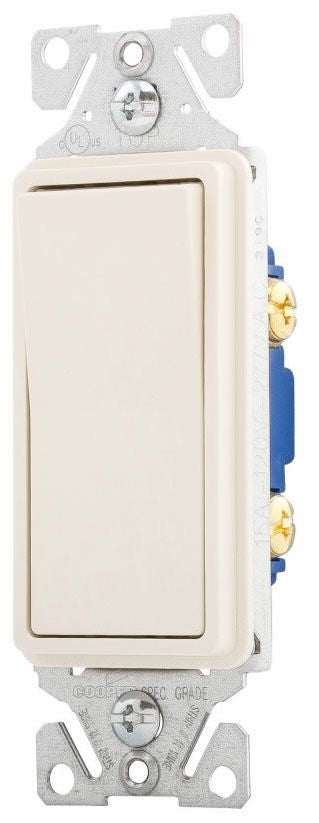

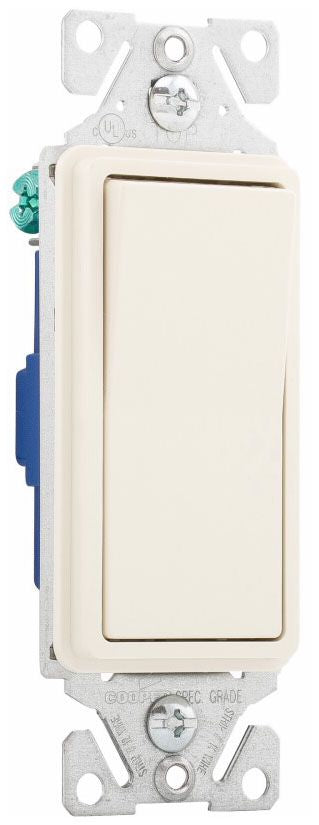

Eaton 7501LA Decorator Switch 15A

Product Description

The EATON 7501LA is a standard grade decorator switch with a thermoplastic construction. Rated at 15A and 120/277V AC, this single-pole switch is suitable for residential applications. It features back and push wiring for easy installation. The decorator actuator and maintained closure type ensure reliable performance.

• Standard rocker type decorator switch
• Back and push wiring
• Thermoplastic material

Product Highlights

This decorator switch is ideal for various load types including motor control, fan, LED, incandescent, ELV, MLV, CFL, fluorescent, and halogen.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 7501LA
• Country of Origin: USA

Technical Specifications

• Type: Switch decorator
• Voltage Rating: 120/277 V
• Current Rating: 15 A
• Operation Type: 1-Pole
• Wiring Method: Back and push
• Material: Thermoplastic
• Application: Residential
• Approval: UL (Canada and US)
• Number of Phase: 1
• Mounting Type: Flush
• Wire Size: #14-12 AWG
• Applicable Standard: RoHS, NAFTA
• Product Name: Eaton standard grade decorator switch
• Catalog Number: 7501LA
• UPC: 032664627538
• Product Length/Depth: 1.44 in
• Product Height: 4.19 in
• Product Width: 0.97 in
• Compliances: RoHS Compliant, NAFTA
• Certifications: cULus Listed
• Product Type: Standard grade decorator switch
• Allowable wire size: #14-12 AWG
• Number of Poles: Single-pole
• Phase: Single-phase
• Switch Type: Single-pole
• Closure Type: Maintained
• Load type: INC FLR LED CFL ELV Fan HAL MLV Motor Control
• Actuator: Decorator
• Operation Mode: ON-OFF
• Contact Type: Normally Open
• Connector Type: Screws
• Terminal: Screw
• Circuit Type: 1-way
• Control Method: Push Button
• Brand: Eaton
• Housing Material: Thermoplastic
• Includes: (1) Metal Strap
• Temperature Rating: -20 to 60 deg C
• Contact Configuration: SPST
• Special features: Box
