Product Description

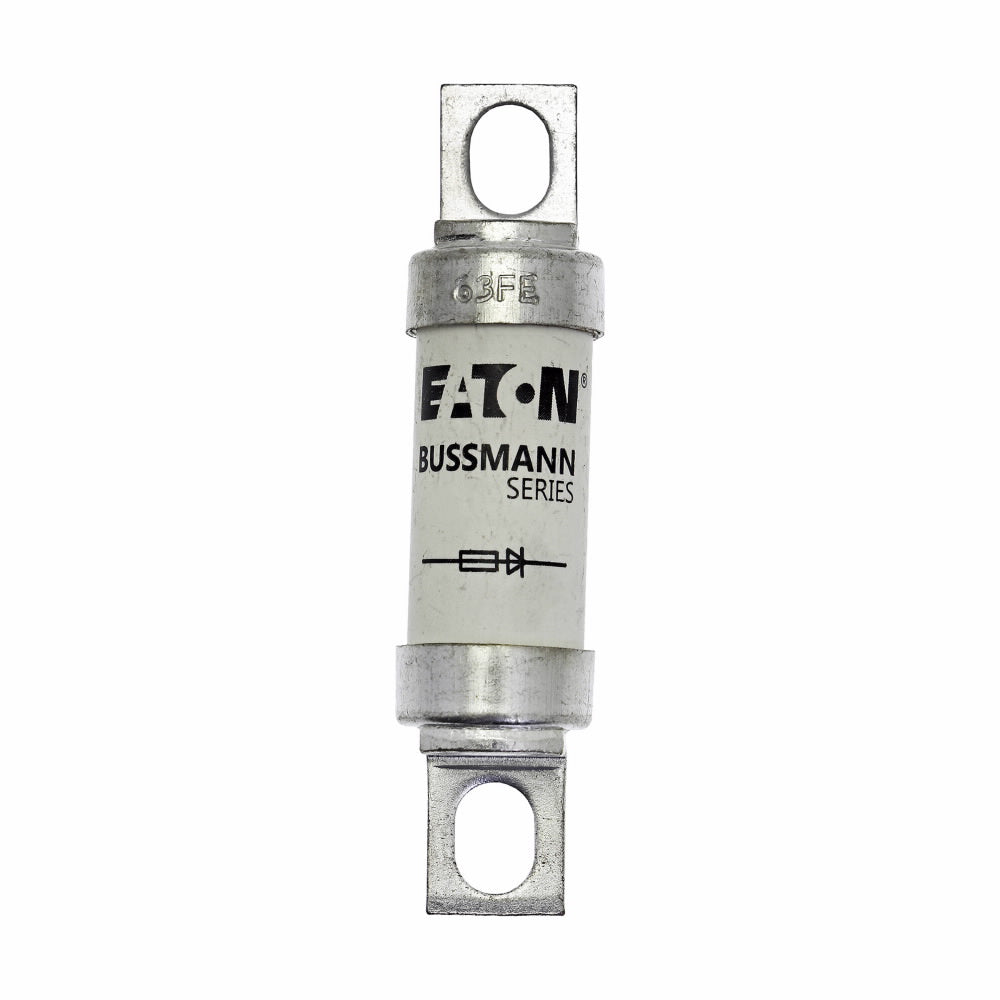

The Eaton 63FE is a British Standard Semi-Conductor High Speed Fuse with a current rating of sixty-three Amps and operates at six hundred ninety Volts AC. It can interrupt up to two hundred kA and is designed for various applications including industrial, utility, and domestic settings.
- Non-indicating design
- Blade end terminal for easy connectivity
- Stud mount configuration
Product Highlights
This fuse is suitable for use in control panels, power distribution, and electronic assemblies. Its design meets BS88 part 1 and 2 and IEC 60269-1 and -2 standards, ensuring compatibility in diverse setups.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171283649
Technical Specifications
-
Type: British Standard Semi-Conductor
-
Voltage Rating: 690 VAC
-
Amperage Rating: 63 A
-
Body Size: 77 mm L x 17.1 mm W x 19.1 mm H
-
Indicating Non Indicating: Non-Indicating
-
Mounting Type: Stud
-
Terminal Type: Blade End
-
Standards/Approvals: CE Marking, IEC 269, RoHS Compliant, UL Listed
