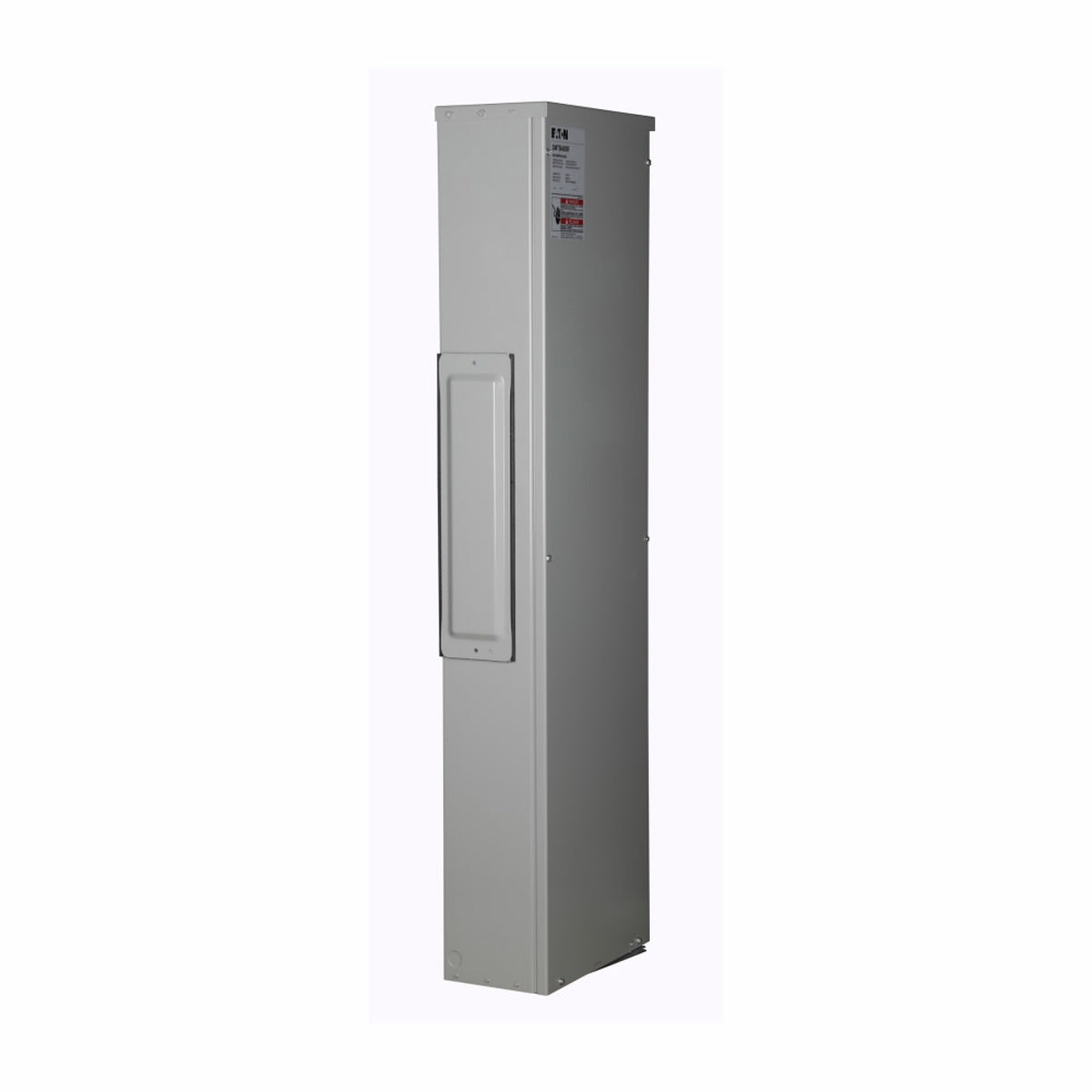

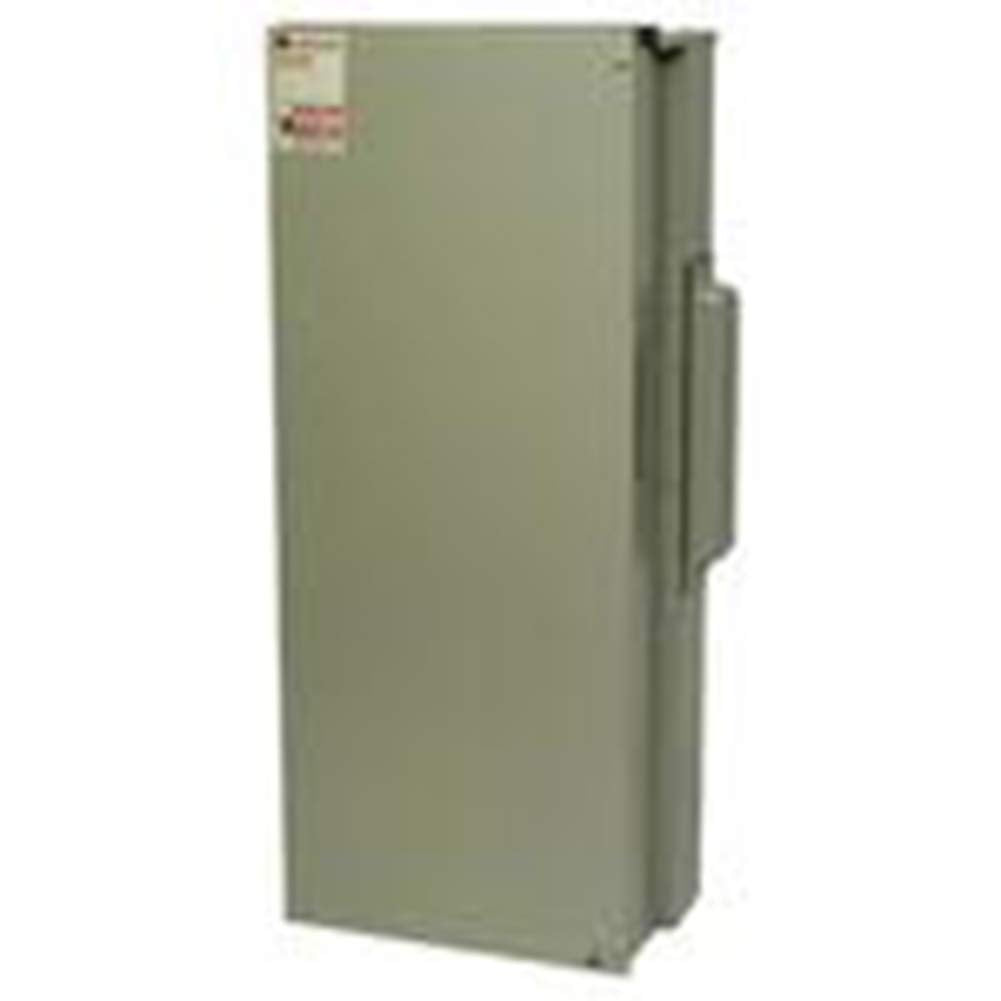

Eaton 3MTB400R Main terminal box 400 Amp (4-Wire)

EATON
Brand: EATON
SKU: 3MTB400R
Availability: In Stock

Ships via freight in 1-3 business days
$959.76
$959.76
LTL Delivery

This product weighs 54 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Eaton 3MTB400R is a 400 A main terminal box for 120/208 VAC, three-phase, four-wire systems used in group metering and service entrance applications. The unit features an aluminum bus in a NEMA 3R rainproof enclosure, line-side lug connections, and accepts a wide conductor range including one #6 AWG to 600 kcmil and two 1/0 AWG to 250 kcmil. It supports top, bottom, overhead, or underground feed configurations and is UL listed.

  • 400 A, 120/208 VAC, three-phase; aluminum bus in a NEMA 3R enclosure
  • Conductor capacity: (1) #6 AWG to 600 kcmil; (2) 1/0 AWG to 250 kcmil; line-side lug connection
  • Supports top/bottom/overhead/underground feed; short-circuit rating up to 100 kA RMS symmetrical

Product Highlights

400 A, 3-phase main terminal box for gangable group metering with NEMA 3R aluminum enclosure

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 3MTB400R
  • Country of Origin: United States
Technical Specifications
Brand
Eaton
Manufacturer Part Number
3MTB400R
Type
Main terminal box
Amperage Rating
400 A
Voltage Rating
120/208 VAC
Phase
3
Number of Wires
4
Bus Material
Aluminum
Enclosure Rating
NEMA 3R
Enclosure Type
Rainproof
Connection Type
Line side lug
Conductor Capacity (single)
1 conductor: #6 AWG to 600 kcmil
Conductor Capacity (two)
2 conductors: 1/0 AWG to 250 kcmil
Feed Type
Bottom, Top, Overhead, Underground
Short Circuit Current Rating
100 kA RMS symmetrical (maximum, limited by installed equipment)
Dimensions
13.5 in L x 7.5 in W x 6.5 in H
Weight
54 lb
Includes
Phase and neutral lugs
Certifications
UL Listed
Application
Group metering; power distribution; multi-tenant metering
GTIN
00786849053086
UPC
786849053086
Country of Origin
United States
