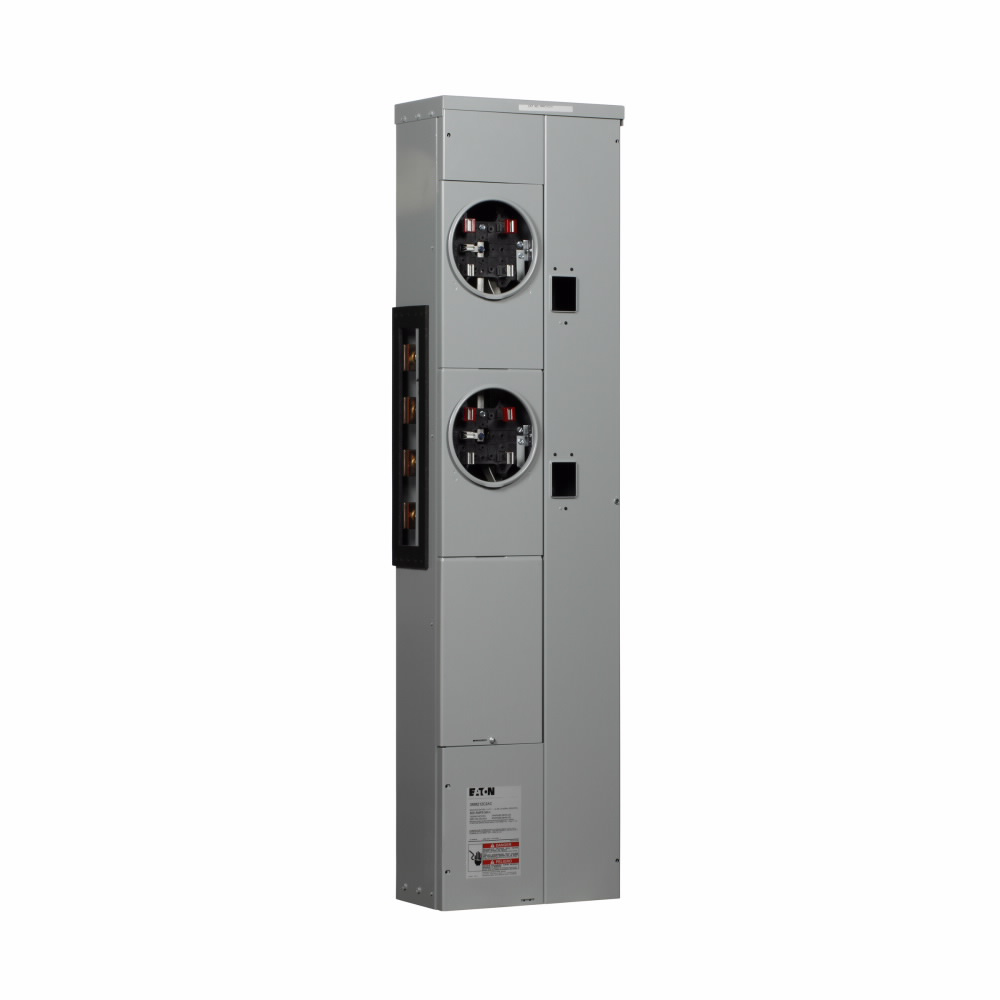

Eaton 3MM212C2AB Meter Stack Ring 2 Sockets

Product Description

The Eaton 3MM212C2AB is a residential meter stack designed for multiple metering applications. Rated at 125A, it features a copper bus rated to 800A and does not include a bypass. It is intended for indoor use and depends on the selected MCB. This unit includes a five-jaw socket design with 2 sockets and supports three-phase input and single-phase output at 120/208 Vac.

• Meter socket and tenant main breaker/wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft.
• A convenient termination for neutral conductors is in the wireway of each module.
• Enclosures are made of galvanized steel construction and include rust-inhibiting phosphate primer and gray baked enamel for long-term durability.

Product Highlights

The Eaton 3MM212C2AB meter stack is ideal for residential buildings and facilities, offering a robust solution for multiple metering needs with enhanced safety and durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3MM212C2AB

Technical Specifications

• Type: Multiple Metering
• Brand: Eaton
• Voltage: 120/208 Volt
• Amperage: 125 Amp
• Applications: Residential Bldgs & Facilities - Residential Bldgs & Facilities - Other
• Bus Material: Copper
• Number of Jaws: 5
• Number of Phases: 1,3 Phase
• Product Name: Eaton 3MM residential meter stack
• Catalog Number: 3MM212C2AB
• Certifications: UL Listed
• Product Type: Residential meter stack
• Maximum Voltage: 208 VAC
• Manufacturer: Eaton
• Component: Meter Stack
• Current Rating: 125 A
• Phase: Single Phase, Three Phase
• Service: 3Phase
• Bus Amps: 800A
• Socket Amps: 125
• Number of Sockets: 2
• Socket Cover Style: Ring
• Socket Jaws: 5
• Breaker Series: BR, BRH, BRHH
• Enclosure Type: Indoor, NEMA 3R
