Eaton 3BR3030NC100R 3Ph/BR LC 125A Co

Product Description

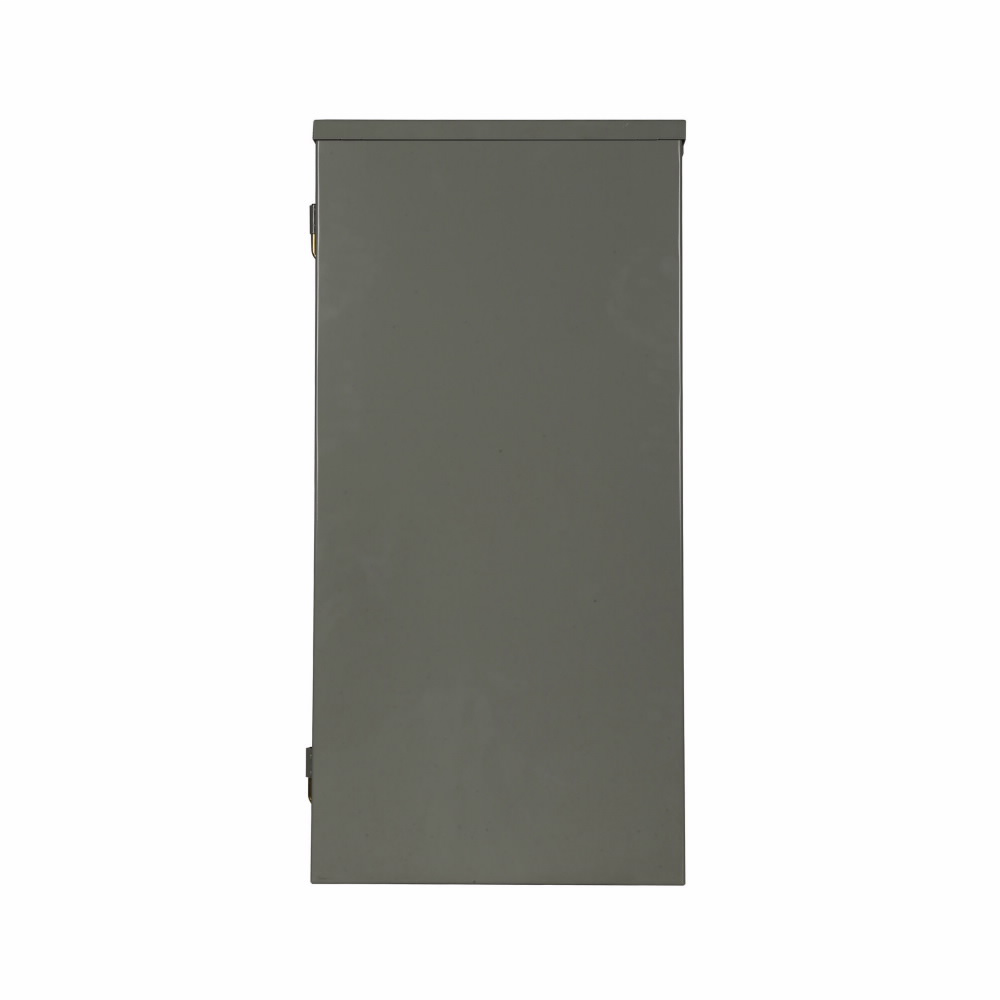

The Eaton 3BR3030NC100R BR convertible loadcenter, designed for easy installation, houses branch circuit breakers and wiring for distributing power to individual circuits. It features no feed-thru lugs and includes a BREQS125 hold-down screw. This load center serves as a main breaker for service entrances or as a main lug for adding circuits.

• Convertible main
• No feed-thru lugs
• Includes BREQS125 hold-down screw
• Cover included

Product Highlights

Metallic enclosure with a copper bus, this three-phase load center has 30 circuits and 30 spaces, with a 10 kAIC interrupt rating.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3BR3030NC100R
• Country of Origin: USA

Technical Specifications

• Type: Convertible Main
• Brand: Eaton
• Height: 29.13 Inch
• Length: 5.19 Inch
• Voltage: 240 Volt
• Amperage: 100 Amp
• Enclosure: 3R
• Cover Type: Cover included
• Bus Material: Copper
• Number of Wires: 4 Wire
• Interrupt Rating: 10 kAIC
• Number of Phases: 3 Phase
• Number of Spaces: 30
• Enclosure Material: Metal
• Number of Circuits: 30
• Breaker Type: BR
• Dimensions: 5.19 in L x 14.31 in W x 29.13 in H
• Enclosure Type: NEMA 3R
• Housing Material: Metal
• Wiring Configuration: Four-wire
• Voltage Rating: 208Y to 120 VAC/240 VAC
• Number of Poles: 30
• Amperage Rating: 100 A
• kAIC: 10 kAIC
• Phase: Three-phase
• Product Length/Depth: 5.19 in
• Product Height: 29.13 in
• Product Width: 14.31 in
• Product Weight: 20 lb
• Warranty: 10 year
• Certifications: UL 50 UL 67
• Product Type: Convertible loadcenter
• Special features: No feed-thru lugs, includes BREQS125 hold-down screw
• Cover: Cover included
• Main circuit breaker: BR
• Wire size: Determined by circuit breaker installed
• Material: Copper
• Family / Style: BR
• IP/NEMA Rating: NEMA 3R
• Application: Renewable Energy, Alternative Energy, Generation, Conventional Energy, Marine Vessels and Equipment, CI and Hyper Converged, For type BR 1 in breakers and commercial applications interrupt rating
• Includes: BREQS125 Hold Down Screw and Cover
