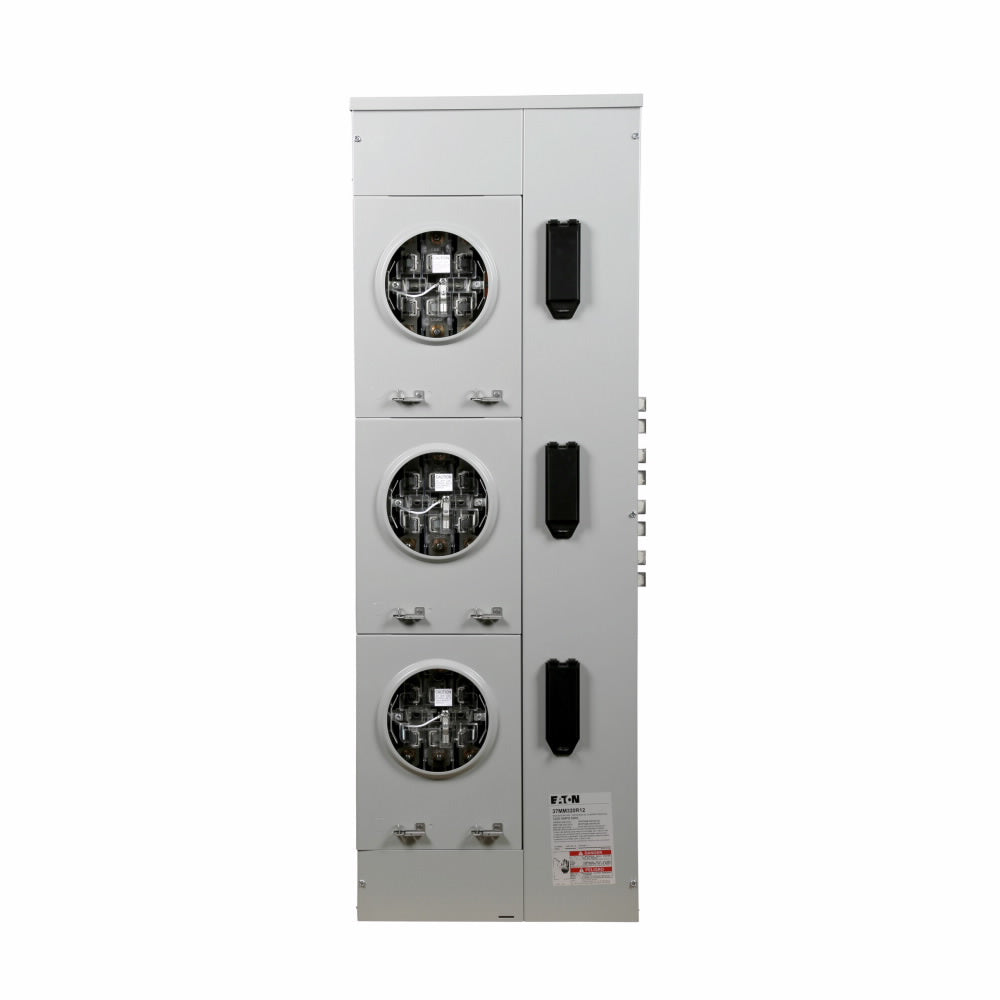

Eaton 37MM320R12 Meter Stack Module 200 A (8.75 in x 18.25 in x 52.63 in)

Product Description

Eaton 37MM320R12 is a commercial meter stack module rated for 208Y/120 VAC service with a 200 A module rating and a 100 kA short circuit rating. The bolted-on, combination indoor and outdoor NEMA 3R enclosure measures 8.75 in L x 18.25 in W x 52.63 in D and includes removable top, bottom and back plates for field knockouts. It is intended for light commercial three-phase metering and interconnection with other modules and residential stacks.

• Rated 208Y/120 VAC, three-phase service with 200 A module rating and 100 kA interrupt rating
• Combination indoor and outdoor NEMA 3R enclosure with bolted-on mounting and removable plates for field-installed knockouts
• Solid metal barrier separating meter sockets and tenant main breaker and UL listed for use as service entrance equipment

Product Highlights

Commercial three-phase meter stack module for light commercial metering with NEMA 3R enclosure and service entrance listing

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 37MM320R12
• Country of Origin: United States

Technical Specifications

• Manufacturer: Eaton
• Brand: EATON
• MPN: 37MM320R12
• Model/Series: 37MM
• Product Type: Commercial meter stack module
• Voltage Rating: 208Y/120 VAC
• Phase: 3-phase
• Amperage Rating: 200 A
• Socket Ampere Rating: 225 A
• Bus Rating: 1200 A
• Socket Configuration: Seven-jaw, 3-socket
• Bypass: Lever bypass
• Security: Ringless security
• Short Circuit Current Rating: 100 kA
• Mounting Type: Bolted-on
• Enclosure Type: NEMA 3R
• Dimensions: 8.75 in L x 18.25 in W x 52.63 in D
• Certifications: UL listed
• Compatible Breaker Series: EHD3, CCV3, CCVH3, CVS3, CV3, CVH3
