Eaton 3521-4W Telecom/Data Jack One Size

Product Description

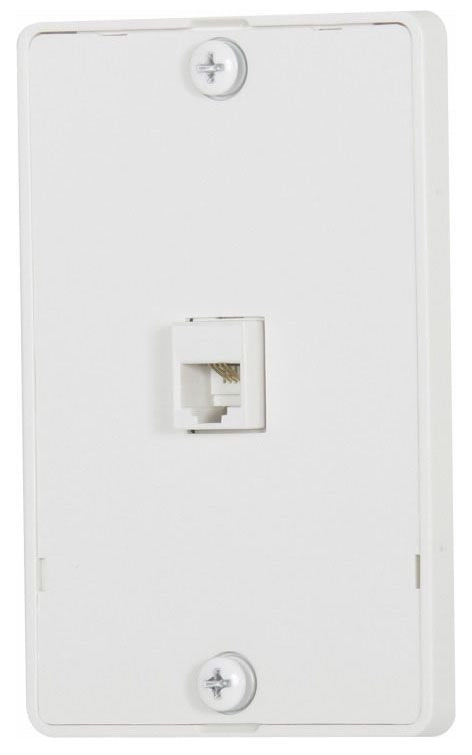

Eaton 3521-4W is a surface-mount telecom/data jack that provides a 4-conductor RJ11/RJ14 modular connection for residential and commercial telephone installations. It mounts to surface or device box and uses Type 630A screw terminals with color-notched terminations for wiring. Constructed of thermoplastic elastomer, it supports Category 3 applications including RJ11, RJ14 and RJ25 and carries UL, cUL and FCC approvals and RoHS compliance. Dimensions are approximately 3 x 4.7 x 0.6 inches.

• 4-conductor RJ11/RJ14 modular jack suitable for Category 3 telephone applications
• Type 630A screw terminals with color-notched terminations for wiring
• Surface or box mounting, single-gang; thermoplastic elastomer construction; UL, cUL and FCC approvals; RoHS compliant

Product Highlights

Surface-mount 4-conductor RJ11/RJ14 jack with Type 630A screw terminals; dimensions 3 x 4.7 x 0.6 in; UL/cUL/FCC and RoHS compliant.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3521-4W
• Country of Origin: China
