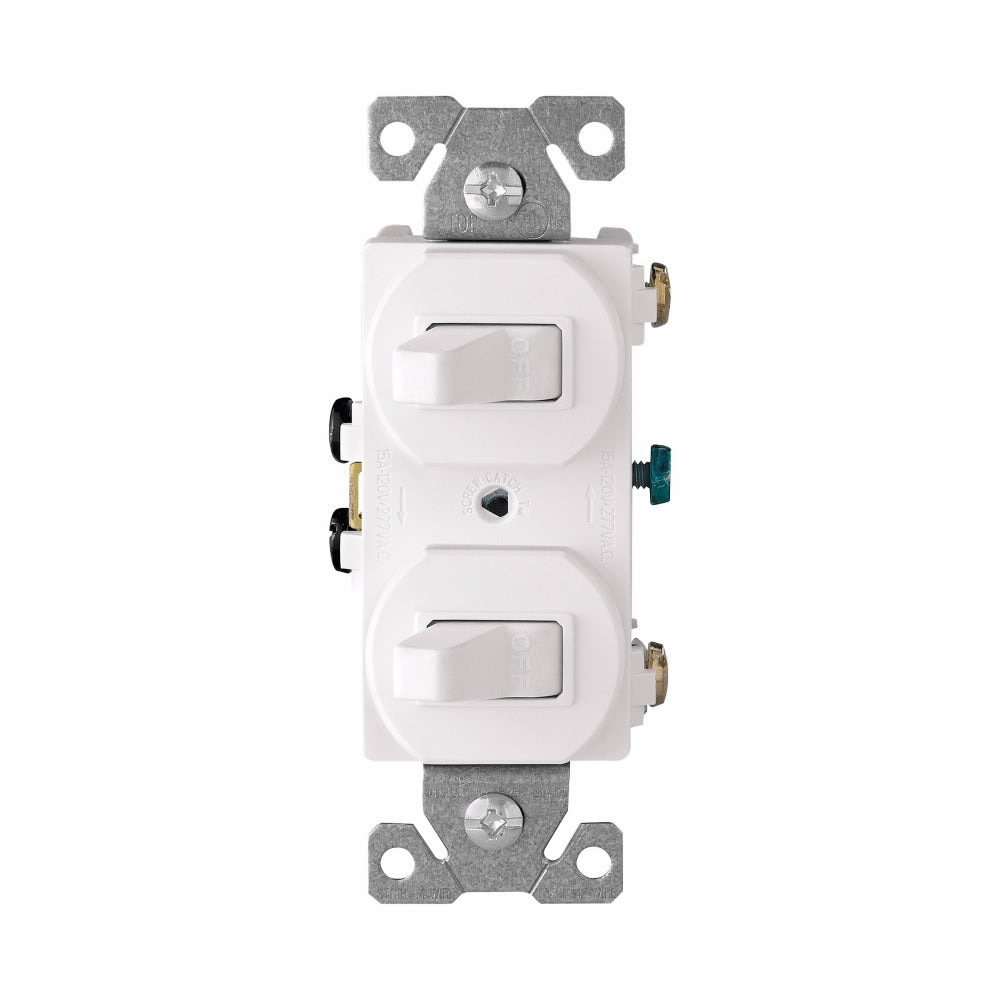

EATON 271W-BOX CWD SINGLE POLE STACK SWITCH

Product Description

The EATON 271W-BOX is a single pole stack switch designed for various applications. This device is rated for 15 A at 120 VAC. It features durable construction and is intended for surface mounting. The switch is compact, measuring four point one nine inches high, one point three seven inches wide, and zero point eight eight inches deep. It is suitable for commercial and non-residential applications.

• Screw connection for secure wiring
• Heavy duty brass contacts ensure durability
• Combination switch for versatile use

Product Highlights

This switch offers back and side wiring options. The grounding terminal screw is standard for safety. Receptacles have triple wipe line contacts for durability.

Product Information

Standard Information

• Manufacturer: EATON
• Application: Commercial and Non-Residential Applications

Technical Specifications

• Electrical Rating: 15 A at 120 VAC
• Number of Poles: 1
• Operating Cycles: 30000
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Material: Thermoplastic
• Mounting Type: Surface
• Size: 4.19 in H x 1.37 in W x 0.88 in D
• Standards/Approvals: UL 20|cULus Listed|CSA C22.2 File No. 10016|NOM 426 Certified
