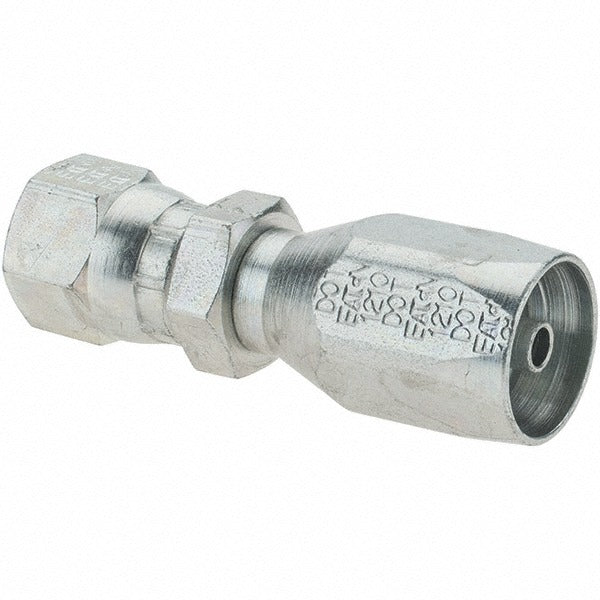

Eaton 24704N-604 Female Swivel Jic Hose Fitting 3/16 in

Product Description

The EATON 24704N-604 is a reusable female swivel hose fitting designed for hydraulic and fluid-transfer lines requiring a secure, leak-resistant JIC connection. Threaded at 7/16-20 JIC, it accepts 3/16-inch hose ID and is constructed from carbon steel for durability in demanding service environments. The swivel design allows the fitting to rotate during installation, reducing hose twist and making it easier to achieve proper alignment without stressing the hose assembly. Licensed HVAC technicians, plumbers, and fluid-systems mechanics install this type of fitting when building or repairing hydraulic or fuel-line hose assemblies.

This fitting is suited for low-to-medium pressure hydraulic lines, fuel systems, and general fluid-transfer applications where a 7/16-20 JIC female thread interface is required. The reusable design means the fitting can be disassembled from the hose and reinstalled, making it practical for service and repair work. It is appropriate for use in both light industrial and mobile equipment applications where carbon steel construction meets the service requirements.

Key Features

• 7/16-20 JIC female swivel thread for standardized, leak-resistant connections
• Accepts 3/16-inch hose ID for compatibility with common small-bore hydraulic and fuel hose
• Reusable construction allows disassembly and reinstallation without replacing the fitting
• Carbon steel material provides strength and durability in fluid-transfer service
• Overall length of 2.01 inches suits compact hose-end installations

Compatibility

Designed as a reusable OEM-style hose end fitting for hydraulic and fluid-transfer hose assemblies requiring a 7/16-20 JIC female swivel connection with 3/16-inch hose ID.

Installation Notes

Installation is typically performed by hydraulic system technicians or mechanics familiar with JIC fittings and hose assembly procedures. Before disassembling or replacing hose fittings, relieve all system pressure and depressurize the fluid circuit completely. Use the appropriate hose-end insertion and wrench tools for reusable fittings to avoid damaging the hose or fitting threads. Inspect the hose end for cuts, abrasion, or deformation before reassembly to ensure a reliable seal.
