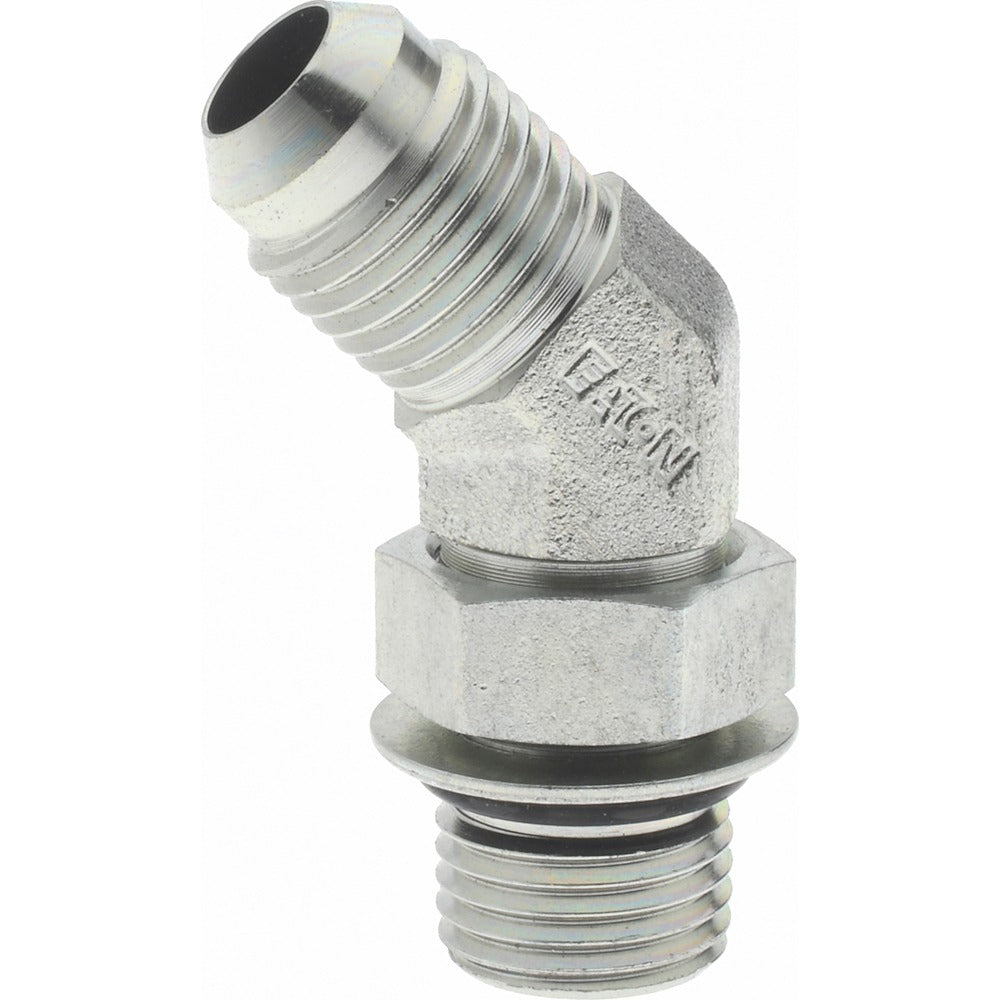

Eaton 2061-6-6S Steel 45 Deg Flared Tube Elbow 3/8 in

Product Description

The EATON 2061-6-6S is a 45-degree flared tube elbow fitting designed for high-pressure hydraulic and fluid power lines. It connects a 37-degree flared tube end to a male SAE O-Ring Boss (ORB) port, providing a secure, leak-resistant seal in demanding service environments. Machined from steel, this fitting handles working pressures up to 6000 psi and operates across a wide temperature range from -65 degrees F to 400 degrees F. It is specified by hydraulic system technicians, fluid power mechanics, and industrial maintenance professionals working on mobile equipment, machinery, and related systems.

This fitting is suited for hydraulic lines, lube systems, and fluid power circuits where a 45-degree directional change is needed between a flared tube and an ORB-ported component. The 3/8 inch tube OD and 3/8 inch male SAE O-Ring thread make it a common selection in mid-range hydraulic plumbing on construction equipment, agricultural machinery, and industrial installations. It meets SAE standard 070320 and carries a package quantity of one unit per order.

Key Features

• 45-degree elbow configuration with 37-degree flared tube end and male SAE ORB port
• Rated to 6000 psi maximum working pressure for high-pressure hydraulic service
• Wide service temperature range: -65 degrees F to 400 degrees F
• Steel construction for durability in industrial and mobile equipment applications
• Meets SAE 070320 standard
• 3/8 inch tube OD with overall length of 1.97 inches

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid power systems using 3/8 inch OD flared tubing and SAE O-Ring Boss ported components conforming to SAE 070320.

Installation Notes

Installation is performed by licensed hydraulic technicians or fluid power mechanics. Depressurize and drain the hydraulic system fully before removing or installing any fitting. Hand-tighten the ORB end to the port, then torque to the value specified by the equipment manufacturer for the port size. Inspect the O-ring for damage before assembly and replace it if any deformation or cracking is present.
