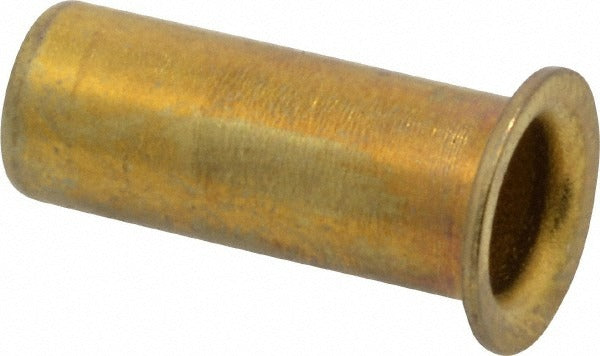

Eaton 2030X6 Compression Tube Support Fitting

Product Description

The EATON 2030X6 is a compression-style tube support fitting designed to secure and stabilize tubing runs in fluid and pneumatic systems. This fitting uses compression end connections to grip tubing mechanically without soldering or flaring, providing a reliable hold in both stationary and low-vibration applications. At 0.01 pounds, the 2030X6 is a lightweight hardware component typically installed by HVAC technicians, plumbers, and pipefitters during tubing layout and support work. It is a functional, single-purpose fitting that keeps tubing aligned and reduces stress at connection points.

The 2030X6 tube support is suited for use in residential and light commercial systems where compression-type tubing is routed along walls, joists, or equipment panels. It is appropriate for applications covered under Product Service Code 4720, which corresponds to pipe, tubing, hose, and fittings. Installers use this fitting where tubing requires intermediate support between terminal connections to prevent sagging, vibration damage, or contact wear.

Key Features

• Compression end connections allow tool-accessible, solder-free installation
• Lightweight construction at 0.01 pounds minimizes added load on tubing runs
• Single-piece tube support design secures tubing at intermediate span points
• Compatible with standard compression tubing configurations

Compatibility

Designed as an OEM-style compression tube support for use in systems utilizing standard compression-type tubing, consistent with Product Service Code 4720 fittings applications.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or pipefitter. Shut off system pressure and depressurize the tubing line before installing or adjusting any compression fitting or support. Ensure tubing is clean, cut square, and deburred before seating in the compression fitting. Follow applicable plumbing and mechanical codes, including IPC and IFGC guidelines, for tubing support spacing and fastening requirements.
