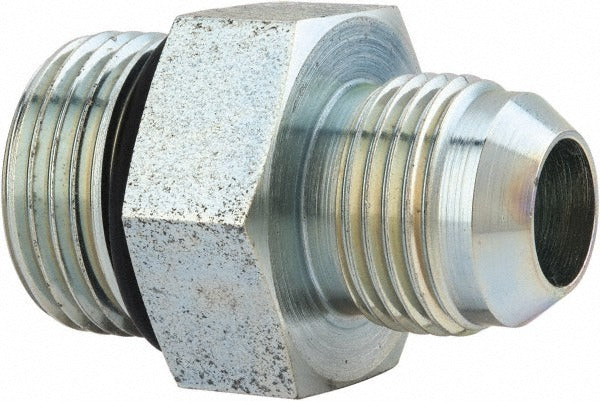

Eaton 202702-12-10S Flared Tube Connector 5/8 in Od

Product Description

The EATON 202702-12-10S is a steel flared tube straight thread connector designed to join 5/8 inch OD flared tubing to a 3/4 inch male SAE O-Ring Boss (ORB) port. The fitting uses a 37-degree flare angle on the tube end and an SAE O-Ring face seal on the male threaded end, delivering a leak-resistant connection rated to 9000 psi working pressure. It is built for hydraulic and fluid power lines where vibration resistance and high-pressure integrity are required. Licensed hydraulic technicians and fluid power mechanics install this fitting in industrial, mobile, and equipment-mounted hydraulic systems.

This connector is suited for high-pressure hydraulic plumbing in mobile equipment, industrial machinery, and fluid power circuits. The 37-degree flare-to-male ORB configuration is a standard interface in hydraulic hose and tube assemblies where tube lines terminate at ported manifolds, cylinders, pumps, or valves. The fitting is rated for operation from -40 degrees F to 250 degrees F, making it suitable for a wide range of ambient and fluid temperature conditions in demanding service environments.

Key Features

• 37-degree flare tube end mates with standard flared tube assemblies per SAE 070120
• Male SAE O-Ring Boss (ORB) thread end provides reliable, leak-resistant port connection
• 9000 psi maximum working pressure rated for high-pressure hydraulic service
• Operating temperature range of -40 degrees F to 250 degrees F
• Steel construction for durability in industrial and mobile equipment applications
• 5/8 inch OD tube size with 0.480 inch inside diameter and 1.86 inch overall length

Compatibility

Designed as a standard SAE 37-degree flare to male ORB straight thread connector for use in hydraulic tube assemblies conforming to SAE 070120 specifications.

Installation Notes

Installation is performed by qualified hydraulic technicians or fluid power mechanics. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect the flare seat and O-ring mating surface for damage or contamination before assembly. Follow SAE 070120 assembly guidelines for proper thread engagement and O-ring seating to achieve the rated working pressure without leakage.
