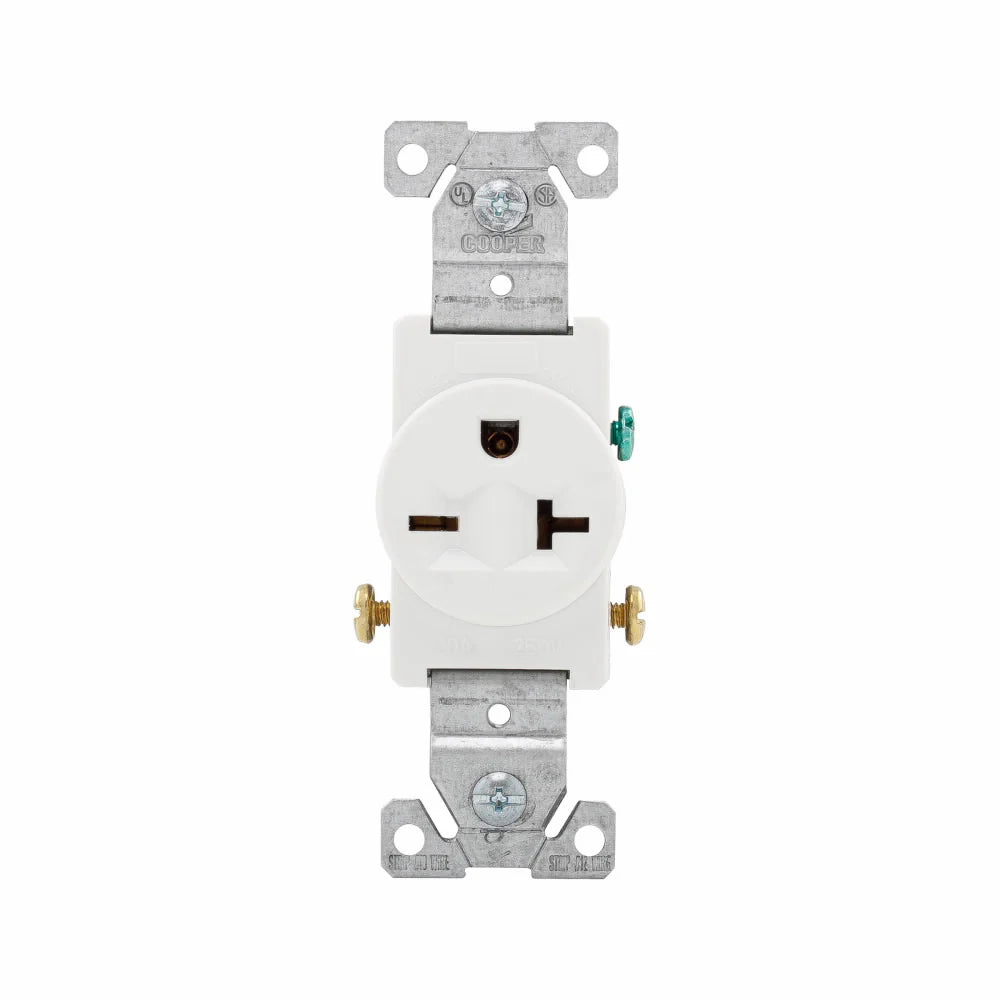

Eaton 1876W-BOX Single Straight Blade Receptacle 250 VAC 20 A NEMA 6-20R

Product Description

Eaton 1876W-BOX is a straight blade receptacle designed for commercial applications. It operates at 250 volts and 20 amperes with a 2-pole and 3-wire configuration. The device is tamper-resistant and meets the NEMA 6-20R rating standards.

• Rated for non-residential applications.
• Temperature range of -20 to 70 degrees Celsius.
• Side wire and screw terminal connection for easy installation.

Product Highlights

This receptacle is engineered for durability and safety in various installations, ensuring code compliance and reliable performance.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: 1876W-BOX

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• NEMA Rating: NEMA 6-20R
• Color: White
• Material: Nylon
• Dimensions: 0.83 in D
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -20 to 70 deg C
• Specifications Approvals: cULus Listed | UL 498 | NOM 426 Certified
