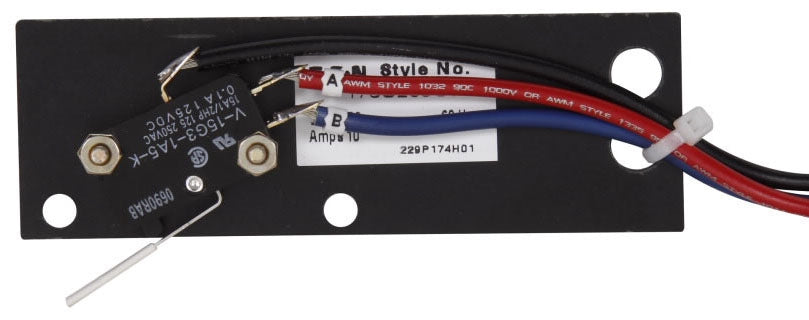

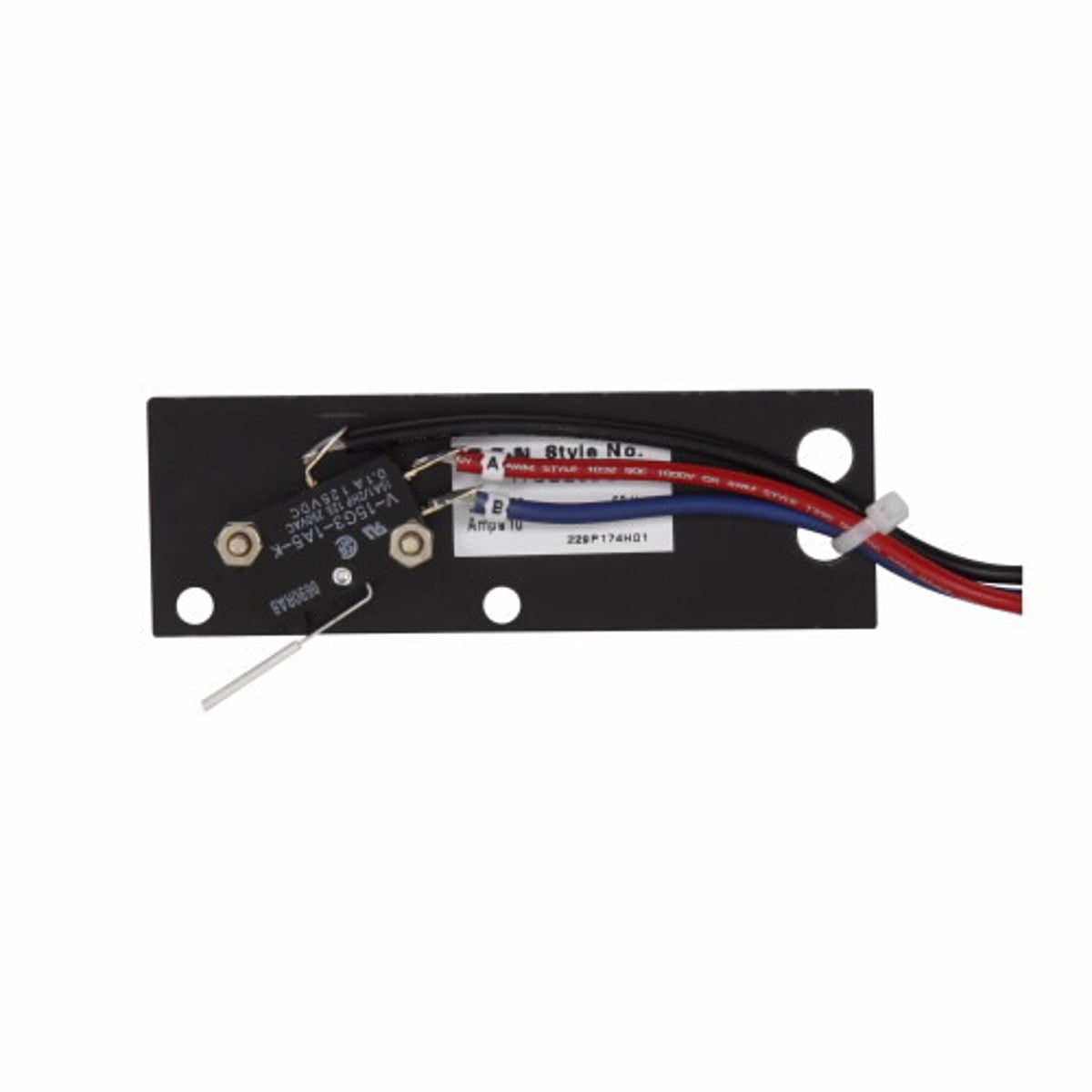

Eaton 178C265G05 Auxiliary Switch Kit 250 VAC (5.5 in x 3.2 in x 3 in)

Product Description

Eaton 178C265G05 is an auxiliary switch kit for Type DS disconnect switches that provides a 1A-1B contact configuration and is rated to 250 VAC. The unit permits field mounting for separate control circuit applications, includes three soldered, identified leads, and is compatible with 30 A, 60 A, and 100 A Type DS disconnect switches. Typical applications include commercial and institutional building installations. Dimensions are 5.5 in L x 3.2 in W x 3 in H.

• 1A-1B contact configuration rated to 250 VAC for control signaling
• Compatible with 30 A, 60 A, and 100 A Type DS disconnect switches; field mountable
• Includes three soldered, identified leads; dimensions 5.5 in L x 3.2 in W x 3 in H

Product Highlights

Auxiliary switch kit for Type DS disconnects; 1A-1B contacts; 250 VAC; three soldered leads; suitable for commercial and institutional applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 178C265G05
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 178C265G05
• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton
• Type: Auxiliary switch
• Contact Configuration: 1A-1B
• Voltage Rating: 250 VAC
• Suitable For Use With: 30 A, 60 A and 100 A Type DS disconnect switches
• Dimensions: 5.5 in L x 3.2 in W x 3 in H
• Weight: 0.1 lb
• Leads: Three soldered, identified leads
• Certifications: UL 508 (File No. E131568); CSA C22.2 No. 14 (File No. LR68551)
• Applications: Commercial / Institutional buildings and structures
• Country of Origin: United States
• UPC: 786679685051
• GTIN: 00786679685051
• Control Rating: 15 A, 1/3 HP
