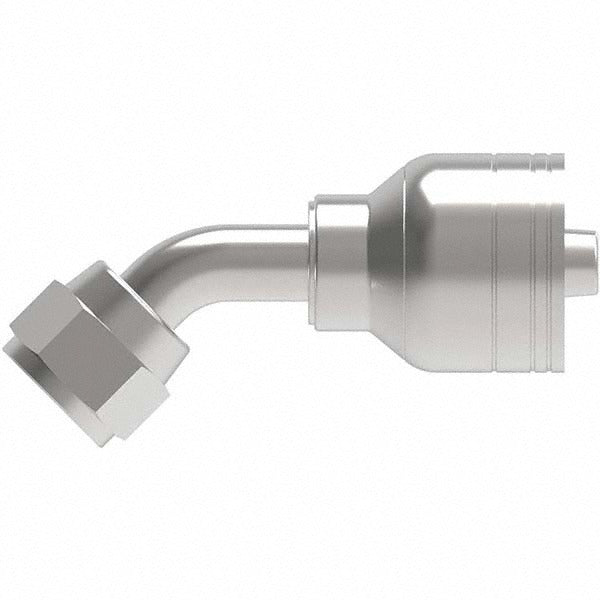

Eaton 16Z-696-BG Female Jic Swivel 45 Elbow 1 Inch

Product Description

The EATON 16Z-696-BG is a female JIC swivel 45-degree elbow hydraulic hose fitting manufactured from steel. It connects hydraulic hose assemblies to ports and lines at a 45-degree angle, reducing stress on hose ends and improving routing in tight spaces. The fitting uses a JIC 37-degree flare seating surface and a 1-5/16-12 threaded connection. With a 1.0-inch hose inside diameter and an overall length of 4.52 inches, it is sized for high-demand hydraulic circuits. Licensed hydraulic technicians and mobile equipment mechanics are the primary installers of this fitting in industrial and mobile hydraulic systems.

This fitting belongs to the EATON Z Series and is designed for use in hydraulic systems that require a female JIC swivel connection at a 45-degree offset. It is suited for both stationary industrial hydraulic machinery and mobile hydraulic equipment. The swivel feature allows the hose to be positioned after assembly without twisting the hose body, which is important in crowded equipment bays or where hose routing must change after initial installation. Compatible hose series are listed in the Compatibility section below.

Key Features

• 45-degree elbow angle eases hose routing in confined installations
• Female JIC swivel design allows post-assembly hose positioning without hose twist
• JIC 37-degree flare seating surface for reliable, metal-to-metal sealing
• 1-5/16-12 threaded connection for secure port engagement
• Steel construction for durability in high-pressure hydraulic service
• Meets SAE J1176 standard

Compatibility

For use with EATON hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with JIC flare fittings and SAE J1176 assembly procedures. Depressurize and discharge stored energy from the hydraulic system completely before removing or installing any fittings. Hand-tighten the swivel nut onto the port, then torque to the fitting manufacturer specification using a calibrated torque wrench. Inspect the JIC 37-degree flare seating surface for nicks or damage before final assembly to ensure a leak-free connection.
