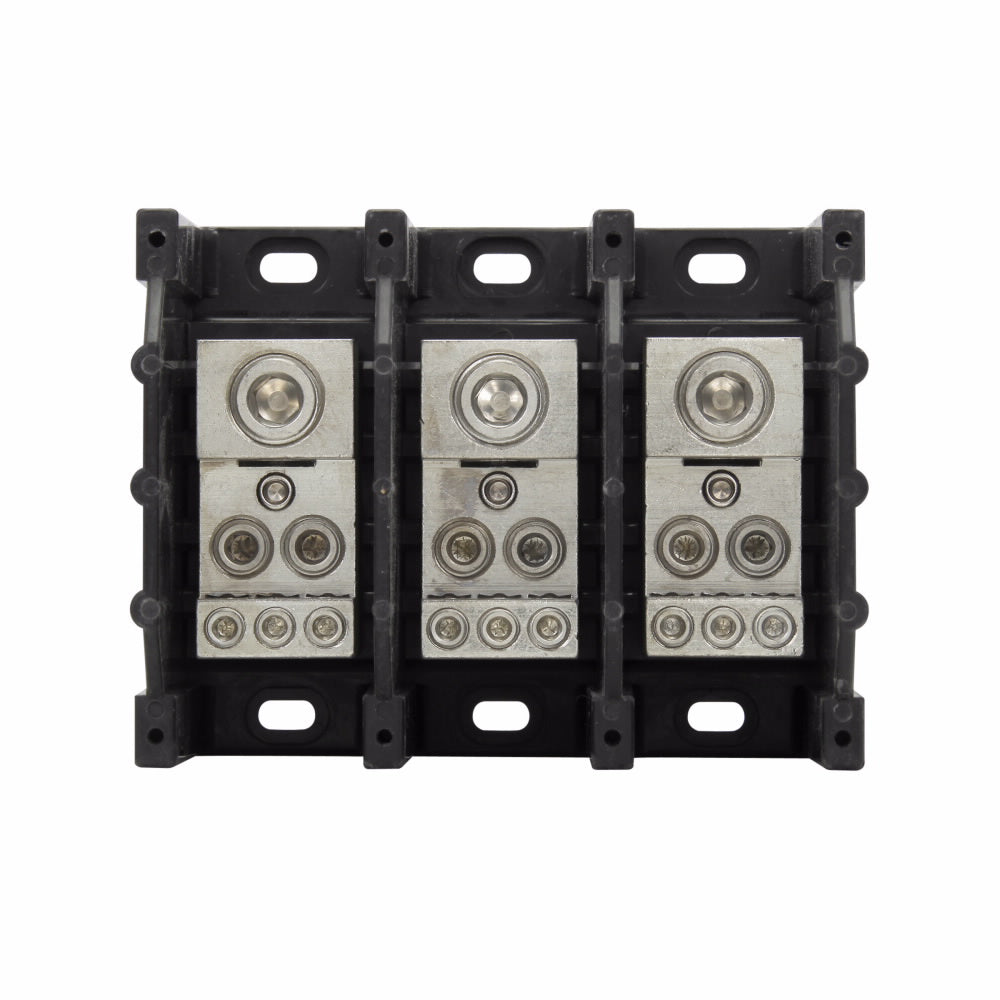

Eaton 16332-3 BUS 3P POWER DISTR. & TERM. BLOCK 350-6 TO 2-14AWG

Product Description

Bussmann 16332-3 power distribution block is designed for electrical assemblies. This product supports a voltage rating of 600 VAC/VDC and an amperage rating of 310 A. It features three poles, each with one primary connection and five secondary connections. The block accommodates wire sizes from six AWG to three hundred fifty kcmil, making it suitable for various applications.

• Rated for use with wire sizes from 6 AWG to 350 kcmil
• UL recognized for industrial control panel use
• Multiple configurations for flexibility in wiring

Product Highlights

This power distribution block offers significant flexibility and ease of installation, along with robust electrical specifications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171226902

Technical Specifications

• Amperage Rating: 310 A
• Voltage Rating: 600 VAC/VDC
• Dimensions: 5.21 in L x 4 in W x 3.32 in H
• Material: Aluminum/Thermoplastic
• Number of Poles: 3
• Series: 163
• Short Circuit Current Rating: 10 kA
• Standards/Approvals: CE Certified, CSA 6228-01/53787, RoHS Compliant, UL 1059, UL 508A
