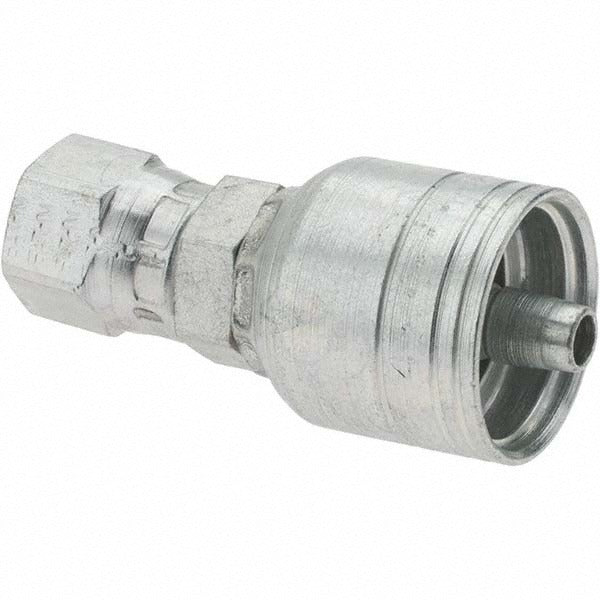

Eaton 14784 Hydraulic Hose Swivel Adapter Jic Steel

Product Description

The EATON 14784 is a hydraulic hose swivel adapter designed to connect flexible hydraulic hose lines to JIC-threaded ports in high-pressure fluid systems. Built from steel, this fitting accommodates a 4 mm hose size with a 7/16-20 thread and is rated for use with 1/4 inch hose diameter. The swivel design allows the hose to rotate during installation, reducing torsional stress on the hose assembly and simplifying routing in tight spaces. Part of the TTC series, this adapter is a standard component used in mobile hydraulic, industrial, and fluid power systems.

This adapter is suited for use in hydraulic systems found in construction equipment, agricultural machinery, and industrial fluid power circuits. The JIC 37-degree flare connection type is widely used across mobile and stationary hydraulic applications. Technicians installing or replacing hydraulic hose assemblies in tight or awkward routing configurations will benefit from the swivel function, which helps achieve proper hose alignment without stressing the fitting or hose end.

Key Features

• Swivel design reduces torsional stress during hose installation and routing
• JIC 37-degree flare thread configuration for broad hydraulic system compatibility
• Steel construction for durability in high-pressure hydraulic service
• 7/16-20 thread size with 1/4 inch hose diameter rating
• TTC series fitting for consistent dimensional standards
• Sold in package quantity of 5 units per pack

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a JIC swivel adapter with 7/16-20 thread and 4 mm hose size designation.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect mating JIC flare seats for damage or contamination prior to assembly. Do not overtighten swivel fittings, as this can damage the flare seat or restrict swivel movement.
