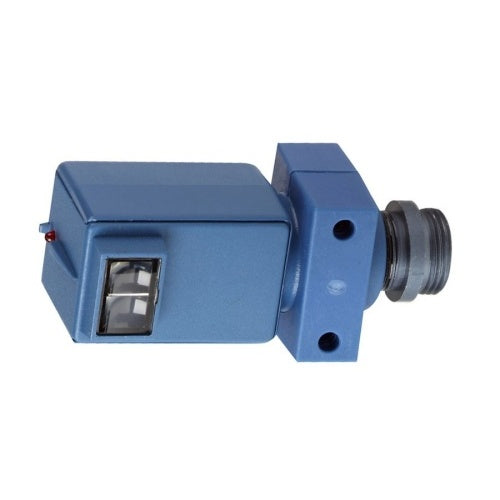

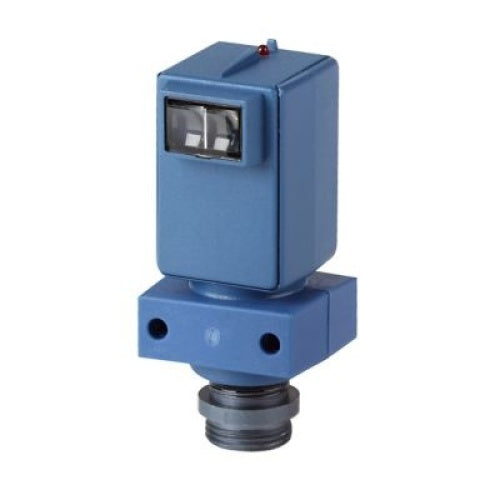

Eaton 1357AD6513 Photoelectric Sensor 72 in AC L1 Switch/DC NPN Open Collector Output

Product Description

The EATON 1357AD6513 is a 55 series photoelectric sensor that offers durability and high optical performance. This cost-effective, self-contained unit operates on both AC and DC power. It features a diffuse reflective sensing method with a 72-inch sensing range and an infrared sensing beam. The sensor has a 10 ms response time and includes a 6.6 ft cable.

• High optical performance includes 100 ft thru-beam range and 6 ft diffuse reflective range
• Both AC and DC operation in a single unit
• Short circuit protected solid state outputs on AC/DC and DC only versions (except thru-beam)

Product Highlights

This photoelectric sensor is ideal for noncontact sensing of objects with extended sensing ranges. It features a built-in swivel bracket for easy mounting and precise adjustment.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1357AD6513

Technical Specifications

• Output Type: AC L1 Switch/DC NPN Open Collector
• Sensing Beam: Infrared
• Response Time: 10 ms
• Enclosure Type: NEMA 1/3/4/6/12/13
• Voltage Rating: 20 to 264/15 to 30 VAC/VDC
• Connection Type: 6.6 ft Cable
• Frequency Rating: 50/60 Hz
• Operating Temperature: -40 to 158 deg F
• Environmental Conditions: 95% Non-Condensing Relative Humidity
• Series: 55 Series
• Wattage: 2 W
• Sensing Range: 72 in
• Amperage Rating: 300 mA
• Type: Photoelectric Diffuse Reflective Sensor
• Construction Style: Rectangular
• Output Mode: Dark Operate
• Output Configuration: NPN
• Temperature Rating: -40 to 70 C (-40 to 158 F)
• Load Current - max: 300 mA
• Component: Photoelectric Sensor
• Primary brand: Eaton
• Order code / Manufacturer SKU: 1357AD6513
• Manufacturer product status: Commercialized
• UPC code: 782114106822
• Manufacturer description: 55 Series Photoelectric Sensor - Sensor distance 72" - Body Noryl - 300mA AC/DC at 20-264Vac/15-30Vdc - 6.6ft (2m) Cable - 20...264Vac 50/60Hz or 15...30Vdc (NPN) input - Latching short circuit - Diffuse Reflective - 6ft (1.8m)
• Product length/depth: 1.83"
• Product height: 3.19"
• Product width: 1.64"
• Catalog Notes: Ranges based on a 90% reflectance card
• Input voltage: 20-264 Vac at 50/60Hz 15-30Vdc (NPN)
• Certifications: CSA Certified / UL Listed
• Contact rating: 300mA AC/DC at 20-264Vac/15-30Vdc
• Contact configuration: DC -- NPN open collector / AC -- L1 switched
• Enclosure material: Lens -- nylon / Body -- noryl
• LED indicator: Output status -- red
• Switch type: Photoelectric
• Protection: Latching short circuit
• Operating temperature - max: 158 F
• Operating temperature - min: -40 F
• Operating mode: Diffuse reflective
• Cable type: Polyvinyl Chloride (PVC)
• Sensor type: Diffuse reflective
• Environmental rating: NEMA 1 NEMA 3 NEMA 4 NEMA 6 NEMA 12 NEMA 13
• Maximum AC current: 300mA
• Maximum DC current: 300mA
• Material: Noryl
