Eaton 1356A-6517 Cutler Hammer Long Range, Bare Bones, Proximity, 30VDC, Cable

Product Description

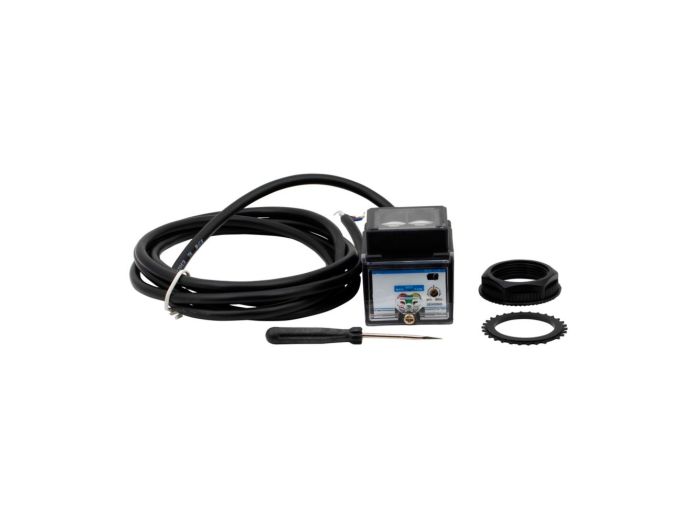

The Eaton 1356A-6517 Cutler Hammer is a 55 Series Photoelectric Sensor with a right-angle design and a sensing distance of 24 inches. Operating on 10-30 VDC, it features NPN and PNP open collector outputs with a maximum DC of 50 mA. Includes a 6.6 ft cable and auto reset short circuit protection.

• Photoelectric diffuse reflective sensor
• NPN/PNP Open Collector
• Auto reset short circuit

Product Highlights

The Eaton 1356A-6517 photoelectric sensor offers durability and high optical performance in a cost-effective, self-contained package.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1356A-6517

Technical Specifications

• Alternate Mfr Part Number: 1356A-6517
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 1356A-6517
• Type: Photoelectric Diffuse Reflective Sensor
• Construction Style: Rectangular
• Sensing Range: 24 in. (610mm)
• Voltage: 10-30V DC
• Output Mode: Light Operate
• Output Configuration: NPN/PNP
• Connection Type: Cable
• Connection Size: 1.8m (6 ft.)
• Sensing Position: Side
• Beam Type: Infrared
• Response Time: 1ms
• Material: Noryl
• Enclosure Rating NEMA: NEMA 1, 3, 4, 6, 12, 13
• Temperature Rating: -40 to 70°C (-40 to 158°F)
• Load Current - max: 250 mA
• MPN: 1356A-6517
• Part #: 1356A-6517
• Category: Proximity Switch
• Weight: 1.00 lbs
• Manufacturer: Eaton
• Family Series: Eaton Photoelectric Sensors
• Power Type: DC
• Nominal Voltage: 12 VDC, 24 VDC
• Operating Mode: Light On
• Output Type: PNP/NPN
• Max Load Current: 3 A
• Composition: Non-Metallic
• Protection Rating: NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
• Approvals: CSA, UL
• Net Weight: 0.5875 lbs
• Gross Weight: 0.5875 lbs
• Input Voltage: 10-30 Vdc
• Contact Configuration: NPN and PNP Open Collector
• Switch Type: Photoelectric
• Cord Length: 72 FT
• Maximum Dc Current: 50 mA
• Connection: 6.6 Ft. ( 2m ) Cable
• Cable Type: PVC
• Enclosure Material: Body: Noryl, Lens: Nylon
• Sensor Type: Diffuse Reflective
• Contact Rating: 50 mA at 30 Vdc
• Environmental Rating: NEMA 1,3,4,6,12,13
• Protection: Auto reset short circuit
• Led Indicators: Red output status
• Product Length/Depth: 1.83 IN
• Product Height: 3.19 IN
• Product Width: 1.64 IN
• Product Weight: .5875 LB
• Compliances: Contact Manufacturer
• Certifications: UL Listed
