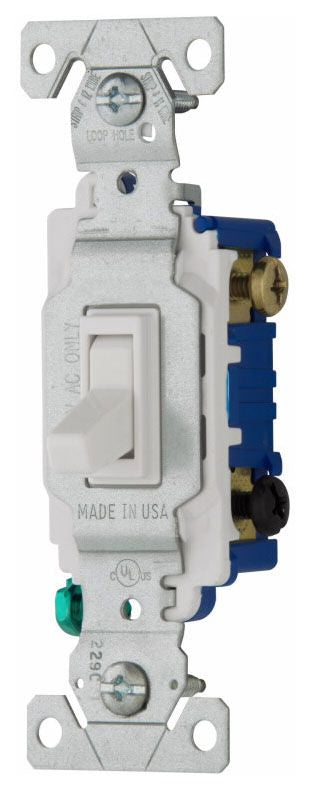

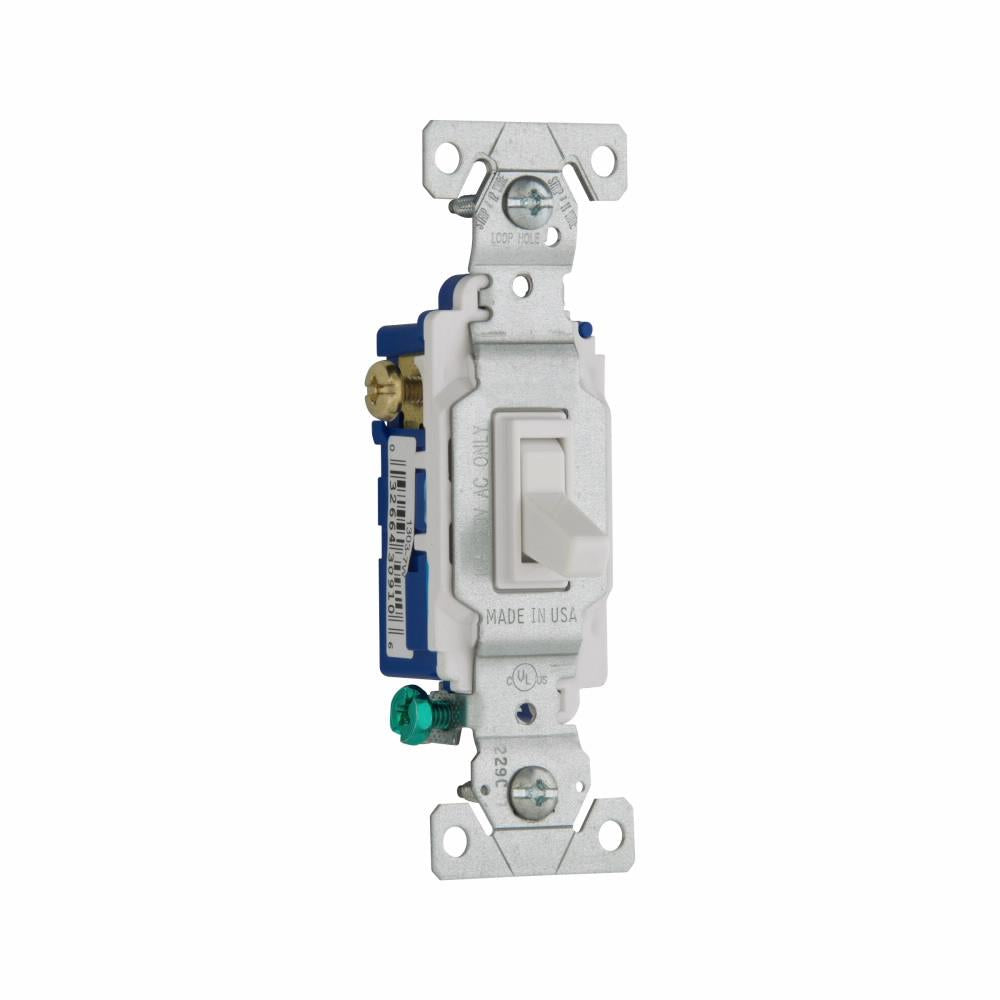

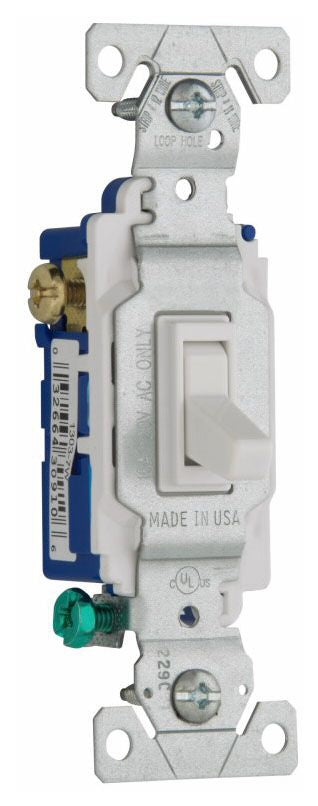

Eaton 1303-7W Toggle Switch 15 A 3-Way

Product Description

The Eaton 1303-7W is a 3-way grounding standard/specification grade toggle switch. The longer, wider strap provides more contact area, virtually eliminating floating installations. The industrial design cam action mechanism ensures quiet switch action. It features a patented built-in wire stripper for 14 and 12 AWG wire to speed installation.

• Long, broad mounting strap virtually eliminates floating installations
• Push-in terminals accept 14 AWG solid wire for quick installation
• Side wire terminals accept up to 10 AWG solid wire
• 3-way switches feature additional push-in common termination for feed thorough tapping

Product Highlights

This Eaton toggle switch has tri-combo screws that accept slotted, Phillips and Robertson head tools for installation flexibility.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1303-7W
• Country of Origin: USA

Technical Specifications

• Actuator: Framed Toggle
• Color: White
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Material: Polycarbonate
• Mounting: Wall
• Number of Poles: 1
• Series: 1300
• Terminal Type: Side Wire/Push-In/Threaded
• Type: 3-Way Grounding Standard/Specification Grade
• Voltage Rating: 120 V
• Amperage Rating: 15 A
• Power Rating: 1/2 HP at 120 Volt AC, 2 HP at 240 Volt AC
• Switch Type: 3-Way
• Wiring: Back, side, and push wire
• Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen
• Poles: Single-Pole, Three-Way
• Current Rating: 15 Amp
• Operation Type: 3-Way
• Application: Residential
• Approval: UL (Canada and US), UL 20, CSA C22.2, NOM 426
• RoHS Compliant: True
• Toggle Material: Thermoplastic, PVC
• Contact Material: Silver Alloy
• Strap Material: Galvanized Steel
• Ground Clip Material: Brass
• Terminal Screw Material: Brass
• Ground Screw Material: Zinc Plated Steel
• Moveable Contact Arm Material: Brass
• Dielectric Strength: 1500 Volt
• Flammability Rating: UL 94-V2
• Wire Size: 14 to 10 AWG
• Temperature Rating: -20 to 60 Deg C
• Applicable Standard: NAFTA
• Wiring Method: Side wire and push wiring method
• Standards/Approvals: NAFTA Compliant|NOM 426|RoHS Compliant|UL 20 File No. E18704|UL 94 V-2 Flammability Rated|UL Listed
• Product Name: Eaton toggle switch
• Catalog Number: 1303-7W-BOX
• UPC: 032664750908
• Product Length/Depth: 1.31 in
• Product Height: 3.28 in
• Product Width: 0.88 in
• Compliances: RoHS Compliant, NAFTA
• Certifications: cULus Listed, NOM
• Product Type: Toggle switch
• Mounting Method: Flush
• Connector Type: Screw
• Load type: ELV, Fan, INC, CFL, Motor Control, FLR, HAL, MLV, LED
• Number of Ways: Three-way
• Allowable Wire Size: #14-10 AWG
• Torque Rating: 14 lbf-inch
• SKU(s): 1303-7W
• Length: 1.31 in
• Height: 3.28 in
• Wire: #14-10 AWG
• SKU: 1303-7W-BOX
• Special Features: Box
