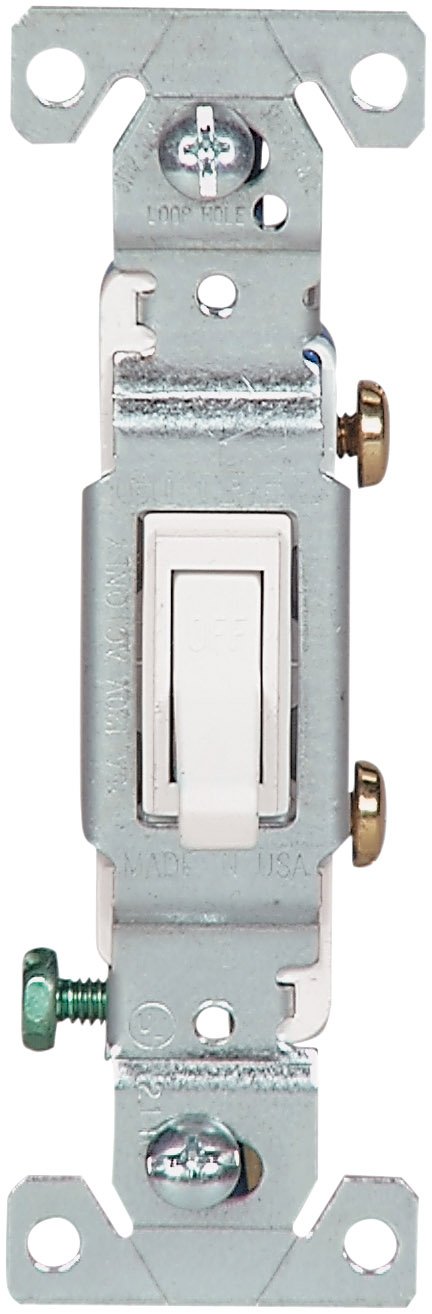

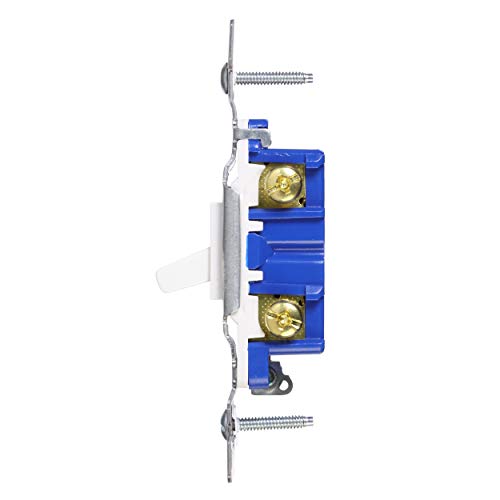

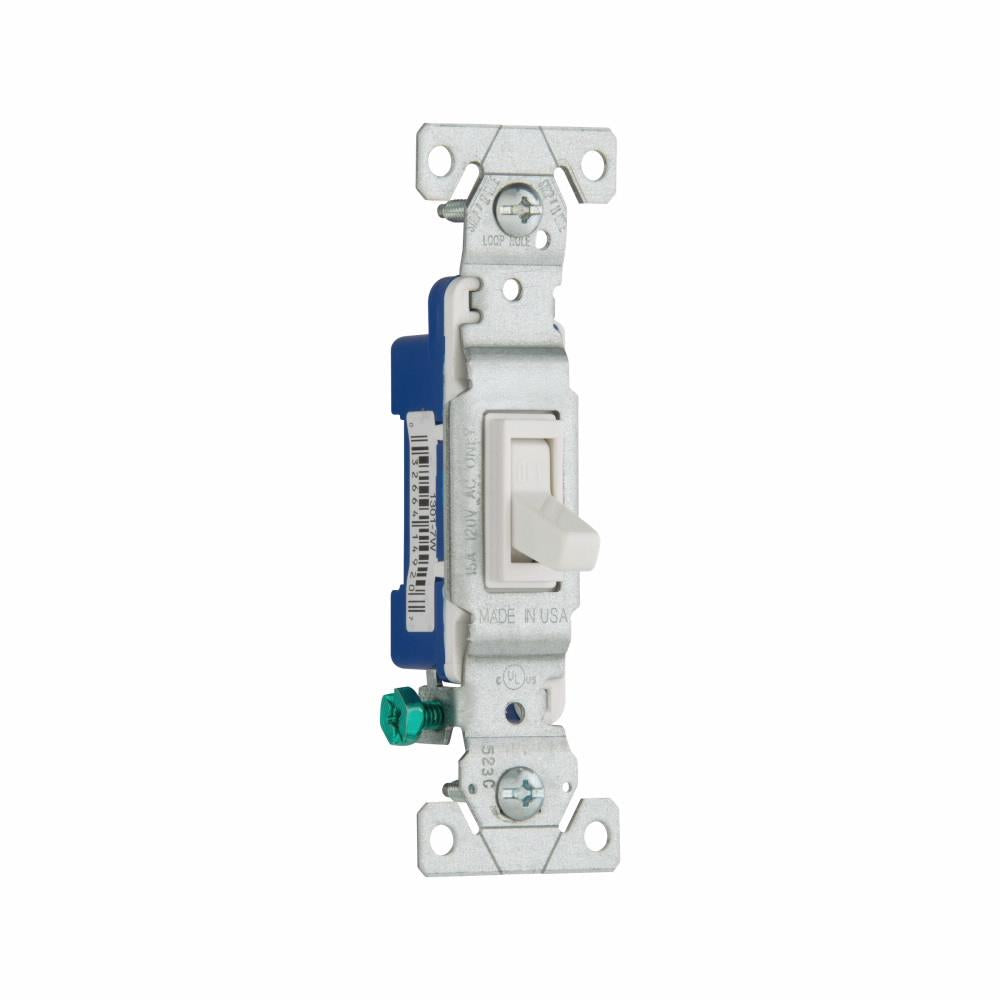

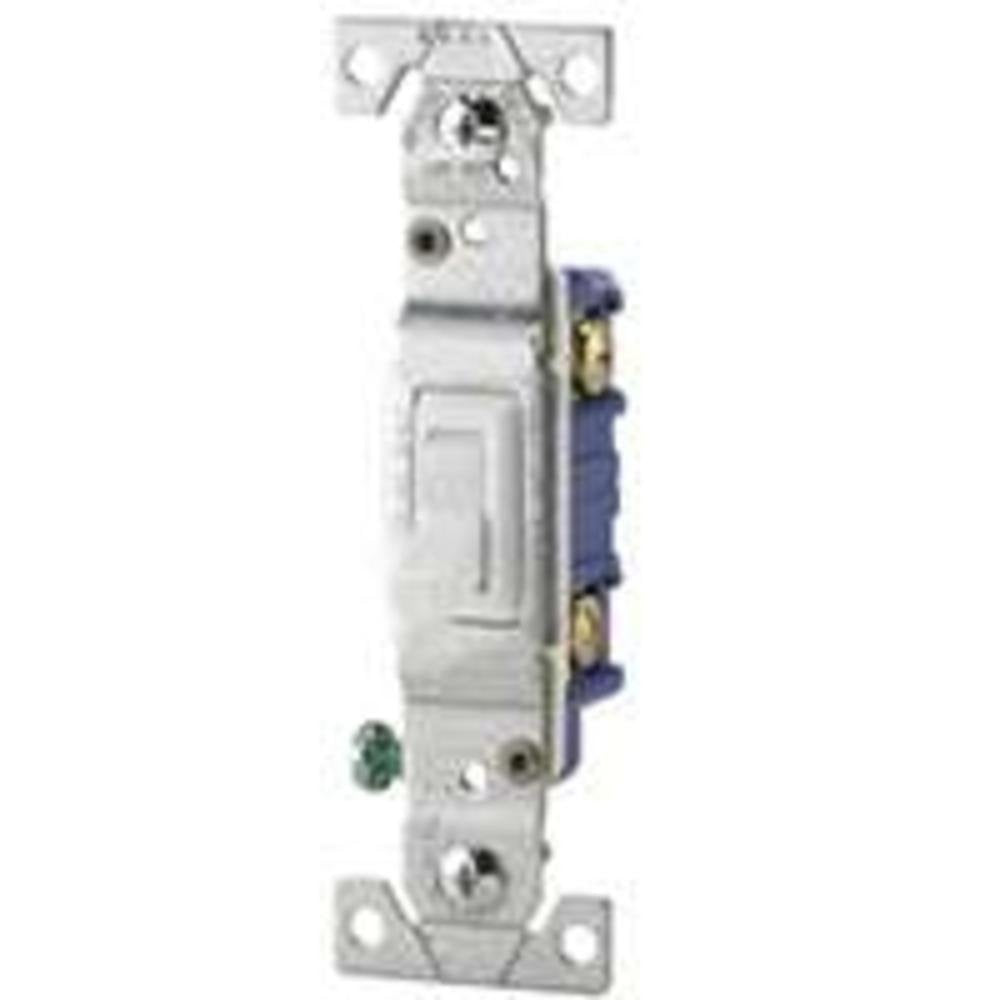

Eaton 1301-7W Wiring 15 Amp Single-pole Grounding Toggle Switch

Product Description

The EATON 1301-7W is a 15 Amp single-pole grounding toggle switch suitable for residential applications. The toggle switch features a long, broad mounting strap that provides more contact area to the wall board, virtually eliminating floating installations. It has an industrial design cam action mechanism for quiet switch action.

• Features a patented built-in wire stripper for 14 and 12 AWG wire.
• Equipped with push-in terminals that accept 14 AWG solid wire.
• Side wire terminals accept up to 10 AWG solid or stranded wire.

Product Highlights

This EATON toggle switch is ideal for motor control, fan, LED, incandescent, ELV, MLV, CFL, fluorescent, and halogen loads.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1301-7W
• Country of Origin: USA

Technical Specifications

• Color: White
• Material: Metal
• Switch Style: Toggle Switch
• Mounting Type: Wall Mount
• Connector Type: Quick Connect
• Current Rating: 15 Amp
• Operation Mode: ON-OFF
• Specification Met: UL, CUL
• Included Components: Toggle Switch
• Actuator: Framed Toggle
• Number of Poles: 1
• Series: 1300
• Terminal Type: Side Wire/Push-In/Screw
• Type: Toggle
• Voltage Rating: 120 V
• Power Rating: 1/2 HP at 120 Volt AC
• Wiring: Side, Push
• Application: Residential
• Wire Size: 14 to 10 AWG
• Temperature Rating: -4 to 140 Deg C
• Flammability Rating: UL 94-V2
• Wiring Method: Side wire and push wiring method
• Allowable wire size: #14-10 AWG
• Torque rating: 14 lbf-inch
