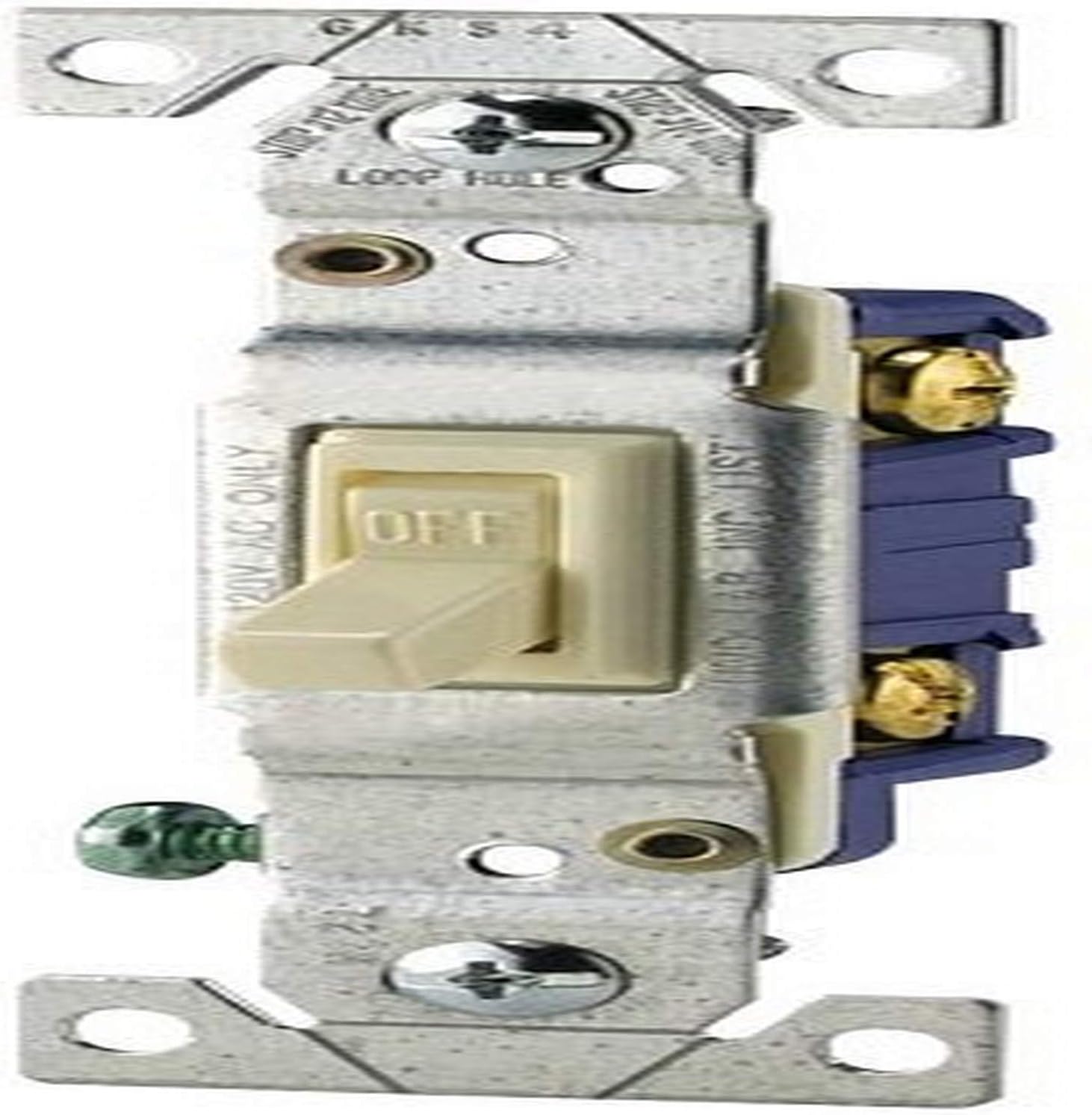

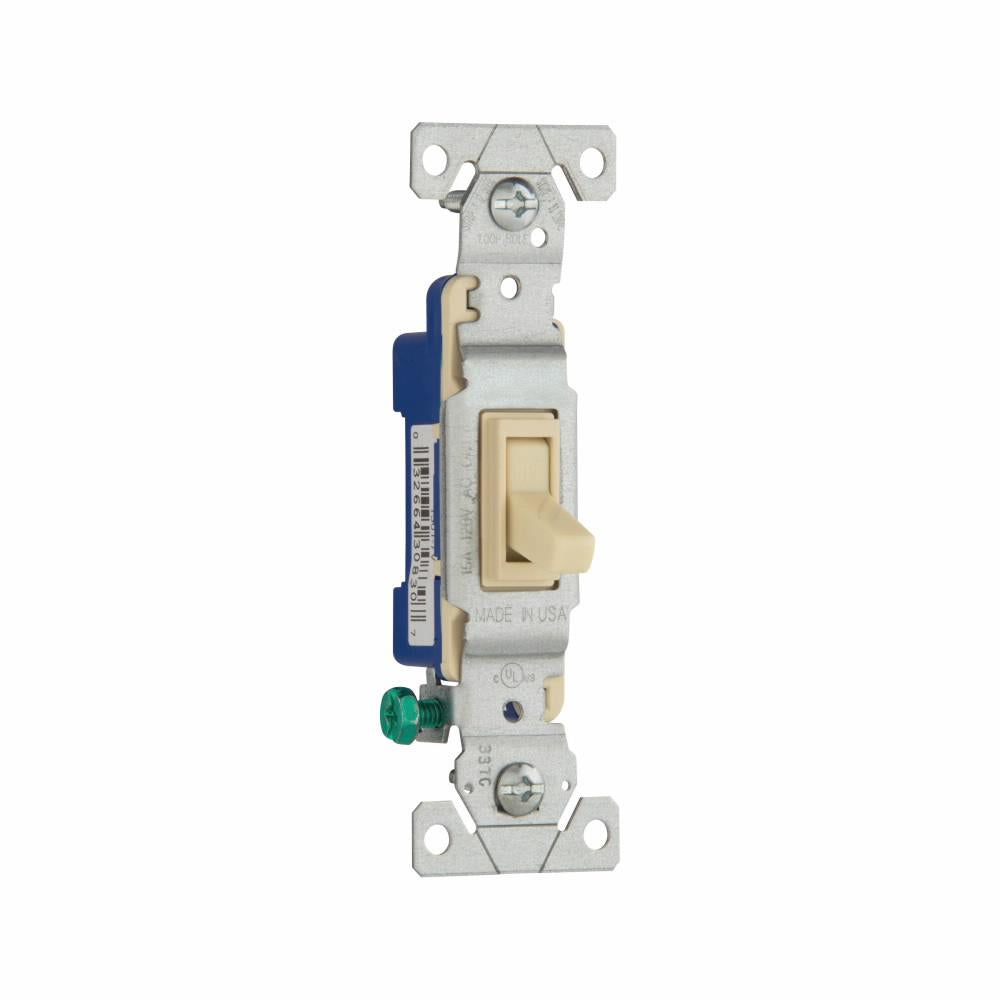

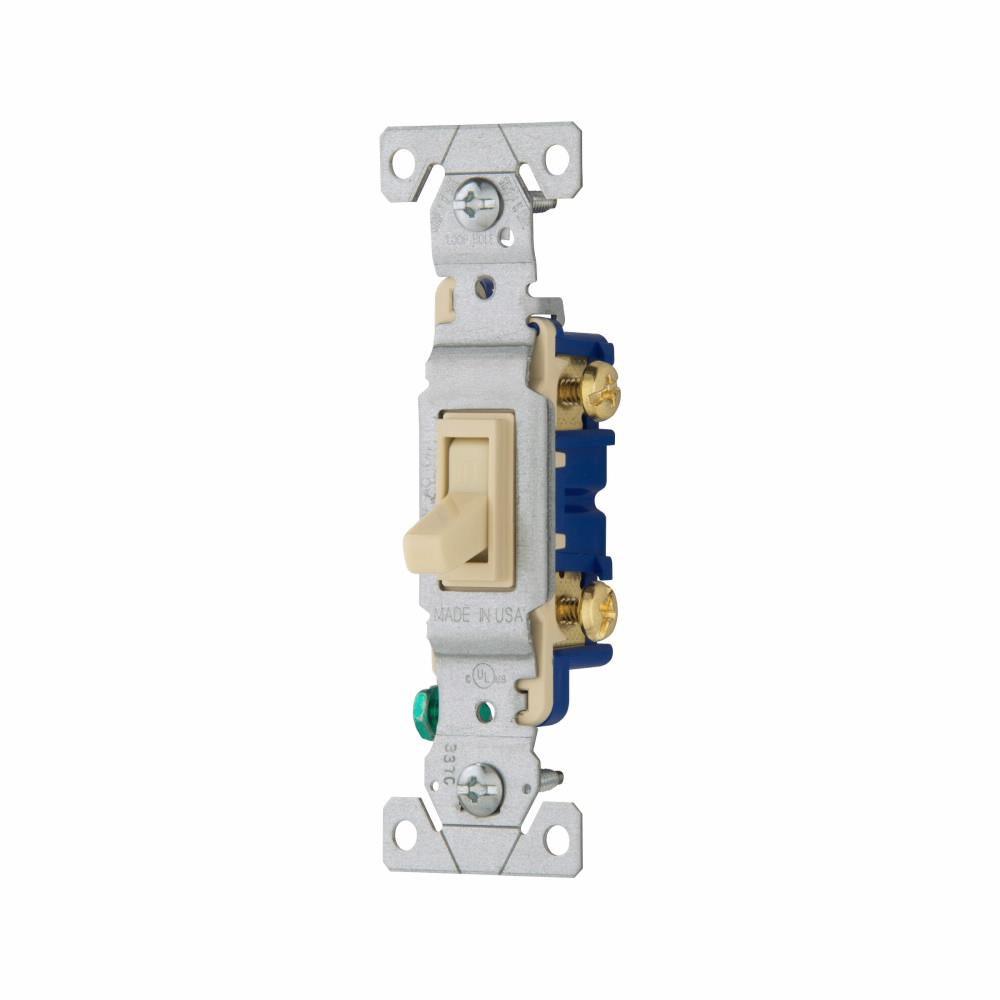

Eaton 1301-7V Wiring 15 Amp Single-pole Grounding Toggle Switch

Product Description

The Eaton Wiring 1301-7V is a 15 Amp single-pole grounding toggle switch. The longer, wider strap provides more contact area, virtually eliminating floating installations. The industrial design cam action mechanism ensures quiet switch action. It also features a patented built-in wire stripper for 14 and 12 AWG wire.

• Long, broad mounting strap virtually eliminates floating installations
• Push-in terminals accept 14 AWG solid wire for quick installation
• Side wire terminals accept up to 10 AWG solid wire

Product Highlights

This Eaton toggle switch is suitable for residential applications and features side and push screw connections.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1301-7V
• Country of Origin: USA

Technical Specifications

• Color: Ivory
• Voltage: 120 VAC
• Material: Plastic
• Switch Style: Toggle Switch
• Mounting Type: Wall Mount
• Connector Type: Quick Connect
• Current Rating: 15 Amps
• Operation Mode: ON-OFF
• Specification Met: UL, cUL
• Included Components: Toggle Switch
• Actuator: Framed Toggle
• Number of Poles: 1
• Series: 1300
• Terminal Type: Side Wire/Push-In/Screw
• Type: Toggle, Auto-Grounding
• Voltage Rating: 120 V
• Amperage Rating: 15 A
• Power Rating: 1/2 hp
• Brand: EATON
• Load Type: Motor Control; Fan; LED; Incandescent; ELV; MLV; CFL; Flourescent; Halogen
• Poles: Single-Pole
• Wiring: NO.14-10 AWG
• Mounting: Flush
• Connection: Side and push; Screw
• Application: Residential
• RoHS Compliant: True
• Toggle Material: Thermoplastic, PVC
• Contact Material: Silver Alloy
• Strap Material: Galvanized Steel
• Ground Clip Material: Brass
• Terminal Screw Material: Brass
• Ground Screw Material: Zinc Plated Steel
• Moveable Contact Arm Material: Brass
• Dielectric Strength: 1500 Volt
• Flammability Rating: UL 94-V2
• Wire Size: 14 to 10 AWG
• Temperature Rating: -20 to 60 Deg C
• Applicable Standard: NAFTA
• Motor: 1/2 hp motor
• Product Name: Eaton toggle switch
• Catalog Number: 1301-7V
• UPC: 032664750885
• Product Length/Depth: 1.31 in
• Product Height: 3.28 in
• Product Width: 0.88 in
• Product Weight: 0.16 lb
• Compliances: RoHS Compliant NAFTA
• Certifications: cULus Listed NOM
• Product Type: Toggle switch
• Wiring method: Side and push
• Switch type: Single-pole
• Mounting method: Flush
• Connector type: Screw
• Load type: MLV INC Fan CFL HAL LED ELV Motor Control FLR
• Allowable wire size: #14-10 AWG
• Torque rating: 14 lbf-inch
• Item Type Name: Toggle Switch
• Unit Count: 1.0 Count
