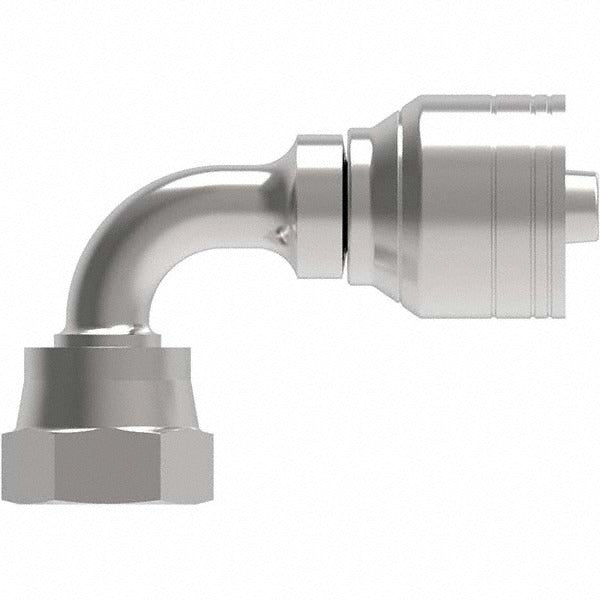

Eaton 12Z-A30-BG Female Ors Swivel 90 Elbow 12mm 1-14

Product Description

The EATON 12Z-A30-BG is a female ORS swivel short drop 90-degree elbow hydraulic hose fitting manufactured from steel. It is designed to connect hydraulic hoses to ports and components in high-pressure fluid power systems, allowing a right-angle transition while maintaining a leak-free ORS (O-Ring Seal) interface. The swivel design permits hose routing adjustments during assembly without twisting the hose. With a 12mm hose size, a 1-14 thread size, and a 1-inch hose diameter, this fitting suits a range of mobile and industrial hydraulic applications. Licensed trades and hydraulic system technicians are the typical installers.

This fitting is used in hydraulic plumbing assemblies where a 90-degree elbow transition is required and space constraints favor a short-drop configuration. It is applicable in mobile equipment, construction machinery, agricultural equipment, and industrial hydraulic circuits. The FOR-SEAL shaft type is compatible with ORS porting standards, ensuring a positive seal via the O-ring face seal design. The 1-1/8 inch hex size allows use of standard open-end or crow-foot wrenches during installation.

Key Features

• Female ORS swivel design allows hose orientation adjustment without hose twist
• Short drop 90-degree elbow configuration suits tight-clearance routing
• FOR-SEAL shaft type provides O-ring face seal interface for leak-resistant connections
• Steel construction for durability in high-pressure hydraulic environments
• 1-1/8 inch hex size for installation with standard wrenches

Compatibility

Designed as an OEM-style replacement hydraulic hose fitting for high-pressure fluid power systems using 12mm hose size, 1-14 thread, and ORS porting standards.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with fluid power systems. Depressurize and de-energize the hydraulic system completely before removing or installing any fittings. Inspect the O-ring seating surface and replace the O-ring if damaged before assembly. Tighten to the fitting manufacturer's specification using the correct wrench on the hex flats; do not use pliers or pipe wrenches on the hex body.
