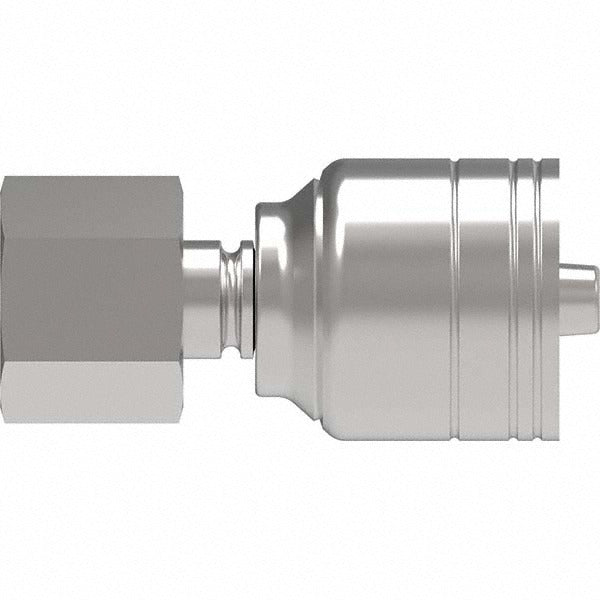

Eaton 12Z-75C-BG Hydraulic Hose Female Swivel Din 24 Fitting

Product Description

The EATON 12Z-75C-BG is a female swivel DIN 24 seat heavy-duty hydraulic hose fitting manufactured from steel. It is designed for use on metric hydraulic hose assemblies requiring a secure, leak-resistant swivel connection at the hose end. The fitting accepts a 3/4 inch hose diameter and features an M36 x 2.00 thread size, conforming to the DIN 24 seat standard. The swivel design allows the fitting to rotate during assembly, reducing hose twist and simplifying installation in tight or confined plumbing runs. This fitting is installed by hydraulic system technicians and fluid power mechanics working on industrial, mobile, or agricultural equipment.

This fitting is suited for hydraulic systems that specify DIN 24 seat heavy-series connections, commonly found in mobile equipment, agricultural machinery, and industrial hydraulic circuits. The metric thread and heavy-duty seat configuration make it appropriate for higher-pressure applications where a robust, reliable hose-end connection is required. It is a direct replacement or new-assembly fitting for 3/4 inch metric hose lines requiring a female swivel termination.

Key Features

• Female swivel design allows rotation during assembly to prevent hose twist
• DIN 24 seat heavy-duty configuration for robust, high-pressure service
• M36 x 2.00 metric thread size for precise, compatible engagement
• Fits 3/4 inch hose diameter with 1-13/16 inch hex for standard wrench use
• Steel construction for durability in demanding hydraulic environments

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for 3/4 inch metric hydraulic hose lines requiring a female swivel DIN 24 seat heavy connection with M36 x 2.00 thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and bleed the hydraulic system completely before removing or installing any fittings. Use the appropriate open-end or combination wrench on the 1-13/16 inch hex to tighten to the fitting manufacturer's recommended procedure without over-torquing. Inspect the DIN 24 seat surface for nicks or debris before assembly to ensure a proper seal.
