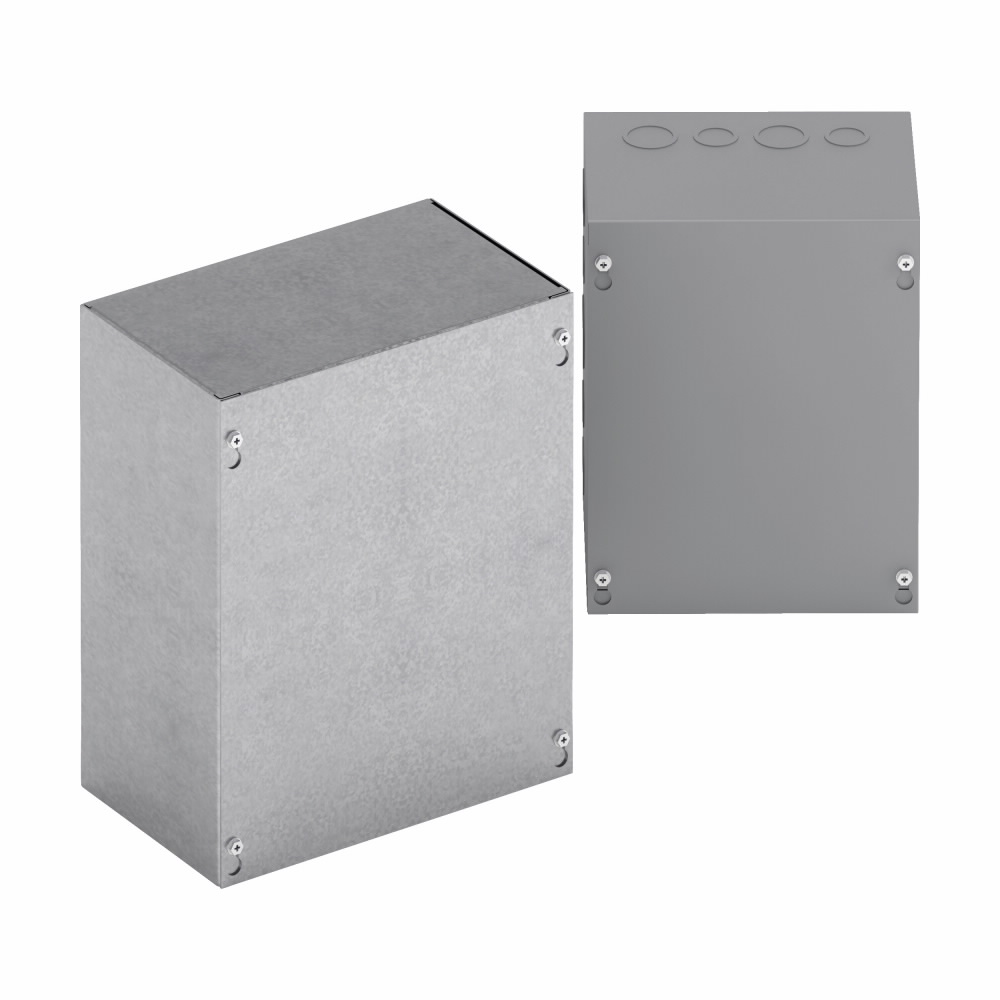

Eaton 12124SCGVNK Nema 1 Junction Box Screw Cover

Product Description

The EATON 12124SCGVNK is a Type 1 NEMA 1 junction box from the B-Line series, designed for surface-mounted indoor electrical enclosure applications. Built from galvanized steel, this enclosure measures 12 inches in height, 12 inches in width, and 4 inches in depth. It features a small single-door screw cover design with no knockouts and thru holes, giving installers a clean starting point for custom field modifications. Electricians use this box in commercial and light industrial settings where a dust-resistant, indoor-rated steel enclosure is required for housing wiring connections, terminal blocks, or control components.

This enclosure is suited for indoor dry-location installations in commercial buildings, light manufacturing facilities, and mechanical rooms. The NEMA 1 rating addresses basic protection against contact with enclosed equipment and light dust. The surface-mount configuration mounts directly to walls, panels, or structural surfaces without requiring a recessed cutout. The no-knockout, thru-hole configuration is appropriate when field-drilled or field-punched entry points are preferred over pre-formed knockouts.

Key Features

• NEMA 1 Type 1 rating for indoor dry-location use
• Galvanized steel construction for durability and corrosion resistance in typical indoor environments
• Screw cover single-door design for secure access and tool-required entry
• No-knockout design with thru holes for fully custom conduit entry placement
• Surface-mount configuration eliminates need for wall cutout
• Part of the Eaton B-Line series SCGV NK enclosure family

Compatibility

Designed as an OEM-style surface-mount enclosure for indoor NEMA 1 electrical junction and wiring applications in commercial and light industrial installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits before opening or wiring the enclosure. Conduit entries should be field-drilled or punched to the required trade size; use appropriate conduit connectors and fittings rated for the application. Verify the installation location remains a dry indoor environment to maintain the NEMA 1 rating.

Technical Specifications

• Enclosure Type: NEMA 1 Type 1
• Height: 12 inches
• Width: 12 inches
• Depth: 4 inches
• Material: Galvanized Steel
• Cover Style: Screw Cover Single Door
• Knockout Style: No Knockout Thru Holes
• Mounting: Surface Mount
• UPC: 782051002331

Standard Information

• Brand: EATON
• Manufacturer Part Number: 12124SCGVNK
