Product Description

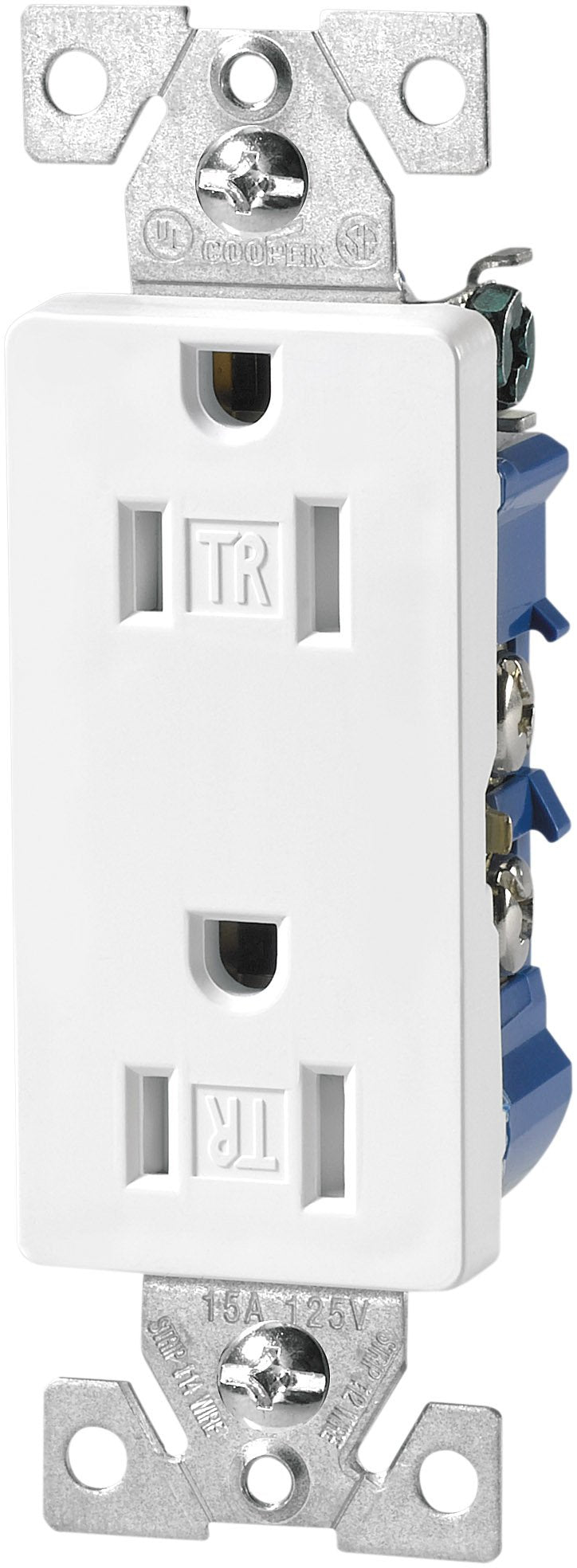

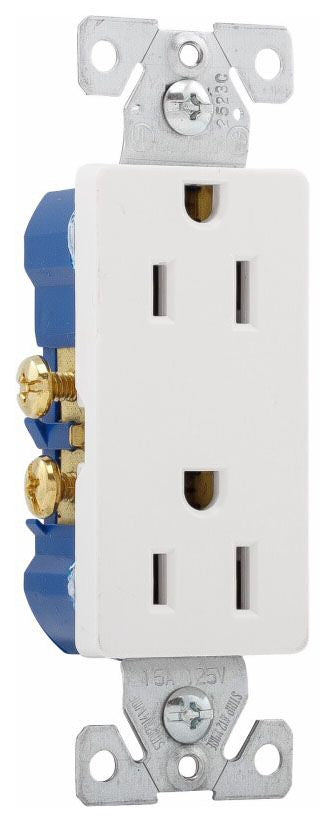

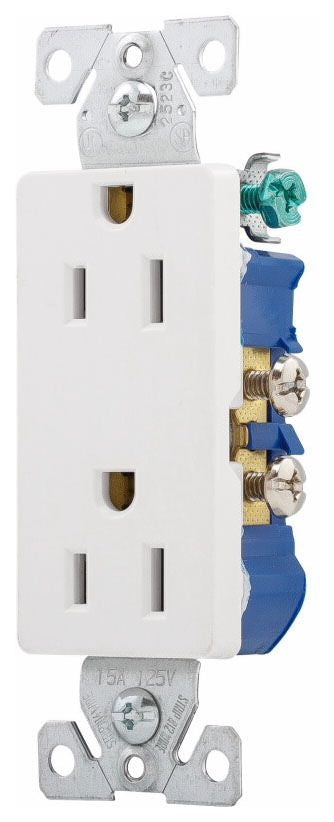

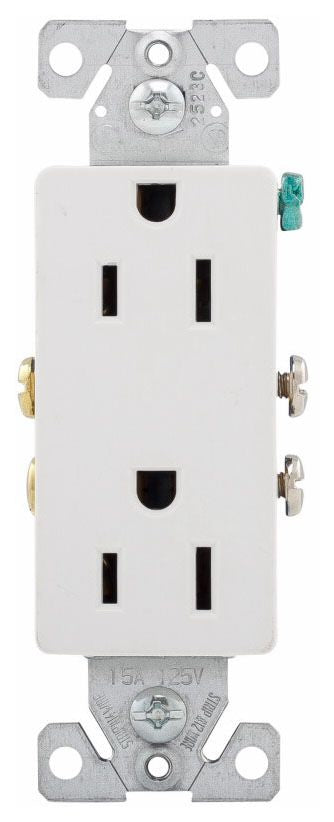

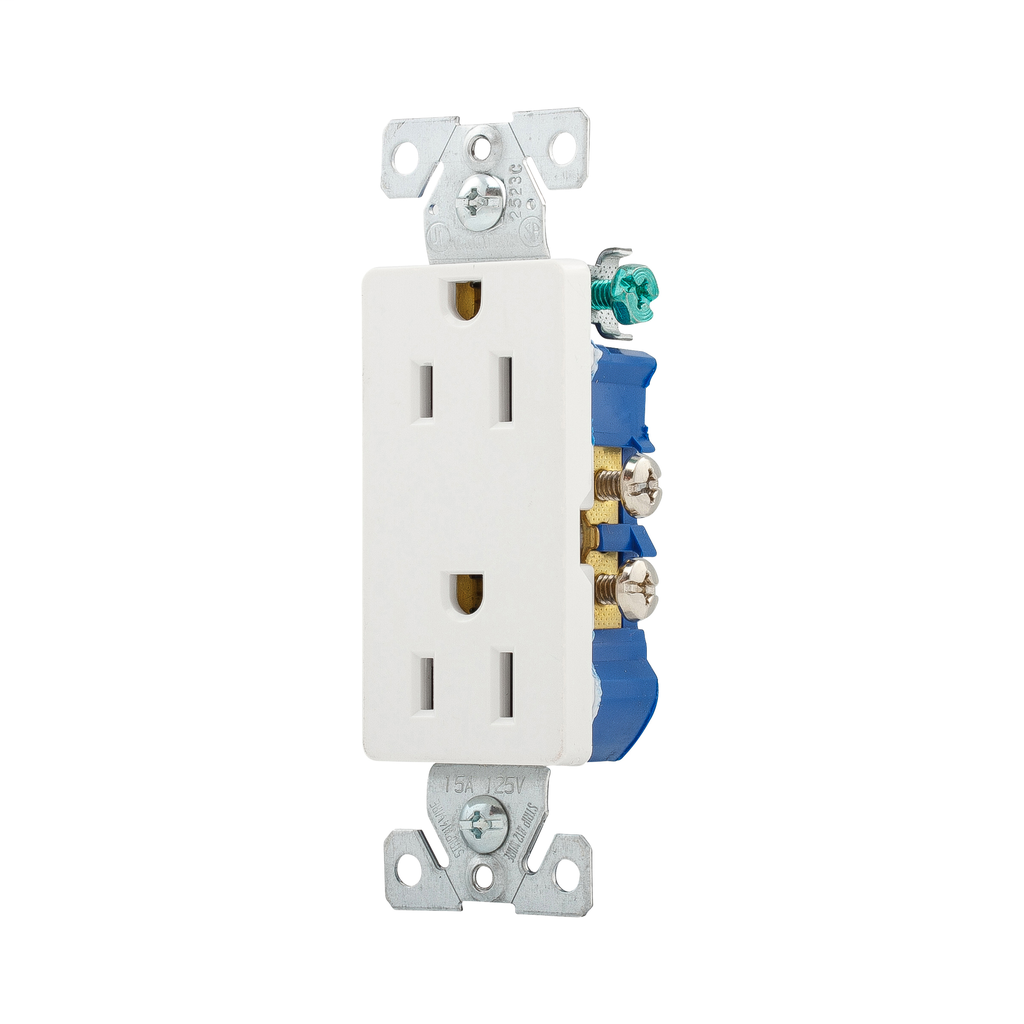

The EATON 1107W decorator duplex receptacle complies with 2014 NEC Article 406.12. The longer, wider strap provides 40% more contact area to the wall board. Push-in terminals accept 14 AWG solid wire for quick installation. Features a high impact-resistant thermoplastic face and back body and double-wipe ground contacts.
- Compliant with 2014 NEC Article 406.12
- Push-in terminals accept 14 AWG solid wire
- Side wire terminals accept up to 10 AWG solid wire
Product Highlights
This decorator duplex receptacle has a thermoplastic construction and is suitable for indoor use. It features tri-combo screws and easy access split circuit break-off tab.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 1107W
-
Country of Origin: USA
Technical Specifications
-
Type: Decorator duplex receptacle
-
Brand: Eaton
-
Color: White
-
Grade: Standard Grade
-
Width: 0.69 in
-
Height: 3.81 Inch
-
Length: 1.3 Inch
-
Voltage: 125 Volt
-
Amperage: 15 Amp
-
Material: Thermoplastic
-
Sub Brand: Eaton Wiring Devices
-
Applications: STD GRD RECEPTS DECR
-
Mounting Type: Flush
-
Conductor Size: 14-10 AWG
-
Connection Type: Push and Side Wire
-
Number of Poles: 2 Pole
-
Number of Wires: 3 Wire
-
Dielectric Strength: 125 VAC
-
Environmental Conditions: Indoor Use Only
-
Manufacturer: EATON
-
Model / MPN: TR1107W-BOX
-
NEMA Rating: NEMA 5-15R
-
Standards/Approvals: UL 498|CSA Certified|NOM Certified
-
Terminal Type: Push-In/Side Wire
-
Voltage Rating: 125 VAC
-
Constructional Feature: Durable, Impact Resistant
-
Configuration: 5-15R
-
Current Rating: 15 Amp
-
Ground Type: Grounding
-
Wiring: Back/Side
-
Approval: UL (Canada and US), UL498, CSA C22.2, NOM 426
-
RoHS Compliant: RoHS Compliant
-
Contact Material: Brass Alloy
-
Screw Material: Brass/Nickel Plated Steel
-
Temperature Rating: -20 to 60 Deg C
-
Applicable Standard: ANSI, NAFTA
-
Product Name: Eaton residential grade decorator duplex receptacle
-
Catalog Number: 1107W
-
Product Length/Depth: 1.3 in
-
Compliances: RoHS Compliant, NAFTA
-
Certifications: UL, NOM, Federal Specification Classification 6233 01
-
Product Type: Residential grade
-
Device type: Receptacle
-
Amperage Rating: 15A
-
Voltage rating: 125V
-
Contact material: Brass
-
Application: Commercial/residential
-
Device grade: Standard grade
-
Wiring method: Side and push
-
Mounting method: Flush
-
Number of poles: Two-pole
-
Style type: Decorator
-
Packaging type: Core pack
-
Connection type: Screw
-
Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
-
NEMA configuration: 5-15R
-
Torque rating: 14 lbf-inch
-
Design type: Straight blade
-
Face/body material: Impact-resistant thermoplastic
-
Receptacle type: Duplex
