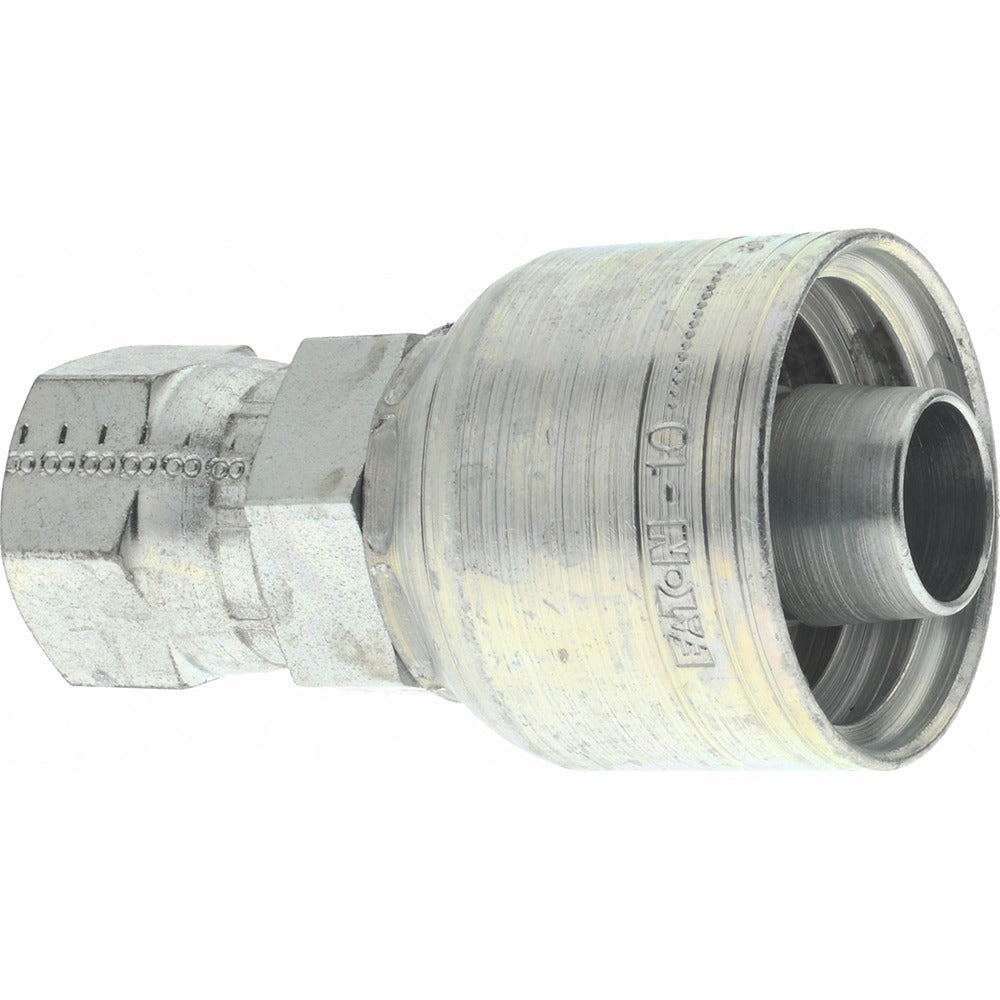

Eaton 10Z-608-BG Hydraulic Hose Female Swivel Fitting

Product Description

The EATON 10Z-608-BG is a female swivel fitting designed for use with hydraulic hose assemblies in fluid power systems. Built from steel with a straight configuration and threaded connection, this fitting accepts a 5/8-inch hose diameter and uses a 3/4-16 thread size conforming to SAE J1176 standards. The swivel design allows for rotational adjustment during assembly, reducing hose stress and simplifying routing in tight spaces. It is part of the Eaton Z series and is typically installed by hydraulic technicians and fluid power specialists working on mobile or industrial hydraulic circuits.

This fitting is suited for hydraulic hose termination in both mobile equipment and stationary industrial applications. It is compatible with a range of Eaton hose series, making it a commonly stocked replacement or new-build component on service trucks and in shop inventories. The straight body and SAE shaft type suit standard in-line connections where angular fittings are not required.

Key Features

• Female swivel design allows rotational positioning during assembly to reduce hose twist and strain
• Straight configuration for in-line hydraulic connections
• 3/4-16 thread size per SAE J1176 standard
• Steel construction for durability in high-pressure hydraulic service
• 7/8-inch hex size for standard wrench installation
• Part of the Eaton Z series with broad hose compatibility

Compatibility

Designed for use with the following Eaton hose series: EC110, EC115, EC118, EC210, EC215, H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, -08), H1812 (-04 thru -20), H190, H190H, and H1981 (-04).

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power system safety. Depressurize and bleed the hydraulic system fully before removing or installing any fittings. Use the correct wrench on the 7/8-inch hex to avoid rounding the fitting body. Follow SAE J1176 assembly guidelines for thread engagement and sealing to ensure leak-free service.
