Eaton 10316H2176 Hazardous Location Limit Switch 1NO-1NC

Product Description

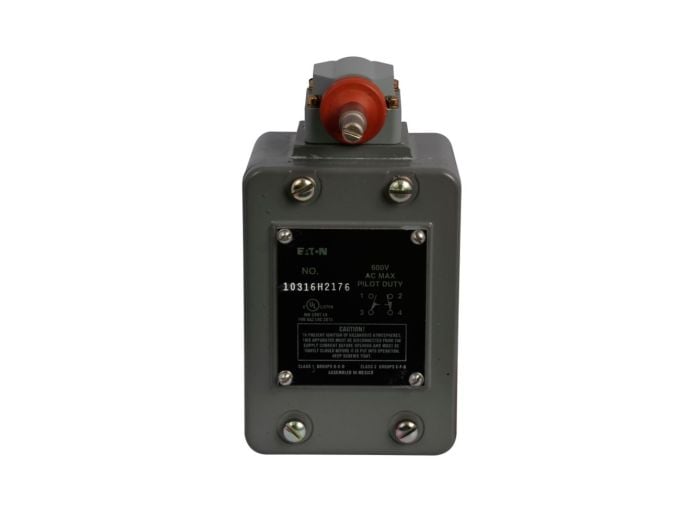

The Eaton 10316H2176 hazardous location limit switch features a die-cast aluminum enclosure and screw terminals. It has a maximum AC current of 10A and a maximum DC current of 0.2A, with a contact configuration of 1NO-1NC. Designed for extreme environmental service in NEMA 7-9 locations, it is suitable for mining, grain storage, and petrochemical applications.

• Die Cast Aluminum enclosure
• Contact Rating: 10A at 600Vac, 0.2A at 125Vdc
• Environmental rating: NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG, NEMA 1, NEMA 4, NEMA 13

Product Highlights

This heavy-duty standard limit switch is ideal for hazardous locations and extreme environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10316H2176

Technical Specifications

• Product Name: Eaton 10316 hazardous location limit switch
• Catalog Number: 10316H2176
• UPC: 782113347738
• Product Length/Depth: 3 in
• Product Height: 5.35 in
• Product Width: 3.08 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Field convertible to CW or CCW only; 1N.O.-1N.C. contacts must be same polarity when both circuits are used. Nylatron levers should be used with explosion-proof limit switches. Call factory for availability of CSA & CE approval status.
• Product Type: Hazardous location limit switch
• Contact Rating: 10 A at 600 VAC, 0.2 A at 125 VDC
• Enclosure material: Die cast aluminum
• Connection Type: Screw Terminal
• Contact configuration: 1 NO-1 NC
• Switch type: Side rotary
• Operating temperature - max: 200 °F
• Operating temperature - min: -20 °F
• Environmental rating: NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG, NEMA 1, NEMA 4, NEMA 13
• Maximum AC current: 10 A
• Maximum DC current: 0.2 A
• IP/NEMA Rating: NEMA 1, NEMA 4
• Length: 3 in
• Material: Die Cast Aluminum
• Mounting Type: Surface
• Operating Temperature: -20 to 200 deg F
• Action: Spring Return
• Actuator: Side Rotary
• Amperage Rating: 10 A AC/0.2 A DC
• Catalog ID: C-H10316H2176
• Contact Configuration: 1NO/1NC SPDT
• Enclosure Type: NEMA 1/4/3/7/9
• Series: 10316
• Type: Type CX Heavy Duty Standard
• Voltage Rating: 600 VAC/250 VDC
• Application: Hazardous Locations, Mining, Grain Storage, Forest Products, Petrochemical, Pharmaceutical, Waste and Sewage Management Applications
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, CSA Certified, CE Marked
• Component: Limit Switch
• (Instrument-Sensor) NEMA Protection: NEMA 9
• Manufacturer: Eaton
• Alternate Mfr Part Number: 10316H2176
• Brand: Eaton - Cutler Hammer
• Product Series: 10316
• Family Series: Eaton Limit Switches, 10316 Series
• Actuator Type: Rotary
• Contacts: 1NO/1NC
• Contact Rating @ 125 VDC: 0.2 A
• Net Weight: 2.4 lbs
• Gross Weight: 2.4 lbs
