Eaton 10250TS75 Pushbutton Legend Plate Standard, Square

Product Description

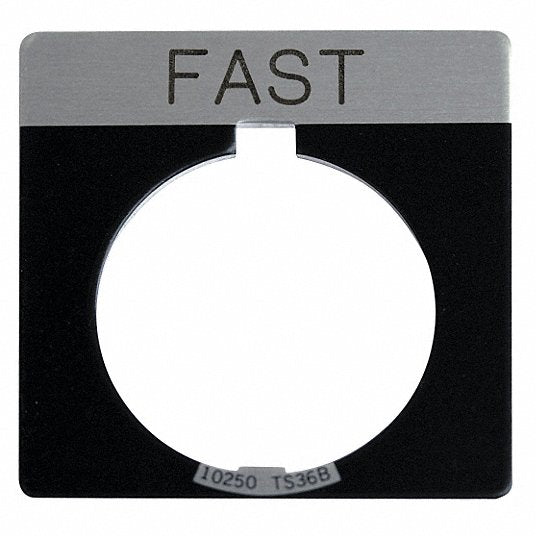

The Eaton 10250TS75 is a pushbutton legend plate designed for use with the 10250T series, pushbutton operators, and indicating lights. It features a square shape with a black field color and a "FAST" legend with white lettering. Constructed from aluminum, this legend plate ensures durability and clear communication of the pushbutton's function.

• Used with 10250T series, pushbutton operators and indicating lights
• Features a square shape with a black field color
• Constructed from aluminum

Product Highlights

The Eaton 10250TS75 legend plate provides clear and durable labeling for pushbuttons in various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TS75
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton legend plate
• Catalog Number: 10250TS75
• UPC: 782113360805
• Product Length/Depth: 1.7 in
• Product Height: 0.1 in
• Product Width: 1.7 in
• Catalog Notes: Has a satin aluminum field. Color is on lower portion.
• Product Type: Pushbutton accessory
• Used with: 10250T series, pushbutton operators and indicating lights
• Series: 10250T
• Field color: Black
• Legend: FAST
• Letter size: 3/16 in high
• Lettering color: White
• Size: Standard, square
• Mounting Type: Panel
• Approval: UL, CSA, CE
• Length (in): 1.7
• Width (in): 1.7
• Height (in): 0.1
• For Use With: 10250T Series, Pushbutton Operators and Indicating Lights
• Alternate Mfr Part Number: 10250TS75
• Dimensions: 0.01 in W X 1.70 in L
• Manufacturer Part Number: 10250TS75
• UPC Code: 782113360805
• Overall Height: 1-3/4 in
• Overall Width: 1-3/4 in
• Panel Mounting Hole Diameter: 30 mm
• Shape: Square
• UNSPSC: 39121512
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Marking
• Functions: Square legend plate
• Technical compatibility with: 10250 series
• Manufacturer product status: Commercialized
• Marking: "FAST"
• Diameter: 30 mm
• Operator Size: 30 mm
• Compatible Panel Cutout Diameter: 30 mm
• Item: Legend Plate
• Material: Aluminum
• Legend Color: White
• Background Color: Black
• Keyway Type: Notch
• Language: English
• Compatible with Series: 10250T
• Country of Origin: Dominican Republic
