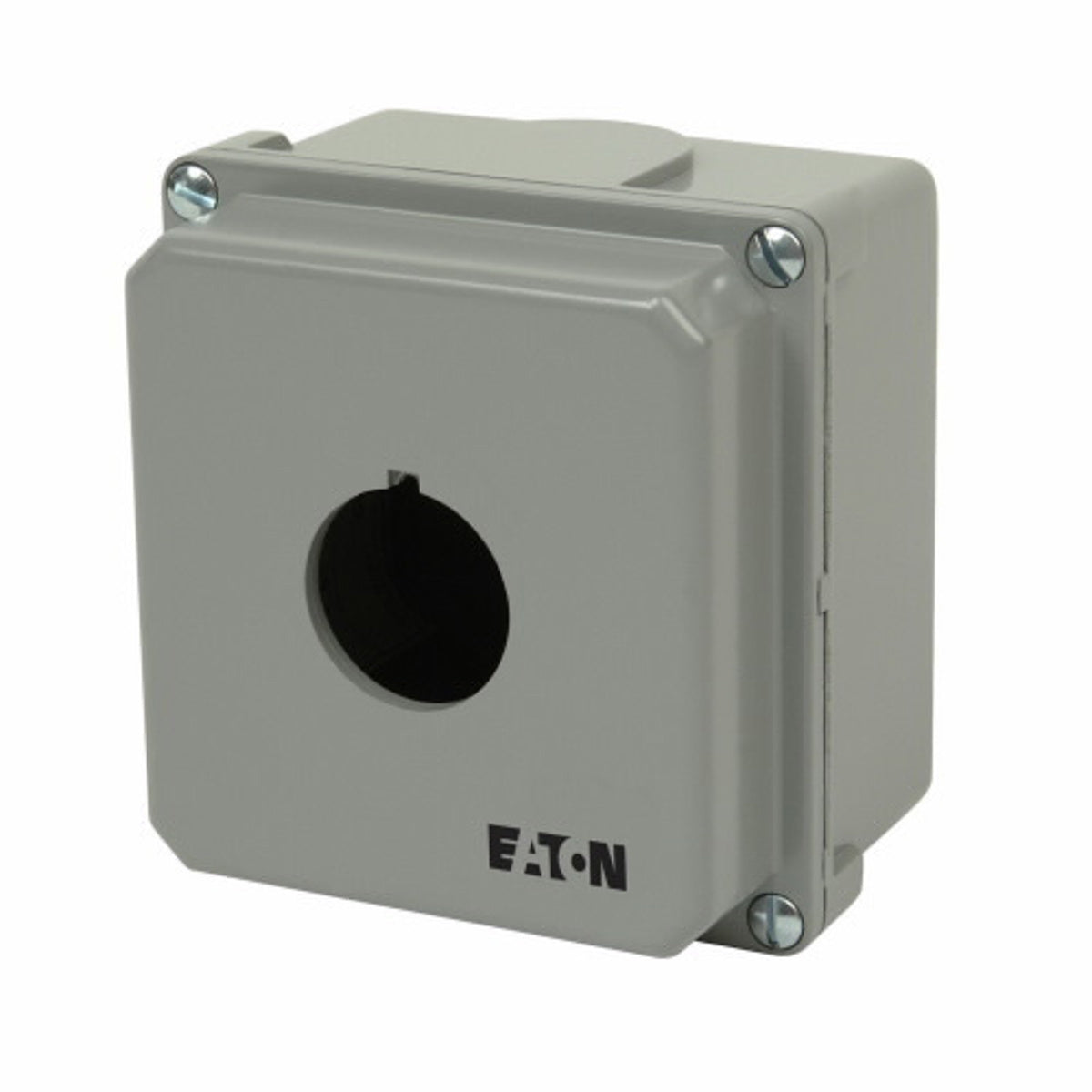

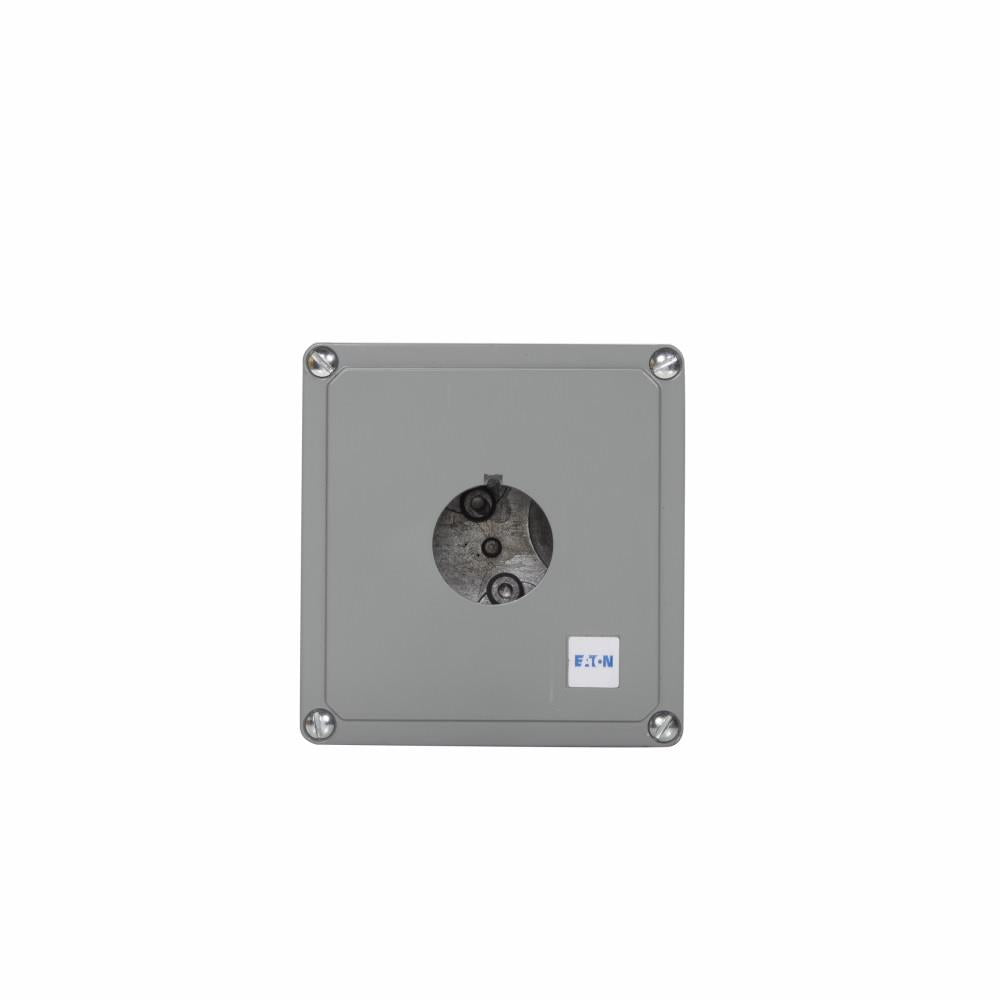

Eaton 10250TN1 1-Element Die-Cast Pushbutton Enclosure (30.5 mm)

Product Description

The Eaton 10250TN1 is a single-element, surface-mount pushbutton enclosure constructed of zinc die cast that provides NEMA 4, 4X, 12 and 13 protection for pilot devices. The enclosure accepts a 30.5 mm operator and measures approximately 5-3/4 in x 4 in x 3-3/4 in with a lift-off cover, drainage holes and reliability nibs to reduce dry-circuit and fine-dust contact issues. It is UL listed, CSA certified and CE marked for electrical assemblies and control panels.

• Zinc die-cast construction with die-cast bus; NEMA 4/4X/12/13 watertight and oiltight rating
• Single 30.5 mm hole, surface mount; dimensions about 5-3/4 in (L) x 4 in (W) x 3-3/4 in (D); weight 1.98 lb
• Features lift-off cover, drainage holes and reliability nibs; certifications include UL Listed, CSA and CE; RoHS and ARRA/Buy American Act compliant

Product Highlights

Single-element, heavy-duty zinc die-cast pushbutton enclosure for surface mounting; 30.5 mm opening; NEMA 4/4X/12/13 rated; UL, CSA and CE certified.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TN1
• Country of Origin: United States
