Eaton 10250TJ63 Push Pull Operator Button 65 MM

Product Description

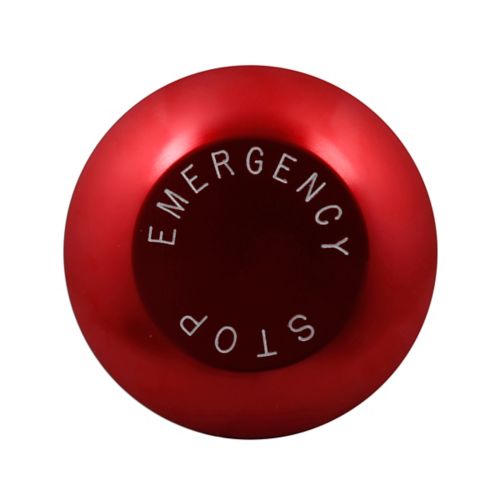

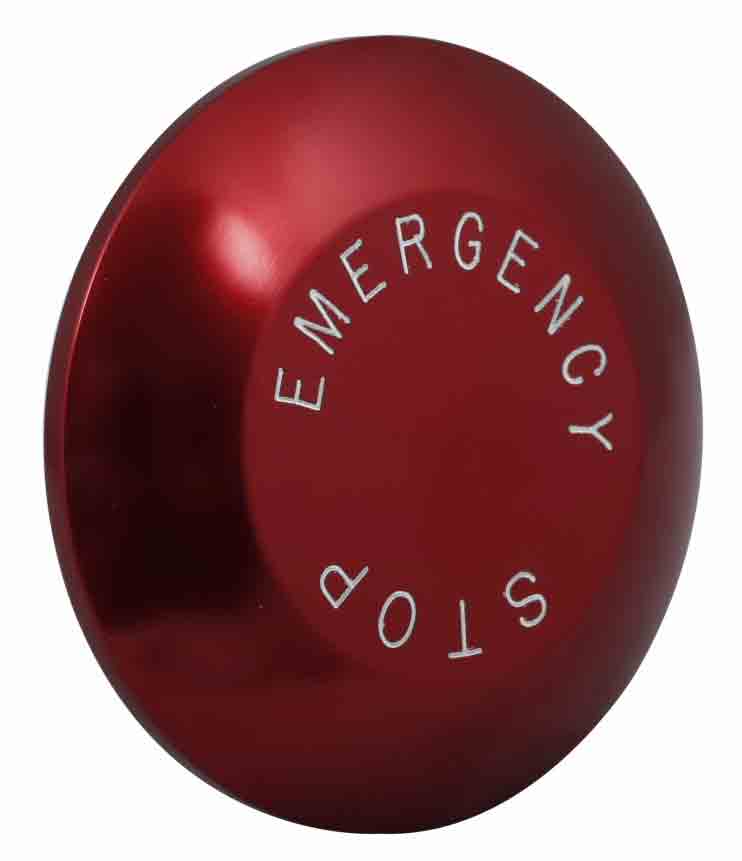

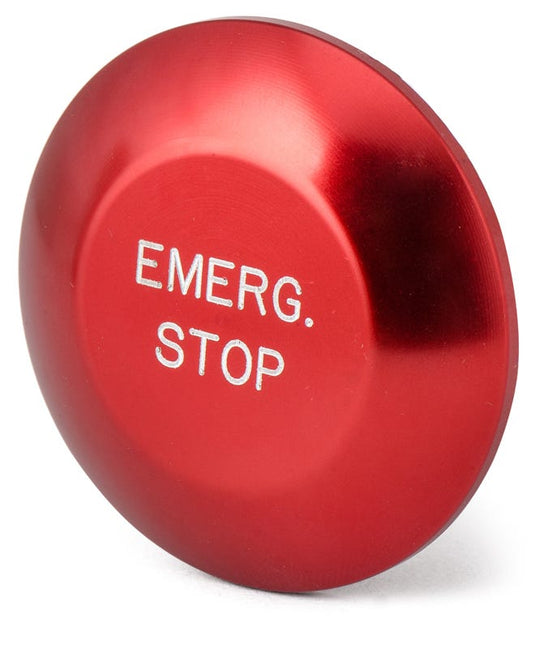

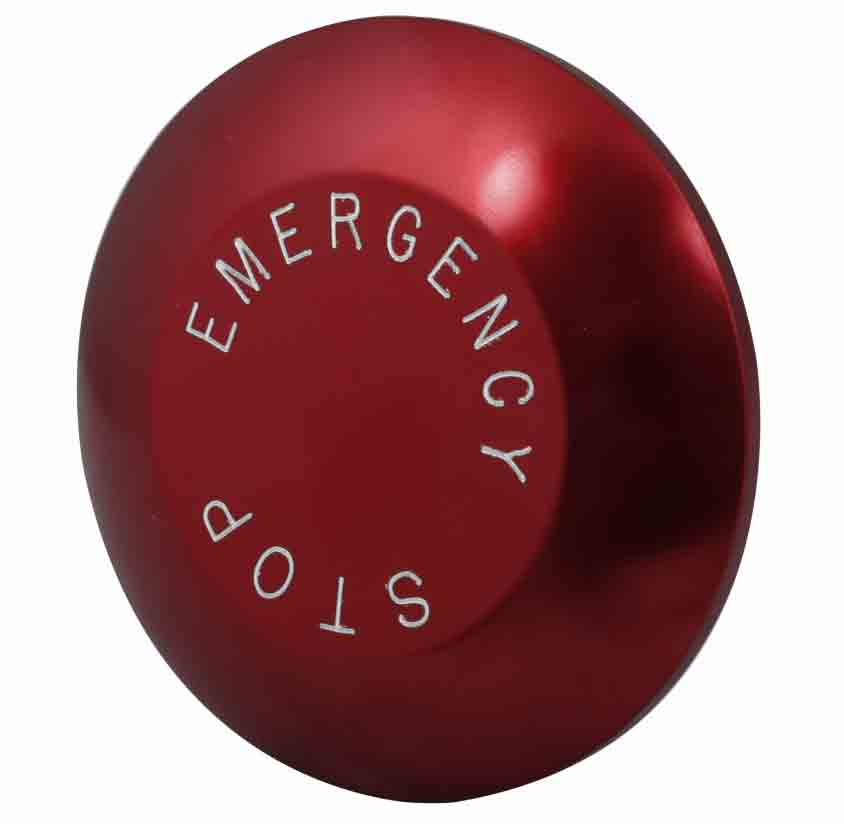

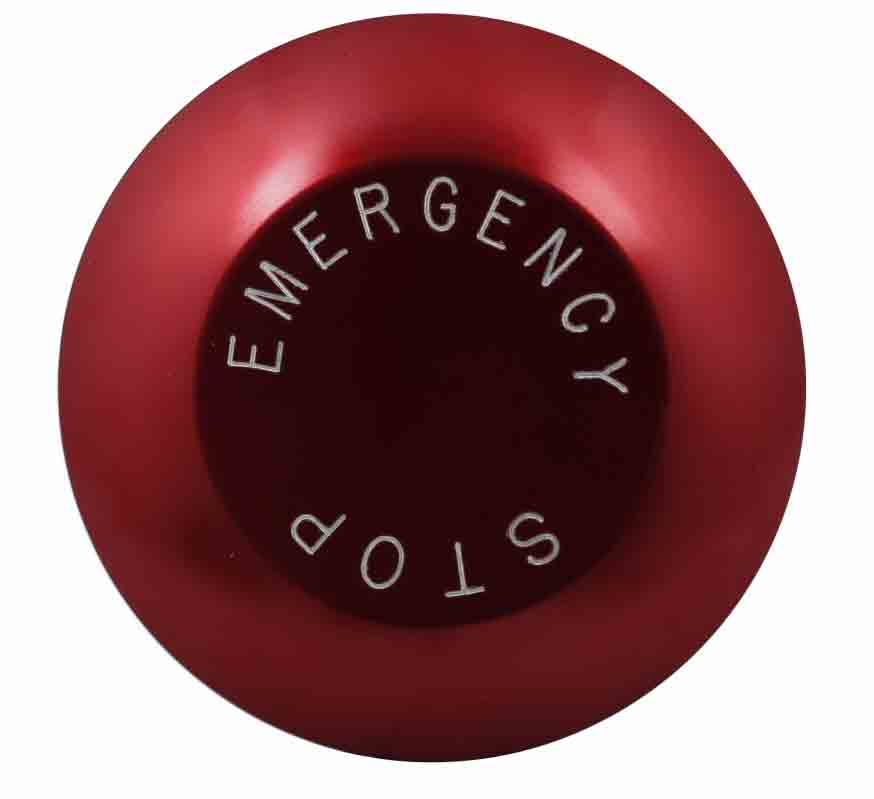

The EATON 10250TJ63 is a push-pull operator button featuring a heavy-duty rating. With a jumbo mushroom head actuator, it is designed for non-illuminated push-pull operation. The button is made from anodized aluminum and features an emergency stop legend. Suitable for use in various industrial and commercial applications.

• Heavy duty rating
• Jumbo mushroom head actuator type

Product Highlights

The EATON 10250TJ63 push-pull operator button is ideal for heavy-duty applications requiring reliable emergency stop functionality.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TJ63

Technical Specifications

• Cap Style/Shape: Jumbo Mushroom 65 MM
• Color: Red
• Enclosure: NEMA 3/3R/4/4X/12/13
• Legend: Emergency Stop
• Manufacturer Name: Eaton
• Material: Anodized Aluminum
• PDW ID: ECL127951
• Product UPC: 782113143620
• Size REF: 30.5 MM
• Type: Button
• Used On: 2/3 Position Non-Illuminated Push Pull Switch
• Product Name: Eaton 10250T pushbutton button
• Catalog Number: 10250TJ63
• Product Length/Depth: 2.4 in
• Product Height: 3.3 in
• Product Width: 2.1 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Not suitable for use in ultraviolet light applications
• Product Type: Pushbutton accessory
• Used with: Push-pull, non-illuminated
• Series: 10250T
• Actuator: Jumbo mushroom head
• Product category: Button
• Size: 65 mm
• Part Number: 10250TJ63
• Manufacturer: Eaton Cutler-Hammer
• Family: 10250T Series
• Category: Motor Control Parts And Accessories
• Dimensions (HxWxD): 3.3"x2.1"x2.4"
• Brand: Eaton
• Approval: CE, UL, CSA
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Length (in): 2.4
• Width (in): 2.1
• Height (in): 3.3
• For Use With: Non-Illuminated Push-Pull Operator
• Duty Rating: Heavy-Duty
• Actuator Type: Jumbo Mushroom Head
• Mpn: 10250TJ63
• Upc: 782113143620
• Gtin: 782113143620
• Shape: Round
• UNSPSC: 39122221
• Application: For use with non-illuminated push-pull devices and automation and logic control equipment applications
• Accessory Type: Buttons
