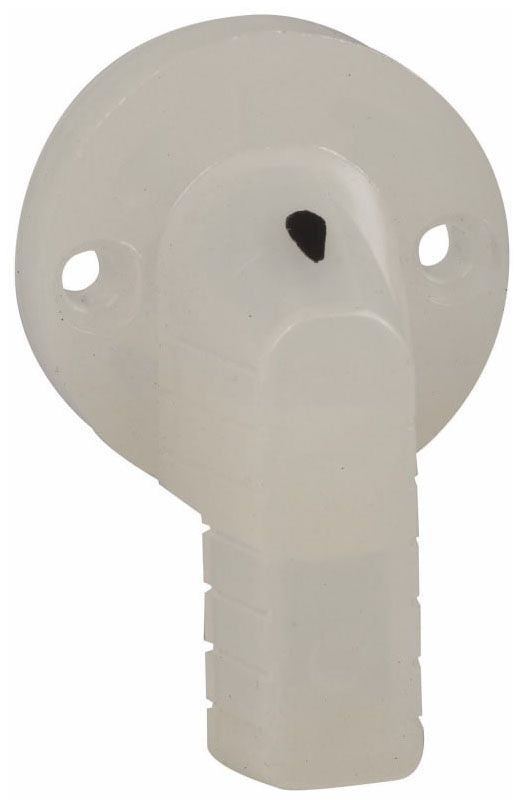

Eaton 10250TFW Pushbutton Operator

Product Description

The EATON 10250TFW is a pushbutton operator designed for use in industrial and commercial control panel applications. Pushbutton operators serve as the human interface component mounted to an enclosure door or panel face, allowing operators to send discrete control signals to downstream electrical equipment. This unit is part of the 10250T series of heavy-duty 30mm control devices, built for demanding environments where reliable operator control is required. Licensed electricians and industrial control panel builders are the primary installers of this type of device.

The 10250TFW is suited for use in industrial control panels, motor control centers, and commercial electrical enclosures. It is typically installed in 30mm cutout mounting holes on NEMA-rated enclosures. Applications include machine control stations, conveyor systems, pump control panels, and other process control environments where momentary or maintained pushbutton switching is required.

Key Features

• 30mm heavy-duty pushbutton operator designed for industrial and commercial control applications
• Part of the EATON 10250T series of panel-mount control devices
• Designed for standard 30mm panel cutout installation
• Compact and lightweight at 0.01 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement or direct-install pushbutton operator for industrial control panels accepting 30mm control devices. Consult EATON 10250T series documentation for contact block and legend plate compatibility.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines and applicable local codes. De-energize the control panel and verify zero voltage with a meter before beginning installation or removal of any operator component. Pushbutton operators typically require a standard 30mm panel cutout and secure with a retaining nut torqued by hand or with a strap wrench per manufacturer guidance. Do not overtighten the mounting hardware, as this can crack the operator body or distort the enclosure knockout.

Technical Specifications

• Weight: 0.01 pounds
• UPC: 78211334687

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TFW
