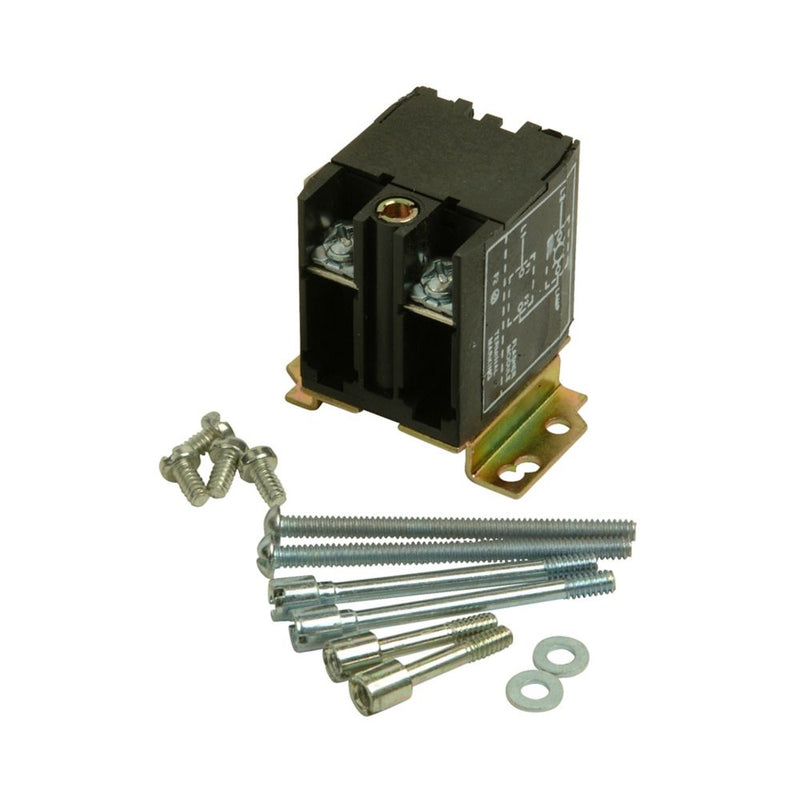

Eaton 10250TFL1 Pushbutton Flasher Module 120V

Product Description

The Eaton 10250TFL1 is a heavy-duty pushbutton flasher module designed for use with all illuminated operators. Constructed with robust zinc die-casting, this 30.5 mm module ensures durability. It features reliability nibs enhancing contact performance even in dry circuit and fine dust conditions. Drainage holes further safeguard against liquid accumulation, making it suitable for use in freezing temperatures.

• Heavy-duty construction with zinc die-cast material
• Compatible with all illuminated operators
• Rated for 120VAC and 5A

Product Highlights

The Eaton 10250TFL1 flasher module is ideal for applications requiring consistent flasher operation and durability in demanding industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TFL1
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton flasher module
• Catalog Number: 10250TFL1
• UPC: 782113458755
• Product Length/Depth: 2 in
• Product Height: 2.2 in
• Product Width: 1.9 in
• Compliances: CE Marked
• Certifications: UL Listed,CSA Certified
• Product Type: Pushbutton accessory
• Used with: All illuminated operators
• Type: 30.5 mm, Heavy-Duty
• Series: 10250T
• Product category: Flasher module
• Manufacturer: Eaton
• Brand: Cutler Hammer
• Category: Automation
• Item Subcategory: Pilot Device/Push Button
• Current Rating: 5A
• Voltage Rating: 120VAC
• Size: 30.5 mm
• Mounting: Compatible with all illuminated operators
• Construction: Heavy-duty zinc die-cast
• Finish: Durable chrome
• Component: Accessories
• (Switching-Indication) Size: 30.5 mm
• Sub Component: Flasher Module
