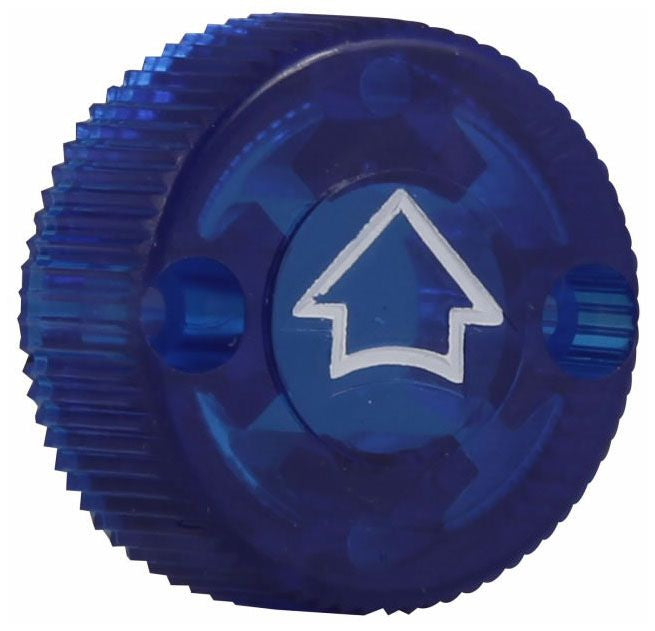

Eaton 10250TEL Indicating Light Unit

Product Description

The EATON 10250TEL is an indicating light unit used in industrial and commercial control panel applications. It provides a visual status indication for electrical control circuits, allowing technicians and electricians to confirm system states at a glance. The unit is compact and lightweight at 0.05 pounds, making it straightforward to integrate into existing panel assemblies. Licensed electricians and control panel builders are the primary installers for this type of device.

The 10250TEL fits into standard control station and operator interface enclosures common in industrial facilities, manufacturing environments, and commercial electrical installations. It is typically used alongside pushbutton stations and selector switches as part of a coordinated operator control assembly. The light unit provides a reliable, low-profile indication point on control panels where clear visual feedback is required.

Key Features

• Compact indicating light unit designed for control panel and operator station integration
• Lightweight construction at 0.05 pounds for easy panel assembly
• Designed for visual status indication in industrial and commercial control circuits
• Compatible with standard 10250T-series operator control station hardware

Compatibility

Designed as an OEM-style indicating light unit for use with standard industrial operator control stations and control panel assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the control panel and verify zero voltage with a meter before beginning any work. Ensure the mounting cutout and operator station body are compatible with the 10250T-series form factor before installation. Do not exceed the rated voltage or current specifications for the indicating light circuit.

Technical Specifications

• Weight: 0.05 pounds
• UPC: 78211322386

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TEL
