Eaton 10250tc7n pushbutton lens

Product Description

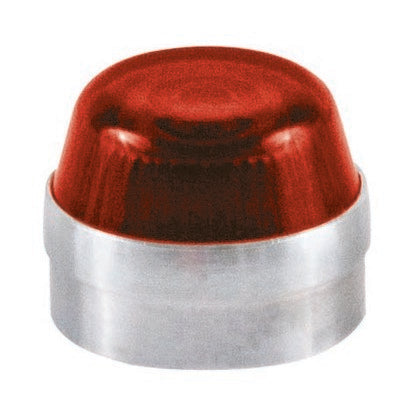

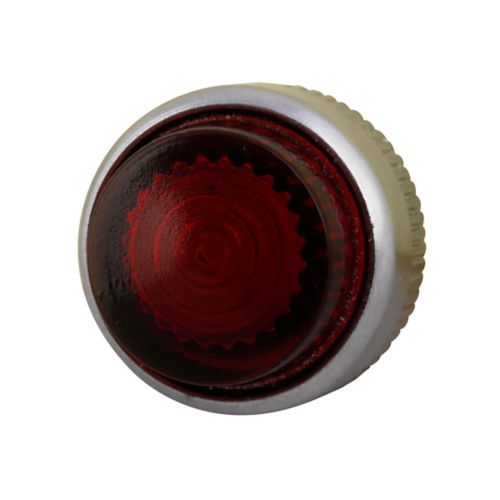

The Eaton 10250TC7N is a pushbutton lens suitable for use with indicating lights or master test pushbuttons. This 30.5 mm heavy-duty watertight/oiltight lens features a red actuator and is constructed from glass with a blank legend. It is part of the 10250T series.

• Used with indicating light or master test pushbutton
• 30.5 mm, Heavy-Duty Watertight/Oiltight
• Standard screw terminal connection

Product Highlights

The Eaton 10250TC7N pushbutton lens is ideal for various applications. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC7N
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton 10250T pushbutton lens
• Catalog Number: 10250TC7N
• UPC: 782113148083
• Product Length/Depth: 1.2 in
• Product Height: 1 in
• Product Width: 1.2 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton accessory
• Used with: Indicating light or master test pushbutton
• Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
• Actuator color: Red
• Bus material: Glass
• Series: 10250T
• Legend: Blank
• Product category: Lens
• Color: Red
• Material: Glass
• Brand: Eaton
• MPN: 10250TC7N
• Lens Shape: Round
• Product Range: 10250T Series
• Switch Lens Colour: Red
• SVHC: No SVHC (17-Dec-2015)
• Mounting Type: Panel
• Approval: CE, UL, CSA
• Terminal Connection: Standard Screw
• Nema Rating: 1, 2, 3, 3S, 3R, 4, 4X, 12, 13
• Length (in): 1.2
• Width (in): 1.2
• Height (in): 1
• Duty Rating: Heavy Duty
• Body Material: Glass
• Gtin: 00782113148083
