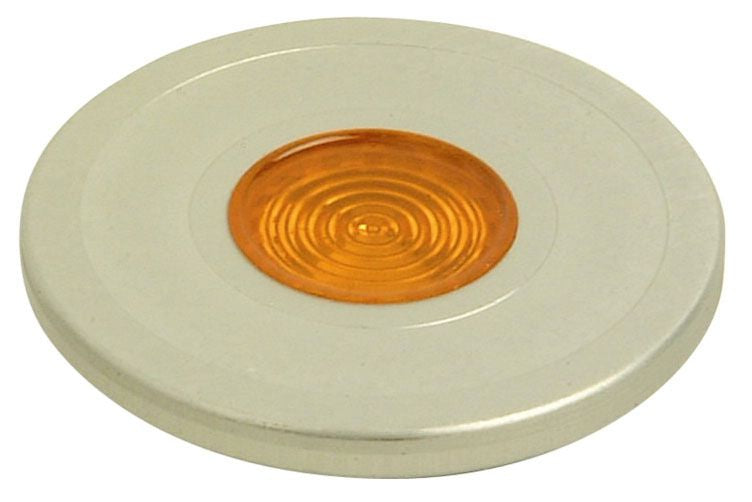

Eaton 10250TC67 Aluminum Pilot Light Lens

Product Description

The EATON 10250TC67 is an aluminum replacement lens for use with 30mm pilot light and indicator light assemblies. This lens component is designed to cover and protect the lamp or LED element within a panel-mount pilot light unit. It is typically installed by electricians and control panel technicians during new panel builds or as a replacement part during maintenance. The aluminum construction provides durability in industrial and commercial control panel environments. At 0.04 pounds, the lens is a lightweight, direct-swap component suited for quick field replacement.

The 10250TC67 lens is suited for use in industrial control panels, machine operator stations, and electrical enclosures where 30mm pilot light assemblies are common. Typical applications include motor control centers, production equipment operator interfaces, and general-purpose control stations in both light industrial and heavy industrial settings. Electricians and panel builders working with 30mm selector switch and pilot light product families will find this lens fits standard operator interface cutouts.

Key Features

• Aluminum lens construction for durability in industrial environments
• Designed for 30mm pilot light and indicator light assemblies
• Lightweight at 0.04 pounds for easy handling and quick replacement
• Compact form factor at 1.6 x 1.6 x 0.5 inches
• Direct replacement lens for panel-mount pilot light units

Compatibility

Designed as an OEM-style replacement lens for 30mm pilot light and indicator assemblies used in industrial control panel applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines. De-energize the control panel and follow proper lockout/tagout procedures before servicing any pilot light assembly. Standard hand tools are typically sufficient for lens removal and replacement. Verify the lens seats fully and securely before returning the panel to service.

Technical Specifications

• Material: Aluminum
• Length: 1.6 inches
• Width: 1.6 inches
• Height: 0.5 inches
• Weight: 0.04 pounds
• UPC: 78211336790

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC67
