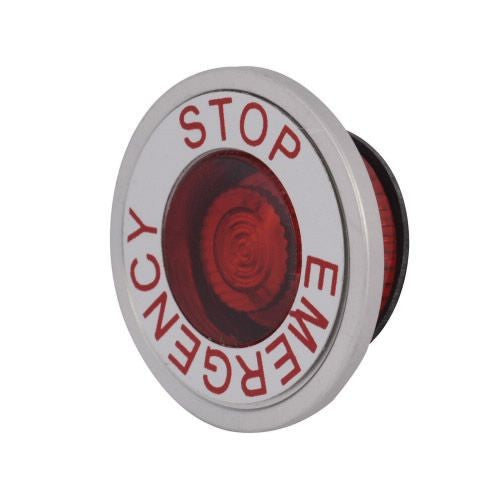

Eaton 10250tc63 pushbutton lens

Product Description

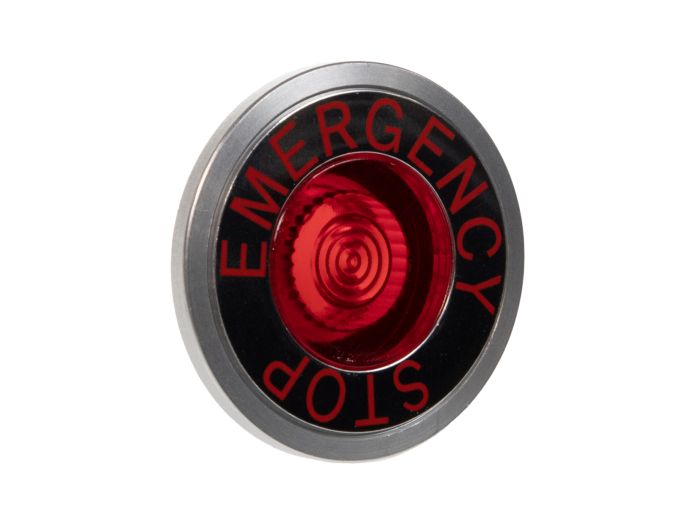

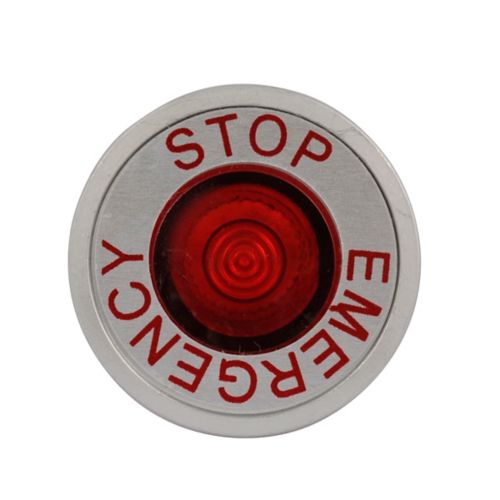

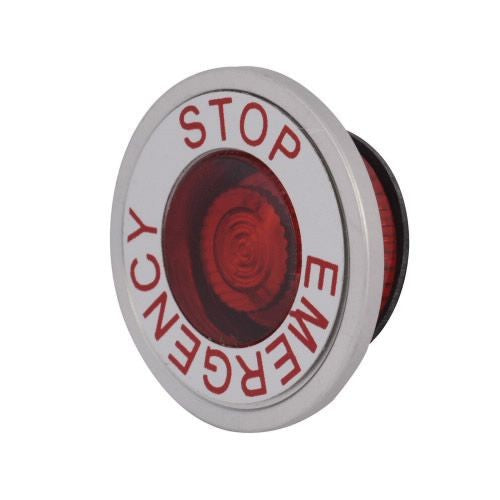

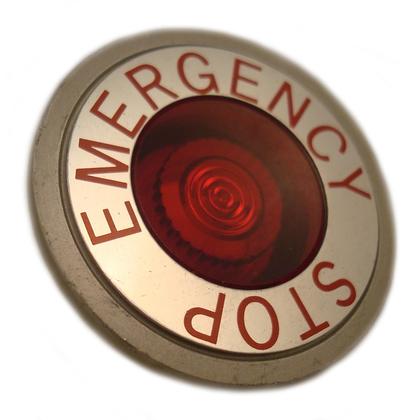

The Eaton 10250TC63 is a pushbutton lens from the 10250T series, designed for illuminated push-pull operators. It features a red actuator and an anodized aluminum, side-lighted ring with an EMERGENCY STOP legend. This heavy-duty, watertight/oiltight lens is suitable for applications requiring reliability and durability.

• 30.5 mm lens type
• Side lighted anodized aluminum ring lens
• Used with push-pull, illuminated button

Product Highlights

Heavy-duty, watertight/oiltight illuminated push-pull operator lens with side-lighted ring and EMERGENCY STOP legend.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC63

Technical Specifications

• Product Name: Eaton 10250T pushbutton lens
• Catalog Number: 10250TC63
• UPC: 782113200637
• Product Length/Depth: 1.6 in
• Product Height: 0.7 in
• Product Width: 1.6 in
• Product Type: Pushbutton accessory
• Used with: Push-pull, illuminated
• Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
• Actuator color: Red
• Bus material: Anodized aluminum
• Series: 10250T
• Legend: EMERGENCY STOP
• Product category: Side-lighted ring
• Material: Aluminum
• NEMA Rating: NEMA 3/3R/4/4X/12/13
• Shape: Round
• Standard & Approvals: CE Certified, UL 508 File No. 131568, CSA C22.2 No. 14 File No. LR68551, EN 60947-5-1, EN 60947-5-5, RoHS Compliant
• Application: For hazardous location
• Size: 1.6 in L x 1.6 in W x 0.7 in H
• Catalog ID: C-H10250TC63
• Brand: Eaton - Cutler Hammer
• For Use With: Illuminated Push-Pull
• Manufacturer Part Number: 10250TC63
• UPC Code: 782113200637
• Diameter: 40 mm
• Duty Rating: Heavy-Duty
• Approval: UL, CSA, CE
• Nema Rating: 1, 2, 3, 3R, 4, 4X, 12, 13
• Length (in): 1.6
• Width (in): 1.6
• Height (in): 0.7
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Net Weight: 0.035 lbs
• Gross Weight: 0.04 lbs
